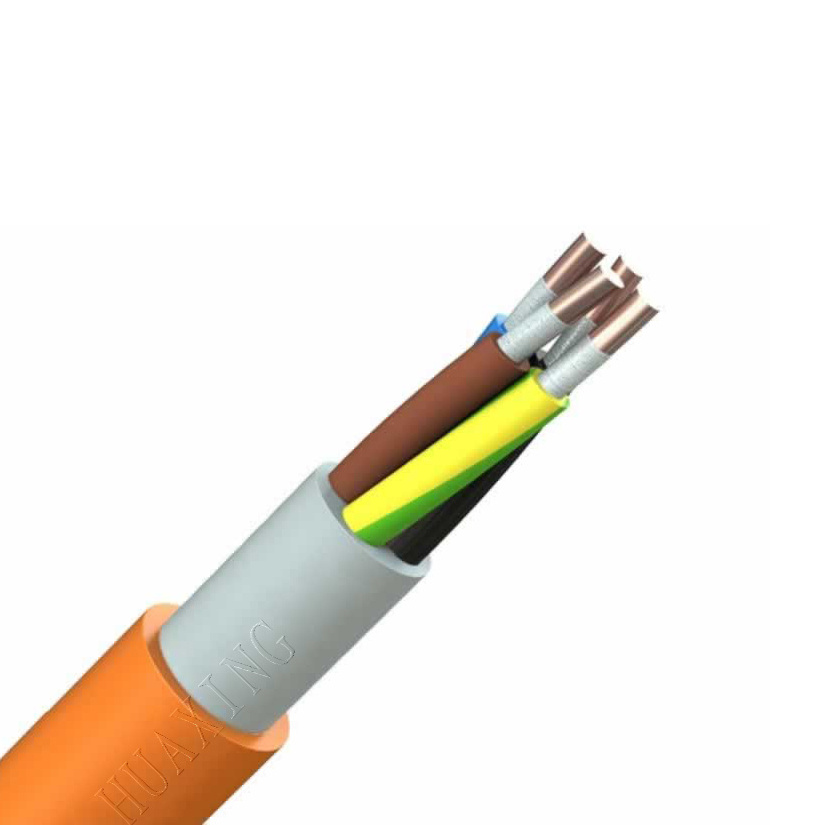

N2XH,N2XH-J,N2XH-O,0.6/1kV solid copper Halogen-free and Flame-resistant Power Cable

Application:

Halogen-free power cables( N2XH ) with enhanced resistance to fire are used mostly in areas where harm to human life or material must be prevented in case of fire such as industrial and public buildings, hotels, subway systems, hospitals etc. These cables are suitable for dry and wet environments as well as for outer application but are not suitable for direct burial into earth or water.

Cable structure:

Solid or stranded Cu core according to DIN VDE 0295 cl. 1 or 2, IEC 60228 cl. 1 or 2
Core insulation of halogen free, cross-linked polyethylene compound
Cores color coded according to DIN VDE 0293-308, green-yellow earth core in the outer layer, from 3 cores above
Cores stranded in layers with optimal lay lenght
For N2XCH version, concentric conductor of Cu tape or Cu wire
Halogen free sheath of thermoplastic polymer compound, color black

Technical data:

Power and control cable according to DIN VDE 0276 part 604
Temperature range during installation from -5°C to +50°C; fixed from -40°C to +90°C
Nominal voltage Uo/U 0,6/1 kV
Test voltage a.c. 4000 V
Minimum bending radius for single core approx. 15 x cable diameter, multicore approx. 12 x cable diameter

Tests:

Flame-retardant to DIN VDE 0482 part 266-2/HD 405.3/BS 4066 PT3/EN 50266-2/IEC 60332-3
Low corrosiveness of combustion gases to DIN VDE 0482 part 267/BS 6425 PT2/EN 50267-2-2/IEC 60754-2
Halogen-free to DIN VDE 0482 part 267/BS 6425 PT1/EN 50267-2-1/IEC 60754-1
Smoke density to DIN VDE 0482 part 268/HD 606/BS 7622 PT1,PT2/EN 50268-1,-2/IEC 61034-1,-2

Color codes N2XH :

2-core cable: blue/brown
3-core cable: brown/black/grey
4-core cable: blue/brown/black/grey
from 7 conductors above, black cores with white numbering

Note:

CE = the product is conformed with the EC Low-Voltage Directive 73/23/EEC.
rm = round conductor stranded
re = round conductor plain
Conforms to RoHS.

Dimensions - Number of cores x cross-section	Design	Construction of the individual keep the handlers safe	The outer diameter	thickness of insulation	shell thickness	Resistance to keep the handlers safe at 20 ° C	Weight Cu	weight of cable
		rated	about	rated	rated	max.		about
N x mm²		n x mm	mm	mm	mm	Ω/km	kg/km	kg/km
1 x 1,5	RE	1 x 1,38	5,4	1,38	0,15	12,10	15,403	43
1 x 4	RE	1 x 2,25	6,4	2,25	0,20	4,61	5,869	75
1 x 16	RM	7 x 1,70	9,1	5,00	0,36	1,15	1,464	202
1 x 25	RM	7 x 2,13	11	6,10	0,48	0,727	0,925	302
1 x 70	RM	19 x 2,17	15	10,10	0,84	0,268	0,341	745
1 x 95	RM	19 x 2,52	17	11,90	0,97	0,193	0,246	986
1 x 185	RM	37 x 2,52	23	16,20	1,72	0,0991	0,126	1888
1 x 300	RM	61 x 2,50	28	20,60	2,34	0,0601	0,077	2945

2 x 1,5	RE	1 x 1,38	9	1,38	0,38	12,10	15,403	120
2 x 2,5	RE	1 x 1,78	10	1,78	0,45	7,41	9,433	154
2 x 16	RM	7 x 1,70	16	5,00	1,06	1,15	1,464	563
2 x 25	RM	7 x 2,13	20	6,10	1,52	0,727	0,925	840
2 x 35	RM	7 x 2,52	22	7,20	1,79	0,524	0,667	1106
2 x 120	RM	37 x 2,03	36	13,00	4,23	0,153	0,195	3343
2 x 300	RM	61 x 2,50	55	20,60	9,39	0,0601	0,077	8072

3 x 1,5	RE	1 x 1,38	9	1,38	0,44	12,10	15,403	135
3 x 2,5	RE	1 x 1,78	10	1,78	0,51	7,41	9,433	181
3 x 4	RE	1 x 2,25	11	2,25	0,60	4,61	5,869	242
3 x 10	RE	1 x 3,56	14	3,57	0,83	1,83	2,330	464
3 x 16	RM	7 x 1,70	17	5,00	1,22	1,15	1,464	697
N2XH
3 x 35	RM	7 x 2,52	23	7,20	2,08	0,524	0,667	1393
3 x 50	RM	19 x 1,83	26	8,30	2,56	0,387	0,493	1847
3 x 70	RM	19 x 2,17	31	10,10	3,43	0,268	0,341	2666
3 x 95	RM	19 x 2,52	36	11,90	4,17	0,193	0,246	3535
3 x 120	RM	37 x 2,03	38	13,00	4,74	0,153	0,195	4322
3 x 185	RM	37 x 2,52	48	16,20	7,40	0,0991	0,126	6742
3 x 300	RM	61 x 2,50	59	20,60	10,79	0,0601	0,077	10522

4 x 1,5	RE	1 x 1,38	10	1,38	0,52	12,10	15,403	163
4 x 2,5	RE	1 x 1,78	11	1,78	0,60	7,41	9,433	214
4 x 10	RE	1 x 3,56	16	3,57	1,03	1,83	2,330	586
4 x 16	RM	7 x 1,70	19	5,00	1,50	1,15	1,464	874
4 x 35	RM	7 x 2,52	26	7,20	2,57	0,524	0,667	1777
4 x 50	RM	19 x 1,83	29	8,30	3,15	0,387	0,493	2343
4 x 120	RM	37 x 2,03	43	13,00	5,98	0,153	0,195	5558
4 x 185	RM	37 x 2,52	53	16,20	9,35	0,0991	0,126	8657
4 x 240	RM	61 x 2,24	60	18,80	11,54	0,0754	0,096	11385
4 x 300	RM	61 x 2,50	65	20,60	13,44	0,0601	0,077	13539
N2XH
5 x 1,5	RE	1 x 1,38	11	1,38	0,62	12,10	15,403	193
5 x 4	RE	1 x 2,25	13	2,25	0,85	4,61	5,869	352
5 x 6	RE	1 x 2,76	15	2,76	0,99	3,08	3,921	475
5 x 16	RM	7 x 1,70	21	5,00	1,87	1,15	1,464	1081
5 x 25	RM	7 x 2,13	26	6,10	2,61	0,727	0,925	1631
5 x 50	RM	19 x 1,83	33	8,30	3,89	0,387	0,493	2915
