Quick Details
-
Brand Name:
-
Duling
-
Model Number:
-
DLF50P-3A
-
Operating Temperature:
-
-25℃~+120℃
-
Product name:
-
Flow switch
-
Ambient temp.:
-
-20℃~+50℃
-
Max. liquid pressure:
-
1.5MPa
-
Ingress protection:
-
IP55
-
Material:
-
Stainless steel
-
Crust Material:
-
Plastic
-
Non-inductive current:
-
AC110V-16A/AC220V-16A
-
Inductive current(full load):
-
AC110V-16A/AC220V-8A
-
Inductive current(starting):
-
AC110V-96A/AC220V-48A
-
Connection:
-
3/4"14NPT
-
Certification:
-
CE/ROHS
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1.5MPa
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Duling
-
Model Number:
-
DLF50P-3A
-
Operating Temperature:
-
-25℃~+120℃
-
Product name:
-
Flow switch
-
Ambient temp.:
-
-20℃~+50℃
-
Max. liquid pressure:
-
1.5MPa
-
Ingress protection:
-
IP55
-
Material:
-
Stainless steel
-
Crust Material:
-
Plastic
-
Non-inductive current:
-
AC110V-16A/AC220V-16A
-
Inductive current(full load):
-
AC110V-16A/AC220V-8A
-
Inductive current(starting):
-
AC110V-96A/AC220V-48A
-
Connection:
-
3/4"14NPT
-
Certification:
-
CE/ROHS

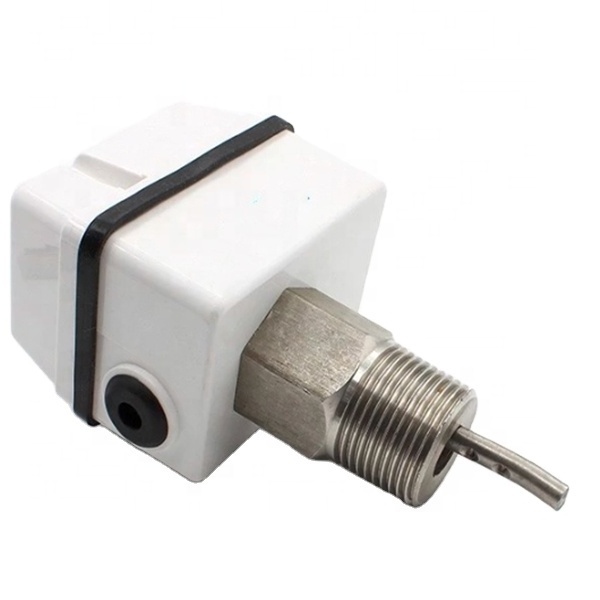

Manufacturer supply paddle flow switch with good service
DLF series flow switches are used in measuring and controlling the flow of the liquid in the pipe,such as water, alcohol, etc.,as well as in the places where it needs chain effect or cutout protection.
DLF series flow switches have SPDT switch,full-sealing structure as its shell,and stainless steel as its inside components, which can assure its in any conditions.
DLF-A series flow switches flow switches are used for caustic fluid liquid,the materials of LFSF-A in contact with the medium is stainless steel.
Approvals:CE(Europe),GIC
Product details
| Product name | flow switch |
| Ambient temp. | -20℃~+50℃ |
| Max. liquid pressure | 1.5MPa |
| Ingress protection | IP55 |
| Material | Brass |
| Crust Material | Plastic |
| Non-inductive current | AC110V-16A/AC220V-16A |
| Inductive current(full load) | AC110V-16A/AC220V-8A |
| Inductive current(starting) | AC110V-96A/AC220V-48A |
| Application | Water flow switch |
| Connection | 3/4"14NPT |
PACKAGE:
One pc in a box .
Packed in carton box or customized.
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
