Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
1000 kg
-
Dimension(L*W*H):
-
6880*2375*3150mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
GR1003 GR100 New 100hp Mini Motor Grader with 3048mm blade
-
Engine Model:
-
4BT3.9 engine,
-
Rated Power:
-
75kw
-
Operating weight:
-
7000kg
-
Maximum lift above ground:
-
300mm
-
Maximum depth of cutting:
-
350mm
-
Maximum blade position angle:
-
45°
-
Moldboard width X height:
-
3048*500mm
Quick Details
-
Forward Speed(km/h):
-
39
-
Engine Brand:
-
Other
-
Reverse Speed(km/h):
-
25
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
1000 kg
-
Dimension(L*W*H):
-
6880*2375*3150mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
GR1003 GR100 New 100hp Mini Motor Grader with 3048mm blade
-
Engine Model:
-
4BT3.9 engine,
-
Rated Power:
-
75kw
-
Operating weight:
-
7000kg
-
Maximum lift above ground:
-
300mm
-
Maximum depth of cutting:
-
350mm
-
Maximum blade position angle:
-
45°
-
Moldboard width X height:
-
3048*500mm

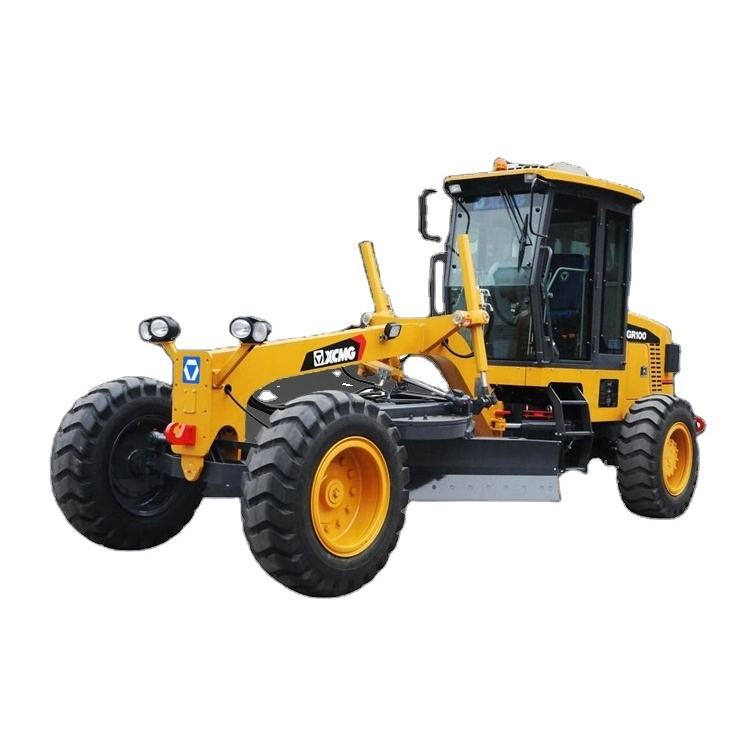

GR1003 GR100 New 100hp Mini Motor Grader with 3048mm blade
Main parameters:
Operating weight : 7 tons ,
Moldboard : 3048×500mm ,
Detailed configuration
* 4BT3.9 engine,
* d riving axle ,
* air conditioner driving cabin ,
* Imported differential mechanism .
Advantages
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts . Great working performance .
Optional parts
* Front mouldboard ,
* Rear scarifier ,
* S hovel blade
|
Engine model |
4BT3.9 |
|
Rated power/speed |
75/2400kw/rpm |
|
Dimension(LxWxH) |
6880×2375×3150mm |
|
Operating weight(Standard) |
7000kg |
|
Performance specification |
|
|
Travelling speed ,forward |
5, 10 , 20 , 39km/h |
|
Travelling speed ,reverse |
8, 25km/h |
|
Tractive force(f=0.75) |
41.6KN |
|
Max. gradeability |
20% |
|
Tire inflation pressure |
350KPa |
|
Working hydraulic pressure |
16MPa |
|
Transmission pressure |
1.3~ 1.8MPa |
|
Operating specification |
|
|
Max. steering angle of front wheels |
±50° |
|
Max. lean angle of front wheels |
17° |
|
Max. oscillation angle of front axle |
±15° |
|
Max. oscillation angle of balance box |
|
|
Frame articulation angle |
±27° |
|
Min. turning radius using articulation |
5.9m |
|
B l ade |
|
|
Maximum lift above ground |
300mm |
|
Maximum depth of cutting |
350mm |
|
Maximum blade position angle |
45° |
|
Blade cutting angle |
28°—70° |
|
Circle reversing rotation |
120° |
|
Moldboard width X height |
3048×500mm |
