Quick Details
-
Color Temperature(CCT):
-
2700K 3000K 4000K 6000K
-
CRI (Ra>):
-
80
-
Lamp Luminous Efficiency(lm/w):
-
80-100
-
Lamp Luminous Flux(lm):
-
800-1000
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-20 - 60
-
Product Weight（kg）:
-
0.05
-
LED Type:
-
COB Chip
-
LED Quantity:
-
480LEDs/m
-
PCB Width:
-
8mm
-
Cut length:
-
25mm
-
Package:
-
5m/reel
-
Dimension:
-
5000*8mm*2oZ
-
Beam Angle:
-
180 Degree
-
Color:
-
2700K 3000K 4000K 6500K
-
Control Method:
-
Remote+APP+online Button
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Raymates
-
Model Number:
-
RM-COBW480-8V12
-
Color Temperature(CCT):
-
2700K 3000K 4000K 6000K
-
CRI (Ra>):
-
80
-
Lamp Luminous Efficiency(lm/w):
-
80-100
-
Lamp Luminous Flux(lm):
-
800-1000
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-20 - 60
-
Product Weight（kg）:
-
0.05
-
LED Type:
-
COB Chip
-
LED Quantity:
-
480LEDs/m
-
PCB Width:
-
8mm
-
Cut length:
-
25mm
-
Package:
-
5m/reel
-
Dimension:
-
5000*8mm*2oZ
-
Beam Angle:
-
180 Degree
-
Color:
-
2700K 3000K 4000K 6500K
-
Control Method:
-
Remote+APP+online Button
Product parameters
|
Model No.
|
RM-COBW480-8V24L
|
|
LED Type
|
COB
|
|
LEDs Qty
|
480LEDs/m
|
|
Voltage
|
12V/24Vdc
|
|
Color Temperature
|
2700K/3000K/4000K/6500K
|
|
Wattage
|
10W/M
|
|
CRI
|
>90
|
|
Beam Angle
|
180
|
|
Waterproof Level
|
IP20/IP65/IP67/IP68
|
|
Dimension
|
W8*L5000MM(5M/roll)
|
|
Certification
|
CE,ROHS,TUV,ETL
|
|
Warranty
|
3years
|
|
Place of Origin
|
Shenzhen,China
|

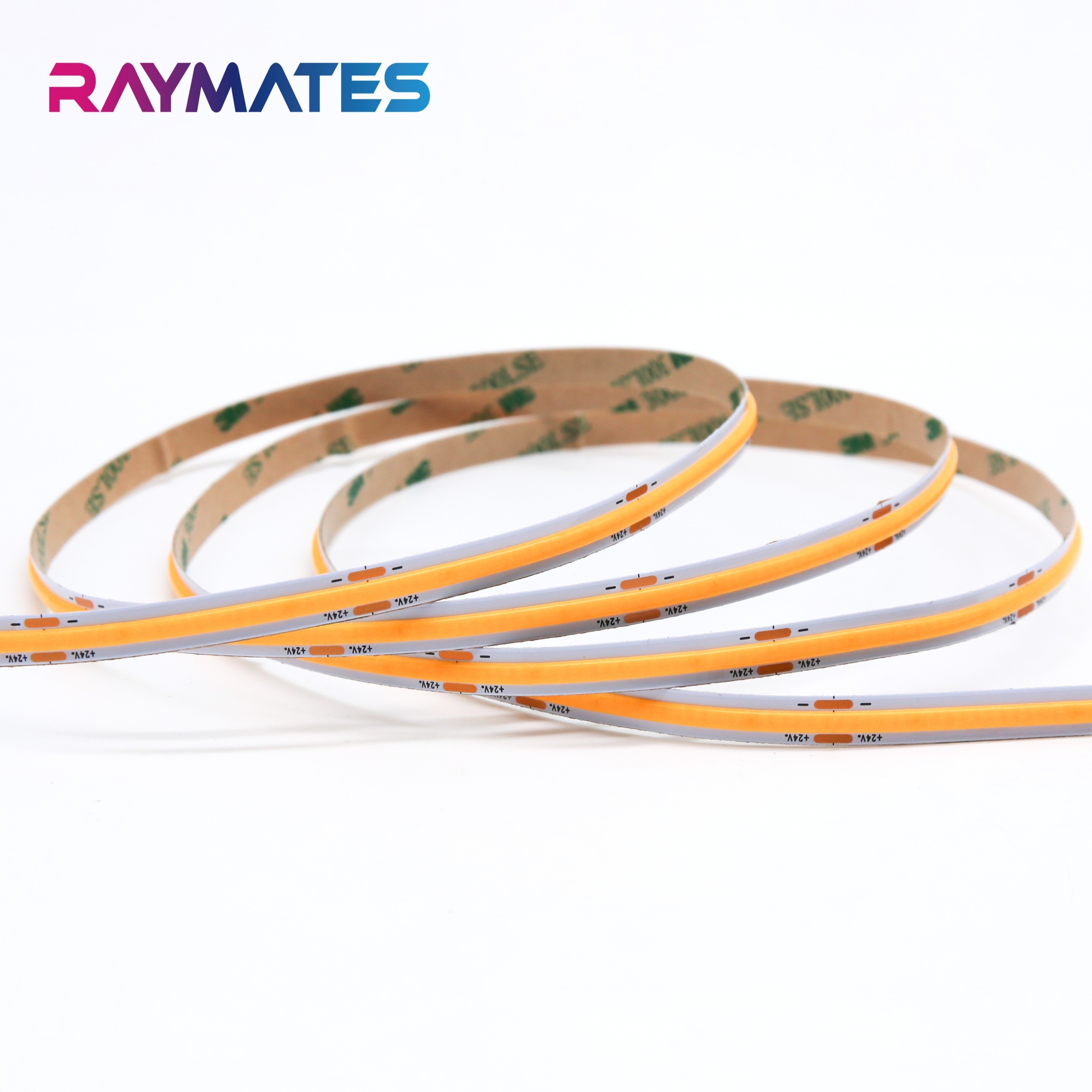

COB light strip definition
The LED COB Strip's full name: Chip-On-Board, which is a production technology the low-power chips are directly encapsulated on
the PCB board. Fastest heat dissipation.
The Traditional SMD LED Strip is made of chips on the frame and made into SMD. Then put the LEDs on the PCB board. COB tape light
saves lots of costs and space on the PCB. For example, SMD 2110 strip light can hold a maximum of 700 LEDs per meter. However, the
COB led strip can hold 1056 chips or more. And because the cost of mounting the Chip on the frame is saved, the price of the COB
led strip is much Cheaper than the same number of led strips.
the PCB board. Fastest heat dissipation.
The Traditional SMD LED Strip is made of chips on the frame and made into SMD. Then put the LEDs on the PCB board. COB tape light
saves lots of costs and space on the PCB. For example, SMD 2110 strip light can hold a maximum of 700 LEDs per meter. However, the
COB led strip can hold 1056 chips or more. And because the cost of mounting the Chip on the frame is saved, the price of the COB
led strip is much Cheaper than the same number of led strips.
Advantages
1, Flip-chip, new technology against traditional strip.
2, High density LEDs, no darkness.
3, Beam angle 180°, homogeneous illumination.
4, Extremely flexible, bending diameter >10mm.
5, Excellent heat dissipation.
2, High density LEDs, no darkness.
3, Beam angle 180°, homogeneous illumination.
4, Extremely flexible, bending diameter >10mm.
5, Excellent heat dissipation.
