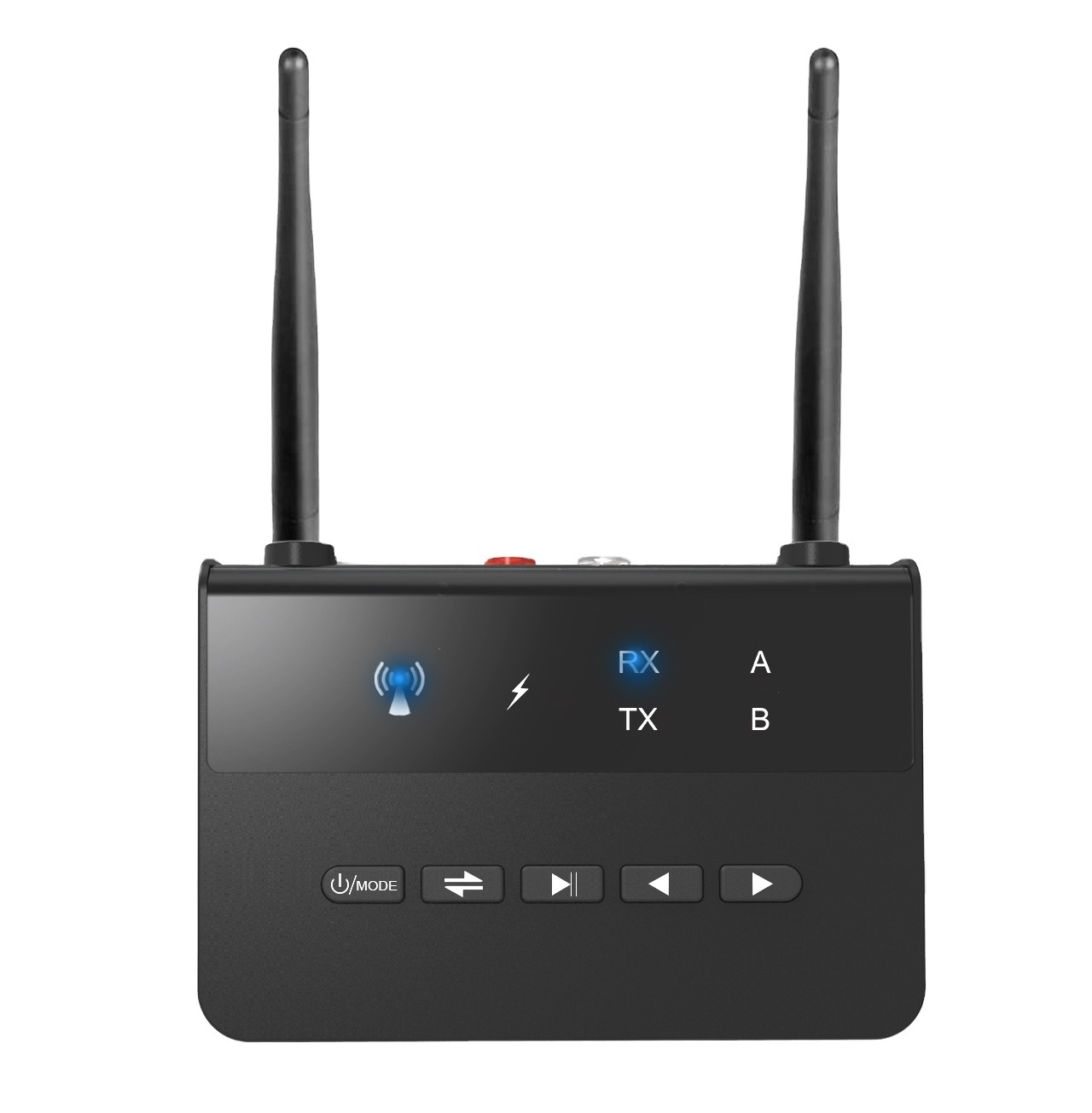

TV wireless transmitter receiver blue teeth 5.0 transmitter receiver 2 in 1 remote transmitter audio RCA AUX wireless adapter

Blue  tooth version

Blue tooth V5.0

supporting agreement

RX：A2DP AVRCP TX：A2DP

Working frequency

2.402GHz -2.480GHz

Power rating

Class I II

Distortion

≤0.1%

Support Dual stream (TX mode)

Support (a transmitter is connected to two Blue  tooth speakers or headphones at the same time to use a CODEC, up to APTX LL)

Support Multipoint (RX mode)

Support (connect two mobile phones)

Codec method

TX：apt-X LL，apt-X， SBC，FS；
RX：apt-X LL，apt-X，SBC，AAC，FS；

APTX use note

Priority support for apt-X LL CODEC in single connection (the connected device must also support apt-X LL)

Built-in battery

500MAH

recharging current

about 350MA

Charging time

about 2.5h

Battery life

RX>10H, TX>8H

Blue tooth distance

﹥80M(Straight line without obstruction)

charging method

Micro USB 5V/0.5A

Input/output connection method

RCA interface, I2S AUX interface, support RCA, AUX dual simultaneous output

compatible

Android, IOS system mobile phone and PAD, and Bluetooth speakers or earphones supporting A2DP protocol are connected for use

Features

◆ The appearance of the product is exquisite;
◆ Adopt CSR high-end chip design;
◆One-key switch between RX and TX modes;
◆ RCA, I2S audio input/output interface, can be switched freely
◆Two antennas, Bluetooth operating distance>80M, strong stability;
◆High fidelity and lossless sound qual ity, ultra-low delay sound output. Support apt-X LL, apt-X, SBC, AAC, FS. ◆Built-in 500MA
battery, long battery life. ◆There will be a low battery reminder when the battery is less than 20%. The product will
automatically enter the sleep power saving mode after 6 minutes in the RX and TX mode without connection, and it has its own
battery protection IC, which is safe and reliable while charging. ◆Support dual current Support Dual stream (TX mode) transmission
can connect two Blue tooth audio devices ◆Receive (RX) can connect two devices at the same time, any two of mobile phones * tablet
* notebook devices, you can control the volume and up and down songs by pressing the buttons during playback
◆Automatically connect back in receiving mode and transmitting mode, and have memory function for connected products
◆ The product connection is simple, without any cumbersome driving and downloading APP;

attachment

Micro USB power cable

3.5MM

3.5MM audio cable

Micro USB

RCA audio cable

user manual

RCA

color packing

weight（product）

70g

Dimensions (product)

11*9*2.5cm

Weight (with color box)

170g

Color box size

15.5*9.5*3cm

carton box

49.5*33*33CM
100pcs
17.5KG
