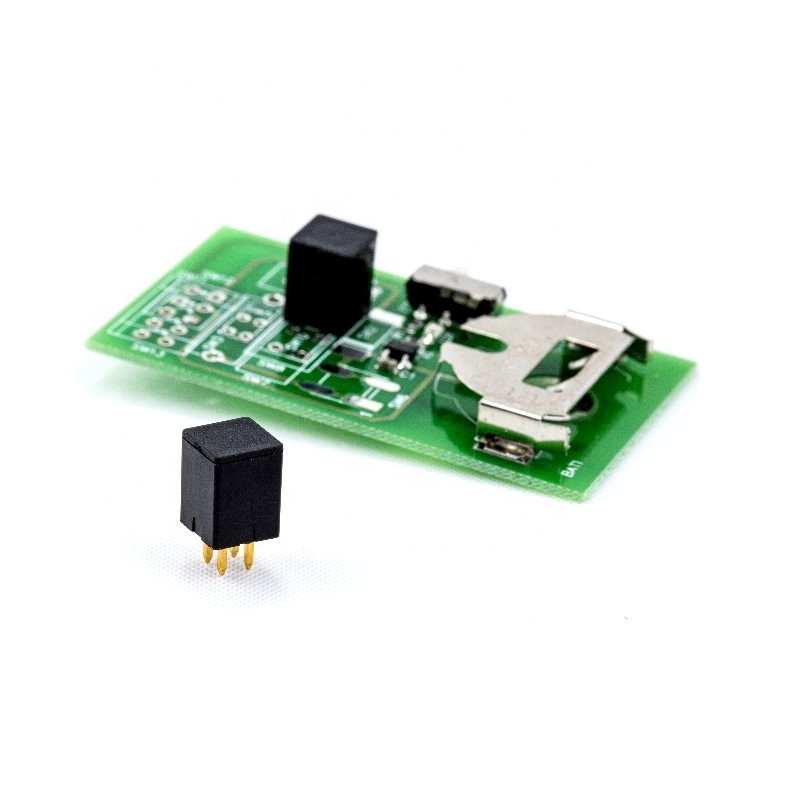

RBS130100 rotation and Vibration detecting sensor switch

Function
1. Rotation detecting for Vertical PCB ● Switch State: Normal Close

● Production Process:DIP
● Signal change Angle θ = 45°± 25°

2. Vibration detecting for Horizontal PCB

● Switch State:
RBS130100 acts like a normally close switch which chatters open and close as it is tilted or vibrated.
● Production Process:DIP

Feature
● Gold-plated ball and terminals, low possibility of oxidization.
● Housing made of high insulation plastic material, free from electric conduction and rust problem.
● All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
● Simple ON and OFF signals, easy for design.
● RoHS compliance, an ideal substitute for mercury switch.
● A more economical tilt and rotation detection option than IC design solution.

Current / Voltage Suggested

Electrical Characteristics

Mechanical Characteristics

Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

Dimension of RBS130100
All made in Taiwan and EXAMINED before shipment

Packing of RBS130100
All made in Taiwan and Examined before shipment

Application of RBS130100

1. Rotation Detection for LCD monitor
2. Alarm system
3. Wake up systems for power saving, such like remote controllers
4. Automatically power off for Sporting equipment
5. Toys,Entertainment devices

What is Roll Ball Sensor Switch?
Roll Ball Sensor Switch operates using the same theory as any other mechanical switches: the turning on and off action is activated whenever the metal part of a switch is touched. As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals or an alteration of a light path. This will generate the conductive or non-conductive status.
A number of different kinds of Roll Ball Sensor Switches are available for various applications, including the Tilt Sensor Switch, Vibration Sensor Switch, Centrifugal Force Sensor Switch and Optical Roll Ball Switch.
The traditional way to detect the tilt and vibration is using mercury switches. As mercury switch is banned by more and more governments, the use of tiny balls to trigger mechanical touch actions becomes more widespread.
