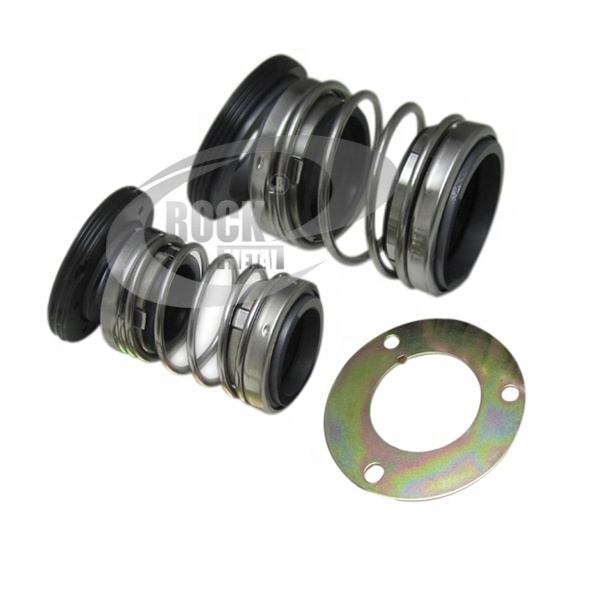

T560D-20mm Double Elastomer Bellow Mechanical Seal 560D
T560D-20mm Double Elastomer Bellow Mechanical Seal 560D
T560D-20mm Double Elastomer Bellow Mechanical Seal 560D
T560D-20mm Double Elastomer Bellow Mechanical Seal 560D

T560D-20mm Double Elastomer Bellow Mechanical Seal 560D

FOB Reference Price: Get Latest Price
≥10 Pieces
US $29
≥20 Pieces
US $28
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
T560D
Standard or Nonstandard:
Standard
Pump:
submersible pump, sewage pump, applied to the muddy water
Temperature:
-20 to 100 centigrade degree
Pressure:
Up to 0.5MPa
Speed::
Up to 8m/sec
Stationary ring(seat)::
ceramic/sic/TC
Rotary ring:
carbon/sic/TC
Secondary seal::
NBR/EPDM/V

Quick Details

Size:
20mm
Place of Origin:
Zhejiang, China
Brand Name:
NO
Model Number:
T560D
Standard or Nonstandard:
Standard
Pump:
submersible pump, sewage pump, applied to the muddy water
Temperature:
-20 to 100 centigrade degree
Pressure:
Up to 0.5MPa
Speed::
Up to 8m/sec
Stationary ring(seat)::
ceramic/sic/TC
Rotary ring:
carbon/sic/TC
Secondary seal::
NBR/EPDM/V

T560D-20mm Submersible Swedge Pump Mechanical Seal 560D

Product Description

Working conditions

  1. Pump: submersible pump, sewage pump, applied to the muddy water, sewage water or weakly corrosive fluids with solid grains.
  2. Temperature: -20 to 100 centigrade degree
  3. Pressure: Up to 0.5MPa
  4. Speed: Up to 8m/sec

Combined Materials

  1. Stationary ring(seat): ceramic/sic/TC
  2. Rotary ring:carbon/sic/TC
  3. Secondary seal: NBR/EPDM/V
  4. Others: ss304, ss316

Packaging & Shipping

Trouble Guide

Why Choose Us

double face spring mechanical seal
