Quick Details
-
Production Capacity:
-
8-10m/min
-
Power:
-
4kw +4kw 4+5.5kw, 4kw +4kw 4+5.5kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Dimension(L*W*H):
-
3000*1800*720mm
-
Model:
-
168 Double roller219 Three rollers
-
Paving width:
-
3000-6000mm
-
Vibration frequency:
-
32HZ
-
Roller diameter:
-
168mm219mm
-
Impact force:
-
5.5kN
-
Move speed:
-
8-10m/min
-
Voltage:
-
380v380v
-
Paving thickness:
-
300mm
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Certification:
-
ISO9001 CE
Quick Details
-
Max. Paving Thickness:
-
300mm
-
Weight:
-
1000KG-1500KG, 1000kg1500kg
-
Engine Brand:
-
AEOLUS
-
Production Capacity:
-
8-10m/min
-
Power:
-
4kw +4kw 4+5.5kw, 4kw +4kw 4+5.5kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Dimension(L*W*H):
-
3000*1800*720mm
-
Model:
-
168 Double roller219 Three rollers
-
Paving width:
-
3000-6000mm
-
Vibration frequency:
-
32HZ
-
Roller diameter:
-
168mm219mm
-
Impact force:
-
5.5kN
-
Move speed:
-
8-10m/min
-
Voltage:
-
380v380v
-
Paving thickness:
-
300mm
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Certification:
-
ISO9001 CE

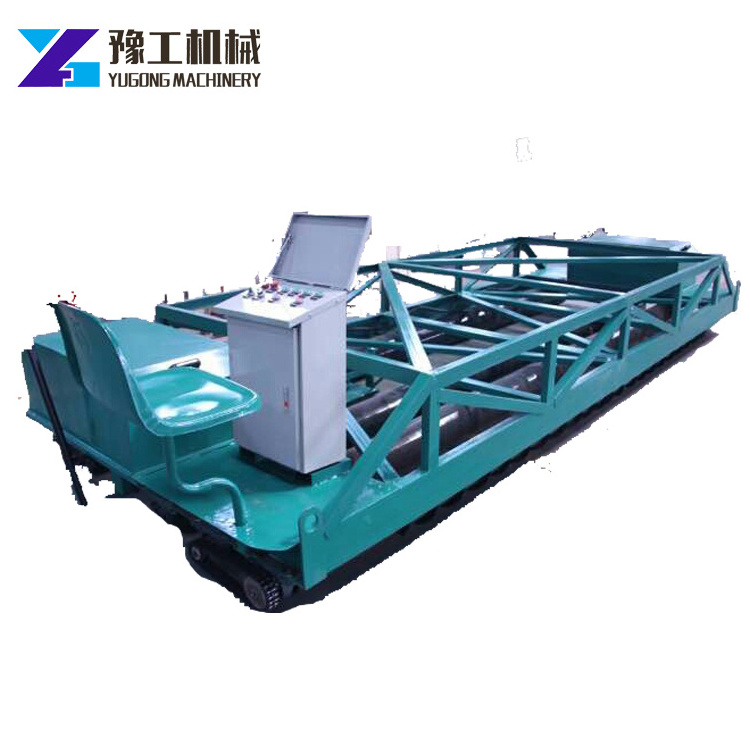

Factory direct sale high efficiency mini asphalt paver
Product Description
Application
• Concrete Roller Paver is mainly used for high-speed railways, bridges, municipal roads.
• Country Road, Airport Runway Waterslope and other projects of concrete surface.
Parameter
| Concrete Roller Paver | |
| Model | YG-CP219 |
| Paving Width (m) | 3--10 |
| Vibrating Frequency (Hz) | 40 |
| Excitation Force (Kn) | 5.52 |
| Travel Speed (m/min) | 8.4 |
| Roller Diameter-3Rollers (mm) | 219 each |
| Paving Thickness (mm) | 300 |
| Auger Rotation Speed (mm) | 200 |
| Strike Tube Rotation Speed Max (rpm) | 300 |
| Drive Tube Motor Rating (Kw) | 7.5 |
| Strike Tube Motor Rating (Kw) | 3 |
| Operating Weight (Kg) | 1600 |
| Dimensions (LxWxH mm) | Lx1803x815 |
| Concrete Roller Paver | |
| Model | YG-CP168 |
| Paving Width (m) | 3--6 |
| Vibrating Frequency (Hz) | 60 |
| Mounted Vibrator Vibration per min (k) | 3--3.6 |
| Travel Speed (m/min) | 3-9 |
| Roller Diameter-2Rollers (mm) | 168 each |
| Paving Thickness (mm) | 300 |
| Drive Tube Motor Rating (Kw) | 3 |
| Total Power (Kw) | 4.5 |
| Operating Weight (Kg) | 500 |
| Dimensions (LxWxH mm) | Lx880x600 |
Product Display
Anvantage:
- Double layer steel structure is more stable
- Min labour required
- Optional auger for spreading concrete available
- Work with low concrete slumps
- Meet strict flatness and levelness specifications
- Multiple passes in both forward and reverse direction
