Quick Details
-
Dimension(L*W*H):
-
170cm x 90cm x 185cmm
-
Weight:
-
750 KG
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
Good Mobility
-
Advanced Feature-1:
-
2 Hydraulic Lift Cylinders
-
Advanced Feature-2:
-
With Auto Water Flow Control
-
Max Drilling Depth:
-
150m
-
Max Drilling Diameter:
-
420mm
-
Drilling Rod Length:
-
1.5m/piece
-
Outer Diameter Of Drilling Rod:
-
51mm
-
Inner Diameter Of Drilling Rod:
-
44mm
-
Power Source:
-
Diesel Engine
-
Working Principle:
-
Hydraulic
-
Rock Drilling Capacity:
-
Can drill rocks with diamond bit
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HT
-
Voltage:
-
Diesel Engine Drive
-
Dimension(L*W*H):
-
170cm x 90cm x 185cmm
-
Weight:
-
750 KG
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
Good Mobility
-
Advanced Feature-1:
-
2 Hydraulic Lift Cylinders
-
Advanced Feature-2:
-
With Auto Water Flow Control
-
Max Drilling Depth:
-
150m
-
Max Drilling Diameter:
-
420mm
-
Drilling Rod Length:
-
1.5m/piece
-
Outer Diameter Of Drilling Rod:
-
51mm
-
Inner Diameter Of Drilling Rod:
-
44mm
-
Power Source:
-
Diesel Engine
-
Working Principle:
-
Hydraulic
-
Rock Drilling Capacity:
-
Can drill rocks with diamond bit

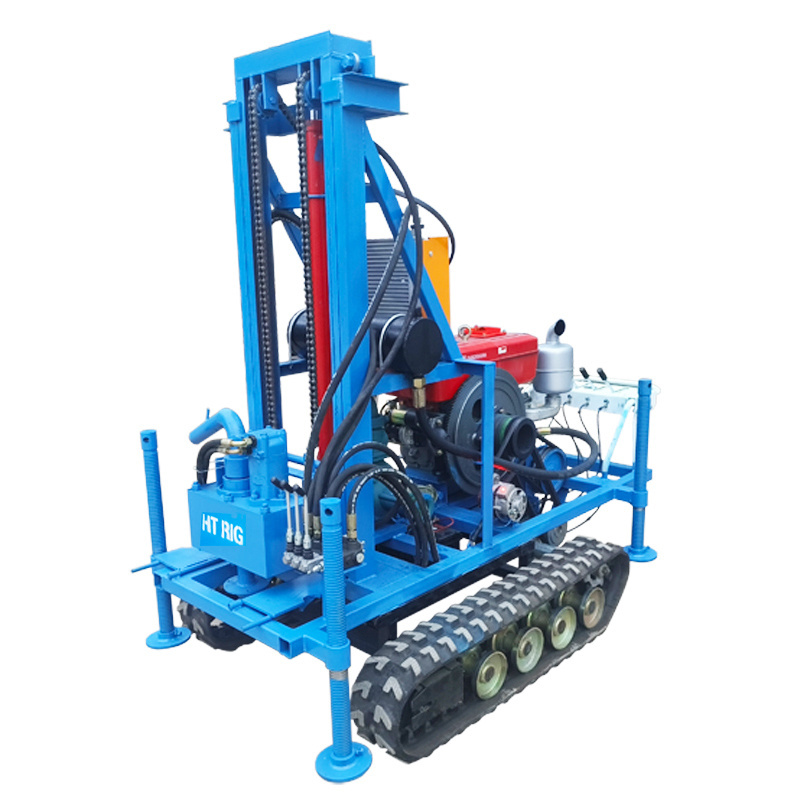

Water Borehole Drilling Rig Machine Price For Sale 100M Small Portable Mini Mobile Hydraulic Equipment Driller Types:
Applications And Features Of Water Well Drilling Rig :
1 This small drilling machine occupies a small area ( 1square meters), a height of 2 meters stand, the job can be installed in less than ten minutes.can be used at indoor and outdoor site.
2 The well pipe is fully enclosed, shallow layer has no leakage, can ensure the health and safety of drinking water.
3 Research and Develop by ourself,it breaks difficult problem that easy to drill and hard to disassemble.
4 All the lifting, loading and unloading drill pipe is mechanized, time-saving, labor-saving and easy to operate.
5 Advantages :
5.1 One man can operate, auto water flow control function.
5.2 Double lift chains, with hydraulic oil radiator.
5.3 Drilling process is stable, no jamming or shaking.
5.4 Electric start, it can charge the battery automatically.
5.5 Thicked and strong water swivel, inlet water pipe can change direction, with the screw to fix the inlet water pipe to ensure there is no water leak.
5.6 hydraulic oil radiator installed at the top near the hydraulic tank, it can cool the hydraulic oil well, also can prevent accidental collision (if installed below, it is easily crushed during transportation)
Back View
Double Lift Cylinder
4 Hyraulic Legs
Crawler Type
| Model | DH150 | |
| Principle | Positive Cycle | |
| Hydraulic Power | 22Hp-Diesel Engine | |
| Centrifugal Pump Power | 8Hp-Diesel Engine | |
| Max Drilling Depth | 150m | |
| Max Drilling Diameter | 420mm | |
| Drilling Pipe | 51mm diameter, 1.5m/piece | |
| Drilling Bit | Alloy Steel For Soil |
one small bit (60mm,90mm) + one big bit (160-300mm) |
| PDC For Rocks | diameter should be less than 150mm | |
| Other Parts For One Complete Machine | High pressure water pump-1 unit | |
| High pressure water pipe-5m | ||
| Tools,seat,oil seal,English manual,Etc | ||
1 What is drilling Bit ?
-----It is the drilling bit at the end of the drilling pipe, it determines the diameter of the well.
We can customize the drilling bit according to your requirement.
Alloy Steel Bit For Soil: PDC Coring Bit For Rocks: PDC Solid Bit For Rocks:
2 What is drilling Pipe(rod)?
-------It deccides how deep you can drill a well,the material is steel.OD(outer diameter) is 42/51/110mm.
With good strong export wooden cases, ensure all parts arrive at your place safely and completely.
High quality with low price:
Focus on water filter area,our factory has more than 20 years of professional experience,the price is directly from factory to our clients.
Multiple delivery choice :
We have big discount with forwarder,keep the goods reach yourside fast and safety.
