Quick Details
-
Wheel:
-
Four-wheel
-
Dimension (L x W x H):
-
Customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
perfte
-
Model Number:
-
BXC
-
Product Name:
-

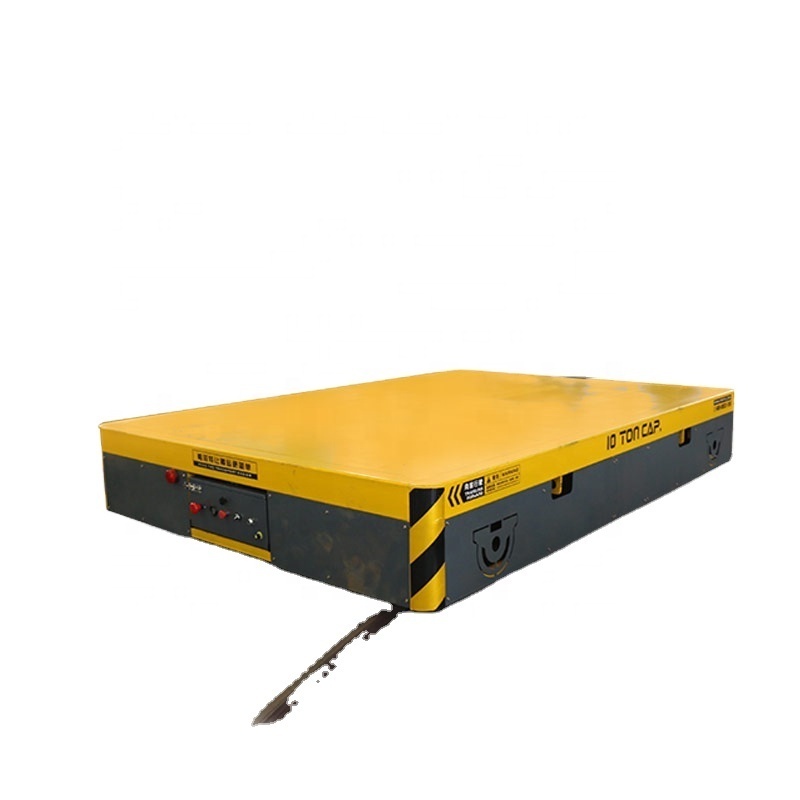

Heavy Duty Transport Motorized Carts Electric Flat Bed Trolley
-
Power Source:
-
Conductor Rail
-
Control Mode:
-
Remote Control/Pendant
-
Running Speed:
-
0-30m/min (Adjustable)
-
Dimension:
-
4000*2200*600/Customized
-
Special Features:
-
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
-
Packing Material:
-
Tarp & Wooden Case
-
Safety Device:
-
Warning Light,Buffer,Limit Switch,Guard Railing
-
Load capacity:
-
0-300T
Quick Details
-
Color:
-
yellow
-
Usage:
-
Industrial
-
Material:
-
Stainless steel
-
Wheel:
-
Four-wheel
-
Dimension (L x W x H):
-
Customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
perfte
-
Model Number:
-
BXC
-
Product Name:
-
Heavy Duty Transport Motorized Carts Electric Flat Bed Trolley
-
Power Source:
-
Conductor Rail
-
Control Mode:
-
Remote Control/Pendant
-
Running Speed:
-
0-30m/min (Adjustable)
-
Dimension:
-
4000*2200*600/Customized
-
Special Features:
-
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
-
Packing Material:
-
Tarp & Wooden Case
-
Safety Device:
-
Warning Light,Buffer,Limit Switch,Guard Railing
-
Load capacity:
-
0-300T
Parameter
|
Model |
BXC-2T |
BXC-10T |
BXC-20T |
BXC-30T |
BXC-50T |
BXC-63T |
BXC-150T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
63 |
150 |
|
|
Table size |
length(L) |
2000 |
3600 |
4000 |
4500 |
5500 |
5600 |
10000 |
|
Width(W) |
1500 |
2000 |
2200 |
2200 |
2500 |
2500 |
3000 |
|
|
Height(H) |
450 |
500 |
550 |
600 |
650 |
700 |
1200 |
|
|
Wheel Base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
4300 |
7000 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
Φ600 |
Φ600 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
|
|
Motor Power (Kw) |
1 |
1.6 |
2.2 |
3.5 |
5 |
6.3 |
15 |
|
|
Battery Capacity(Ah) |
180 |
160 |
180 |
250 |
330 |
400 |
600 |
|
|
Battery Voltage(V) |
24 |
48 |
48 |
48 |
48 |
48 |
72 |
|
|
Running Time When Full Load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
3 |
2.9 |
|
|
Running Distance for one Charge(Km) |
6.5 |
7.2 |
4.8 |
4.2 |
4 |
3.6 |
3.2 |
|
|
Max Wheel Load (KN) |
14.4 |
42.6 |
77.7 |
110.4 |
174 |
221.4 |
265.2 |
|
Our Advantages :
- Load capacity,table size and rail gauge can be customized on request.
- Power supply mode: Battery powered,cable powered,low voltage rail powered,busbar powered.
- Options: Warning light,radar detector,remote controller, electrical parts.
- Run on rail or floor.
- 2 years warranty.
- After-sale service provided ,engineer available overseas.
1. Q: How to operate the transfer cart?
A: It’s equipped with a remote controller that is used by the operator to control the transfer car movement .
2. Q: How do you guarantee the quality of the products?
A: The cart will be tested before delivery,also we got the CE SGS SASO certificates. Don’t worry,We supply after-sale service worldwide.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: Can we choose the power supply for industry transport car weighing 42 tons?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
