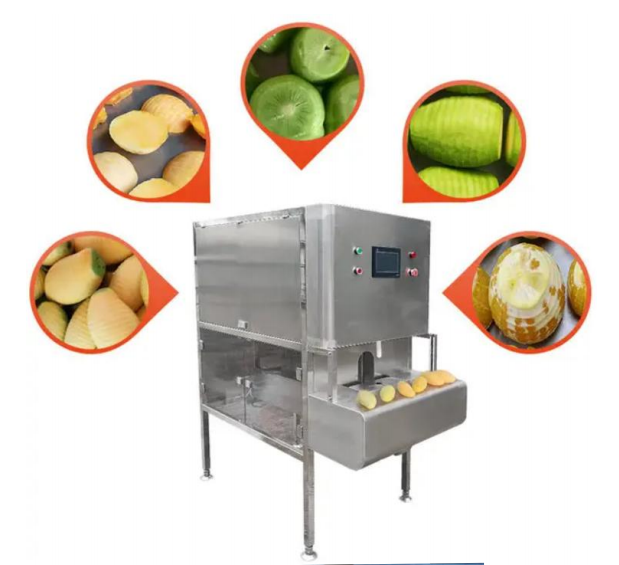

Automatic Mango Peeling & Pitting Machine
GYFP-1200
Brief introduction:
This machine is designed for peeling fruits & vegetables,high rate of peel removing. Two models, one is for big size fruits/vegetables
(GYFP-600) ,such as pineapples, melons, papaya, grape fruits, big mango, pumpkins etc. and another one for small size
fruits/vegetables(GYFP-1200) , such as apple, kiwi, pear, orange, small mango etc.
The machine consists of peeling blade, mechanical hand, locating fork, locating sensor and PLC control system.All the actions are
controlled by computer automatically, main electric parts are from Japan or German brand.The blade can peel the fruits accordance with the
shape of fruits therefore the fruits flash waste is much less than labor peeling.
For model GYFP-600, just need manually put the fruits on the feeder then automatically peel it, the peeled fruit and peels will go different
outlets.
For model GYFP-1200, manually put the fruits on the feeder then the machine automatically peel, cut both fruits ends and will go different
outlets, and also with color protection device.
The clients must provide low compressed air.
Fully made of stainless steel 304
Technical parameter and quotation:
Model GYFP-1200
Capacity 800-1200pcs/h
Function Peeling
Diameter of fruits 40-100mm
Height of fruits 40-120mm
Thickness of peel 0.5-3mm
Material SUS304
Working power 0.5kw 220/380V 50Hz
Dimension 1750*750*1900mm
Weight 260kg
