The product has passed through International Standard of IEC 60529 --Housing Protection Grade(IP66)--dustproof and waterproof testing, wider working environment and more reliable.
- Product Details
- {{item.text}}
Quick Details
-
Lamp Body Material:
-
Aluminum Alloy
-
Lamp Luminous Flux(lm):
-
1000 + lumens
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YUSHI
-
Model Number:
-
VM100
-
Warranty(Year):
-
1, 1
-
Product Name:
-
Fluorescent lamp
-
Application:
-
Industrial NDT Testing
-
LED bead Number:
-
5
-
Irradiated Area at 38cm Distance:
-
55mm
-
Battery:
-
Without
-
Wavelength:
-
365nm
-
Battery life:
-
More than 500 time for fully charge and discharge
-
Weight:
-
1290g
Quick Details
-
Battery Type:
-
AC
-
Usage:
-
Industrial
-
Power Source:
-
AC
-
Lamp Body Material:
-
Aluminum Alloy
-
Lamp Luminous Flux(lm):
-
1000 + lumens
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YUSHI
-
Model Number:
-
VM100
-
Warranty(Year):
-
1, 1
-
Product Name:
-
Fluorescent lamp
-
Application:
-
Industrial NDT Testing
-
LED bead Number:
-
5
-
Irradiated Area at 38cm Distance:
-
55mm
-
Battery:
-
Without
-
Wavelength:
-
365nm
-
Battery life:
-
More than 500 time for fully charge and discharge
-
Weight:
-
1290g
Product Description

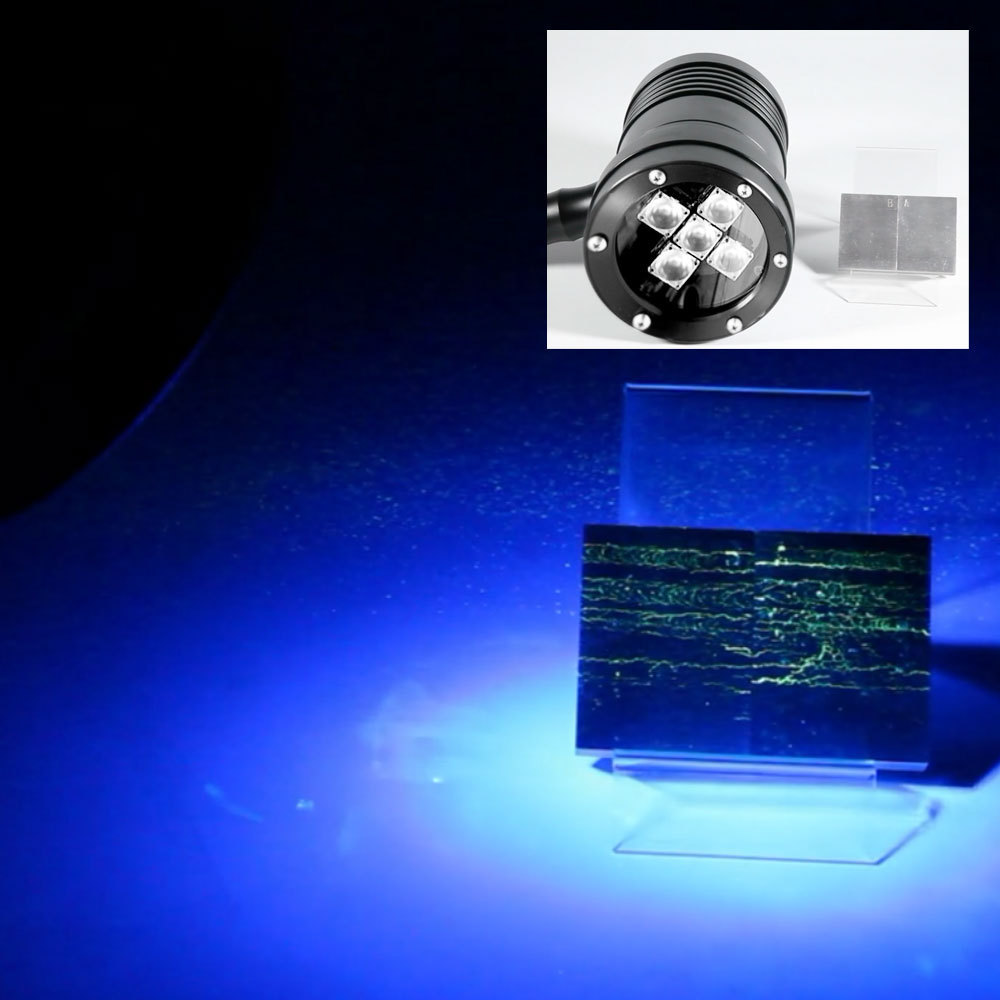

Industrial NDT 365nm LED UV Fluorescent Lamp Rechargeable Flashlight for Nondestructive Testing
Main Application of the NDT UV lamp
Fluorescent Penetrate Testing
Fluorescent Magnetic Particle Flaw Detection
Fluorescence Leak Detection
Other
Application
Oil and Stain detection, special gas, oil and gas pipeline inspection, Fluorescence Reflectance Detection of Special Substances, Criminal investigation and forensic investigation, Paper currency identification, gem appreciation, agriculture, food, medical and other related industries.
Detailed Images
Waterproof and Dustproof testing.
Product Parameter
|
Name
|
UV lamp light flashlight
|
|
Model
|
VM100
|
|
Power Supply
|
AC
|
|
Lamp Beads
|
NICHIA 365nm Ultraviolet band LED Lamp Beads
|
|
Lamp Bead Amount
|
5
|
|
Input Voltage
|
100-240VAC
|
|
Output Power
|
15W
|
|
Intensity of Ultraviolet Ray at 38cm Distance
|
≥16000uW/cm2
|
|
Irradiated Area at 38cm Distance
|
￠200mm
|
|
Diameter of Light Inlet Window
|
￠88
|
|
Outline Dimension
|
￠123 mm×190 mm×120 mm
|
|
Weight(including Battery)
|
1290g
|
More Types
|
Model
|
VM10
|
VM30
|
VM50
|
VM70
|
VM100D
|
||||
|
Power Supply
|
Chargeable Battery
|
Chargeable Battery
|
Chargeable Battery
|
Chargeable Battery
|
AC
or
Chargeable Battery Group
|
||||
|
Lamp Beads
|
NICHIA 365nm Ultraviolet band LED Lamp Beads
|
|
|
|
|
||||
|
Lamp Bead Amount
|
1
|
|
|
3
|
4
|
||||
|
Input Voltage
|
3.7-4.2V
|
3.7-4.2V
|
3.7-8.4V
|
3.7-4.2V
|
100-240VAC
|
||||
|
Output Power
|
3W
|
|
|
9W
|
12W
|
||||
|
Intensity of Ultraviolet Ray at 38cm Distance
|
≥10000uW/cm
2
|
≥13000uW/cm
2
|
≥17000uW/cm
2
|
≥20000uW/cm
2
|
≥11000uW/cm
2
|
||||
|
Irradiated Area at 38cm Distance
|
￠43mm
|
￠45mm
|
￠55mm
|
￠80mm
|
￠200mm
|
||||
|
Diameter of Light Inlet Window
|
￠22mm
|
￠34mm
|
￠55mm
|
￠50mm
|
￠88mm
|
||||
|
|
ICR 18650
|
ICR 26650
|
ICR 26650
|
ICR 18650
|
ICR 18650--2600mAh 3.7V
|
||||
|
Battery Capacity
|
2600mAh
|
4800mAh
|
4800mAh
|
2600mAh
|
|
||||
|
Number of Battery
|
1
|
1
|
2
|
4
|
2﹡4
|
||||
|
Charging Time
|
≥5H
|
≥6H
|
≥7H
|
≥5H
|
≥4H
|
||||
|
Working Hours
|
≥4H
|
≥5H
|
≥8H
|
≥5H
|
≥7H
|
||||
|
Battery Life
|
More than 500 time for fully charge and discharge
|
|
|
|
|
||||
|
Outline Dimension
|
￠28 mm
|
￠40 mm
|
￠62 mm
|
￠60 mm
|
￠123 mm
|
||||
|
|
￠24 mm
|
￠33 mm
|
￠34 mm
|
￠50 mm
|
190 mm
|
||||
|
|
128 mm
|
144 mm
|
240 mm
|
143 mm
|
120mm
|
||||
|
Weight(including Battery)
|
140g
|
240g
|
520g
|
610g
|
1560g
|
||||
