Quick Details
-
EINECS No.:
-
201-177-9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YICHANG
-
Model Number:
-
YC3195LV
-
viscosity:
-
1600cps.at25c
-
hardness:
-
E10-20
-
transmitter:
-
>99%
-
haze:
-
~0.35
-
application:
-
TP fit
-
pre-cure/curing energy:
-
500/3000mj/cm2
-
Substrates:
-
G+G G+P
-
size:
-
3g/5g/10g /30g/50g/ 800g/1kg
-
color:
-
clear
-
certificates:
-
ISO9001,MSDS
Quick Details
-
CAS No.:
-
79-10-7
-
Other Names:
-
LOCA adhesive
-
MF:
-
C3H4O2
-
EINECS No.:
-
201-177-9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YICHANG
-
Model Number:
-
YC3195LV
-
viscosity:
-
1600cps.at25c
-
hardness:
-
E10-20
-
transmitter:
-
>99%
-
haze:
-
~0.35
-
application:
-
TP fit
-
pre-cure/curing energy:
-
500/3000mj/cm2
-
Substrates:
-
G+G G+P
-
size:
-
3g/5g/10g /30g/50g/ 800g/1kg
-
color:
-
clear
-
certificates:
-
ISO9001,MSDS

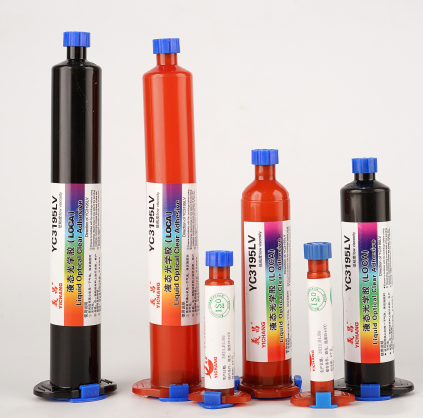

YC3195LV Liquid optical clear adhesive for ITO glass and PMMA cover lens
1.Specification
|
Form |
liquid |
Glossiness |
transparent |
|
Applied material |
Glass, ITO glass, PMMA cover lens |
Size of applied thread |
Medium and small touch screen |
|
package |
High pressure LDPE bottle |
Packing size |
3g/5g/10g/30g/50g/ 800g/1kg |
|
performance |
Low viscosity,medium strength. Excellent impact resistance,good adhesion,aging and thermal cycling resistance. |
||
|
application |
For touchscreen: ITO and liquid crystal, ITO and glass. Excellent compatibility with ITO. Suitable for medium and small screen. For iPhone , For Samsung , For Htc , For Nokia Etc |
||
2. Technical data sheet
|
Product number |
application |
Substrates |
Viscosity |
Hardness |
Transmitter |
Haze |
Cure energy recommened |
|
|
Cps.at25c |
Shore A |
%
|
% |
Pre-cure |
fullcure |
|||
|
Brookfield RVT |
ASTM D1484-59 |
550nm 0.2mm |
|
Mj/cm 2 (365nm) |
Mj/cm 2 (365nm) |
|||
|
YC3195LV |
TP fit |
G+G P+G |
1600 |
E10-20 |
> 99% |
~0.35 |
500 |
3000 |
|
YC3185 |
TP fit |
G+G P+G |
2000 |
E10-20 |
> 99% |
~0.35 |
500 |
3000 |
|
YC3186 |
TP fit |
G+G P+G |
2500 |
E10-20 |
> 99% |
~0.35 |
500 |
3000 |
|
YC3182 |
TP fit |
G+G P+G |
1000 |
E10-20 |
> 99% |
~0.35 |
500 |
3000 |
|
YC3195 |
TP fit |
G+G P+G |
3500 |
E10-20 |
> 98% |
~0.35 |
500 |
3000 |
|
YC3200 |
High power LED,coffer sealing of plane light source |
|
14000-16000 |
A50-60 |
> 95% |
|
500-1000 |
3000 |
|
YC1600 |
TP to LCM; OGS to LCM |
G+LCM P+LCM |
1600 |
E10-20 |
> 99% |
~0.35 |
500 |
3000 |
|
YC2500 |
TP to LCM; OGS to LCM |
G+LCM P+LCM |
2500 |
E10-20 |
> 99% |
~0.35 |
500 |
3000 |
|
YC3500 |
TP to LCM; OGS to LCM |
G+LCM P+LCM |
3500 |
E10-20 |
> 98% |
~0.35 |
500 |
3000 |
3. Other questions
1) The sample
We could supply the sample.
2) The shipping way
By sea to your nearest port
By express to your door
3) The payment term
Western Union, MoneyGram , T/T with deposit
Factory direct sale with all kinds of industrial adhesives, please feel free to contact us if there is any need or question.
