Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhoufeng
-
Power (kW):
-
5.5 kW
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Coal coke iron powder wood charcoal wheel mill grinding mixer
-
Function:
-
Mixer Blender
-
Usage:
-
Mixing Powder Proucts
-
Capacity:
-
Customers' Request
-
Feature:
-
High Efficency Mixing Machine
-
Stirrer type:
-
wheel grinding
-
Raw material:
-
Charcoal Powder
-
Diameter:
-
1000, 1200,1500,1800,2000mm
-
MOQ:
-
1 Set
Quick Details
-
Barrel Volume (L):
-
2000
-
Max. Loading Volume (L):
-
2000 L
-
Weight (KG):
-
450 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhoufeng
-
Power (kW):
-
5.5 kW
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Coal coke iron powder wood charcoal wheel mill grinding mixer
-
Function:
-
Mixer Blender
-
Usage:
-
Mixing Powder Proucts
-
Capacity:
-
Customers' Request
-
Feature:
-
High Efficency Mixing Machine
-
Stirrer type:
-
wheel grinding
-
Raw material:
-
Charcoal Powder
-
Diameter:
-
1000, 1200,1500,1800,2000mm
-
MOQ:
-
1 Set
Product Description

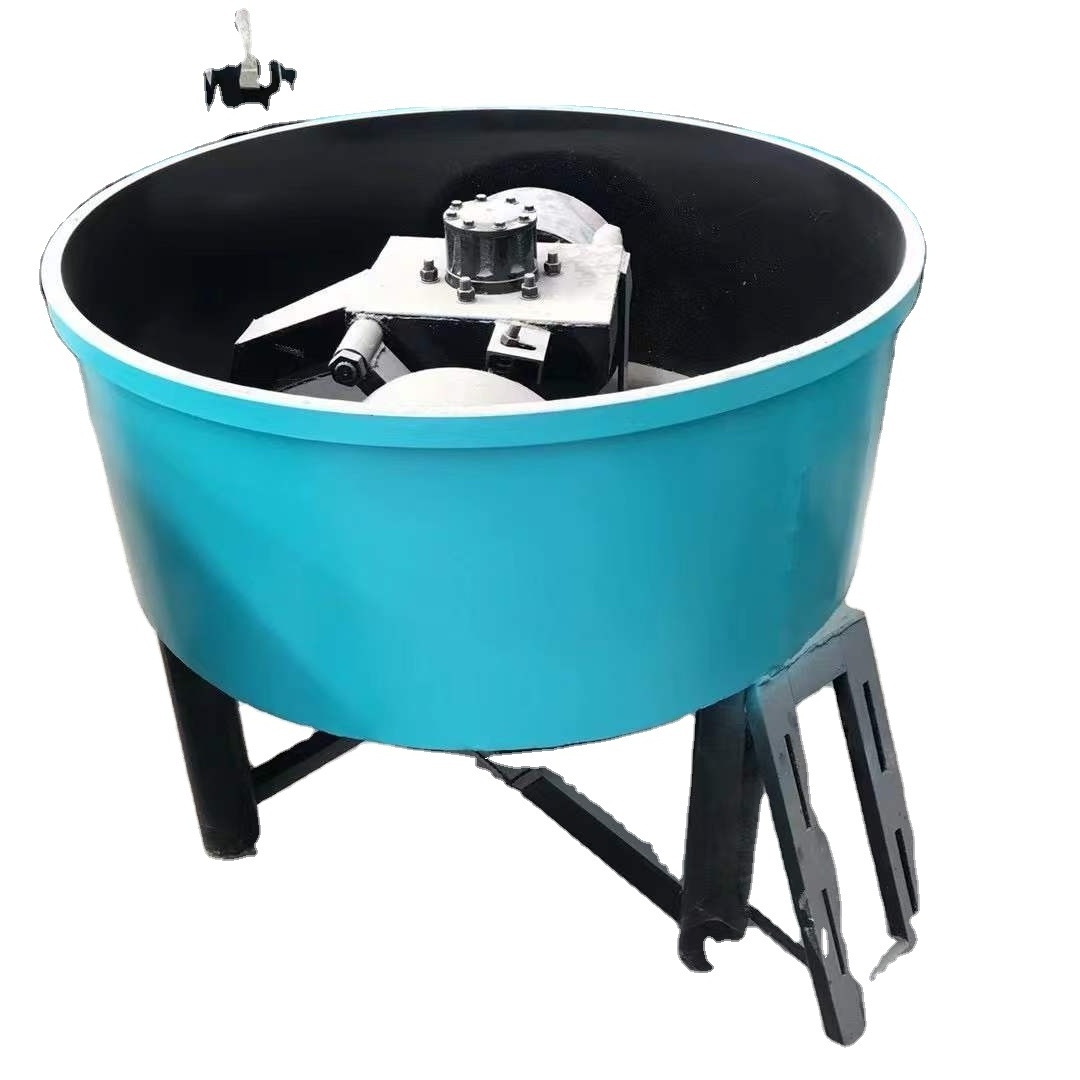

The wheel mill mixer can mix charcoal powder, iron powder, mineral powder, etc. It is used for briquetting, making rods and making honeycomb briquettes, etc.
Specification
|
Model
|
ZFLN-1000
|
ZFLN-1200
|
ZFLN-1500
|
ZFLN-1800
|
ZFLN-2000
|
|
Diameter
|
1000mm
|
1200mm
|
1500mm
|
1800mm
|
2000mm
|
|
Capacity per time
|
30-50kg
|
100-200kg
|
300-500kg
|
500-1000kg
|
1000-1200kg
|
|
Mixer time(Min)
|
5-10
|
5-10
|
10-15
|
10-15
|
10-15
|
|
Motor(kw)
|
5.5
|
5.5
|
7.5
|
18.5
|
22
|
|
Capacity(t/h)
|
0.3
|
0.6-0.8
|
1-2
|
2-5
|
3-6
|
Working principle
The wheel mill uses the pressure and shear force generated between the rolling wheel and the grinding disc to grind the material. In terms of mechanism and working principle, the wheel mill is an ancient and inefficient pulverizer, but because of its technical characteristics of grinding and stirring, it is very convenient to control the fineness of the product, and it has strong pulverization adaptability, and has a simple structure. It is easy to operate, so it is still in use today.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
