Quick Details
-
Voltage:
-
220v,380v,415v,
-
Disc Dia.:
-
2.5M
-
No Load Speed:
-
21000rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AA4C, AA4C
-
Model Number:
-
AA-SB601, AA-SB608
-
Product name:
-
AA4C inflatable car spray booth
-
Spraying booth:
-
Painting booth
-
Color:
-
Client's Requirements
-
Environmental certificate:
-
CE Approved
-
Heating System:
-
Riello Brand G20 Diesel Burner
-
Lighting System:
-
Lamp
-
Packing details:
-
40ft Container
-
Warranty:
-
12 Months
Quick Details
-
Power:
-
7.5kw
-
External Size:
-
7000x4000x2800mm
-
Internal Size:
-
7000x4000x2800mm
-
Voltage:
-
220v,380v,415v,
-
Disc Dia.:
-
2.5M
-
No Load Speed:
-
21000rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AA4C, AA4C
-
Model Number:
-
AA-SB601, AA-SB608
-
Product name:
-
AA4C inflatable car spray booth
-
Spraying booth:
-
Painting booth
-
Color:
-
Client's Requirements
-
Environmental certificate:
-
CE Approved
-
Heating System:
-
Riello Brand G20 Diesel Burner
-
Lighting System:
-
Lamp
-
Packing details:
-
40ft Container
-
Warranty:
-
12 Months

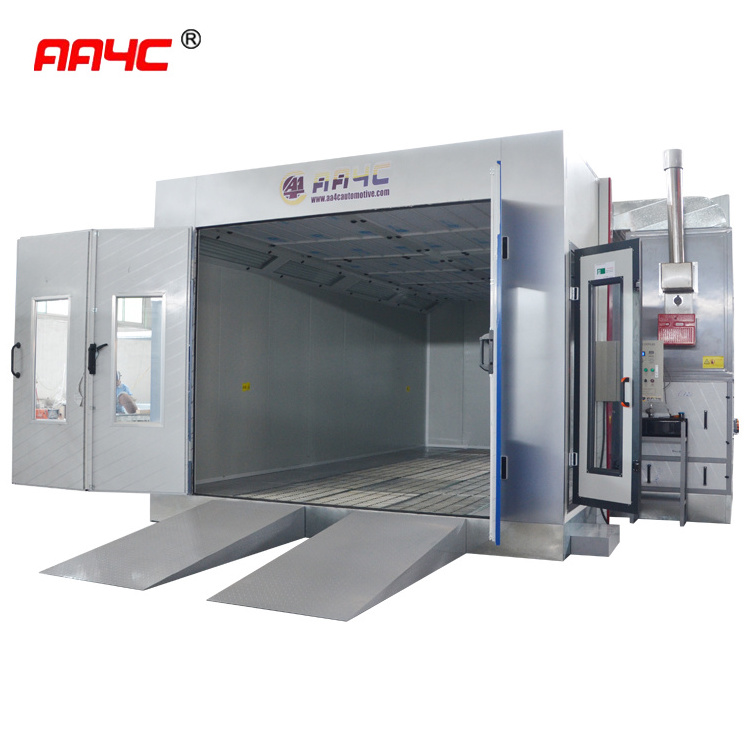

AA4C auto spray booth car painting booth waterborne car spray booth spraybooth vehicle backing oven
Inside Dimensions: 7000x4000x2800mm
Outside Dimensions: 7100x5550x3600mm
Main doors: 3-fold, 3000x2700mm
Personal door; 1-fold, 800x2000mm
Wall Panels: Rock Wool, tongue and groove interlock construction, thickness: 50mm
Basement and floor: Adjust height bolt and complete steel, 3 pcs of ramp, 900x200mm(WxL)
Lighting: Upper inclined lights8 unitsx4Pcs=32Pcs, 58W Philip tube; Lower lights10unitsx2Pcs=20Pcs, 20W tube (horizontal installation), OSRAM rectifier.
Glass: Both window and light are ovenproof toughened glass
Generator setting type: Back upper intake air, back upper extract air, aluminium alloy frame, coated steel.
Intake fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000 m3/h.
Extract fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000 m3/h
Heating system Riello RG5S oil burner, Heat
Productivity: 260000Kcal.; Stainless steel heat exchanger; Highest temperature: 80 degree; Pneumatic damper from spraying to baking cycle.
Filter system Prefilter, high efficiency filter(ceiling filter), floor filter, extract filter.
Control System: Spraying, Risen-temperature Spraying, Baking temperature, Time setting, Lighting switch, Hour meter, Pressure Gauge, Emergency Stop, Failure Alarm, Temperature Control Meter
