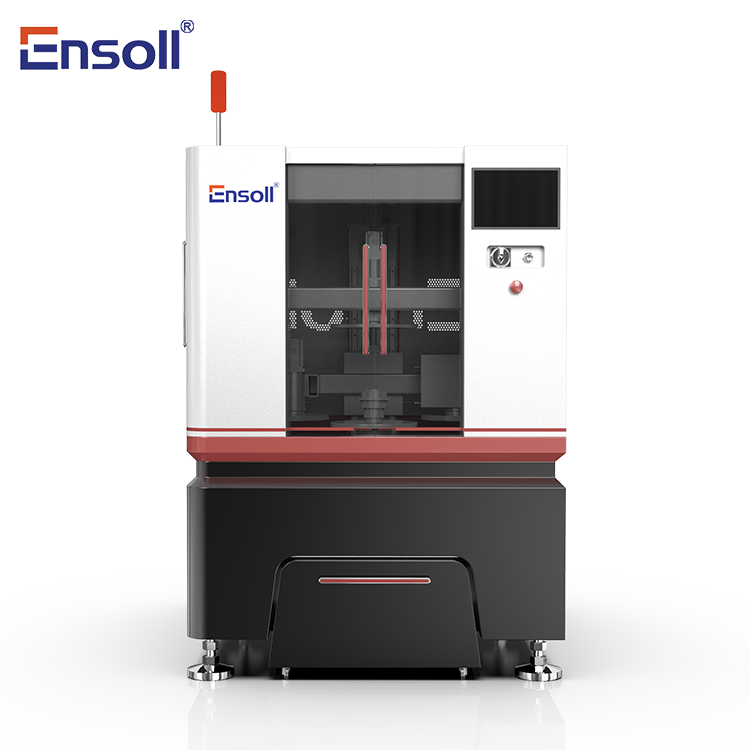

Automatic wire cutter diamond wire saw machine quartz optical glass graphite silicon slicer cutting machine

Automatic wire cutter diamond wire saw machine quartz optical glass graphite silicon slicer cutting machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $24000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 500 KG

Cutting mode:: horizontal cut

Cutting material:: all materials

Function:: Precision cutting

Control system:: PLC+touch Screen

Advantage:: High Efficiency Easy Operate

Certification:: CE ISO

Cutting thickness:: 0.1-300

Product name:: Cutting Machine

Machine type:: Automnatic

Cutting accuracy:: 0.03

Quick Details

Place of Origin:: China

Brand Name:: Ensoll

Marketing Type:: Hot Product 2023

Weight (KG):: 500 KG

Cutting mode:: horizontal cut

Cutting material:: all materials

Function:: Precision cutting

Control system:: PLC+touch Screen

Advantage:: High Efficiency Easy Operate

Certification:: CE ISO

Cutting thickness:: 0.1-300

Product name:: Cutting Machine

Machine type:: Automnatic

Cutting accuracy:: 0.03

Machine S pec		Sample Requirements
Power Supply	220V/50Hz	Material	No limit
Max. Power	2.5KW	Max. Cutting Size	400 30 0 300 mm(Height)
Machine Weight	500 KG	Max. Workpiece Weight	300KG
Machine Size	110 0 * 100 0 * 160 0 mm	C ooling Method	W et/ D ry cut
Structure Material	Steel	Cutting Thickness	0.1-300 mm (adjustable)
Wheel Number	2 wheel( 265 mm)	Rotating Table Size	300*300mm
Cutting S pec		Operation S ystem
Linear S peed	1- 41 m/s	Control S ystem	PLC(Siemens)
Feed S peed	0.1-2000 mm/min	Feed Motion	Servo Control
Wire Diameter	0.65 mm ( 0.45-0.65mm )	Moter Speed	2800 RMP
Wire Length	2003 mm	Operation Board	LED touch-sensitive screen
Cutting Method	Horizontal cutting	Broken W ire P rotection	Automatic protection

Q1: Are you a manufacturer or trading company?

Ensoll is a high-tech enterprise specializing in the research and production of Endless diamond wires & Equipment from 2015.

Q2: Do you support OEM and ODM?

Yes, we are more than welcome.

Q3: How long is the machine delivery time?

Machine delivery time is 30-45 days after order confirmation and p repayment received.

Q4: How to choose the cutting machine that is most suitable for your material?

Please inform the size of your material and w hat you want to cut it into .

We will have professional technical staff to serve you and send the most suitable cutting plan for you reference .

Q 5 : How to provide after-sales guarantee for the machine?

The factory has a professional team of engineers to serve you 24 hours a day. The factory machines are maintained for life and the warranty period is 1 year.

Q 6 : How to convert power supplies in different countries?

We have a professional team of electronic control engineers to ensure that the machine can be plugged in and used in all countries.

Q 7 : This is my first time using this machine. Is it easy to operate?

Our machine is delivered as a complete machine. No installation is required. It can be used immediately after plugging in the electricity. The operation is very simple. It has been verified that ordinary people can operate this machine skillfully in 3 minutes.

If there are still any problems, we will provide you with free professional guidance until you can use the machine well.

Q 8 : What materials can the machine process?

The machine is used with a endless diamond wire , which can cut all materials with a hardness lower than diamond, such as optical crystals, sapphires, quartz, ceramics, graphite, corrugated paper, rare metals, jade, silicon crystals, tires, meteorites, stones, magnetic materials, foam cotton etc.

Q 9 : Can you provide customized machines?

We have a professional team of engineers who can customize machines for you according to your materials and needs, and the factory also welcome s you to visit at any time.
