Quick Details
-
Suitable for:
-
Small Cabinet
-
Type:
-
Drop Bolt Lock
-
Voltage:
-
12V
-
Stroke:
-
6cm
-
Current:
-
0.4A at 12VDC
-
Wattage:
-
4.8W
-
Dimension:
-
27*29*18cm
-
Certification:
-
Check with us
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XPOTECH
-
Product Name:
-
Eletro Magnetic Cabinet Locks
-
Suitable for:
-
Small Cabinet
-
Type:
-
Drop Bolt Lock
-
Voltage:
-
12V
-
Stroke:
-
6cm
-
Current:
-
0.4A at 12VDC
-
Wattage:
-
4.8W
-
Dimension:
-
27*29*18cm
-
Certification:
-
Check with us
Electro Magnetic Cabinet Locks from China
>>>Product Specification:
|
Scope of application |
Small Cabinet |
|
|
Standard test condition |
Ambience |
Ambience temperature: 20±2℃ |
|
Relative humidity: 65RH±5% |
||
|
Atmospheric pressure: 1013mbr |
||
|
Power supply |
Stabilized power source |
|
|
Load |
Counter weight |
|
|
Test mode |
Attraction force |
Plunger to be vertical and load down |
|
Residual magnetism |
Plunger to be vertical and load down |
|
|
Holding force |
plunger to be vertical and load down |
|
|
Appearance |
Dimension |
27*29*18cm |
|
Rated parameter |
Voltage |
DC12V |
|
Current |
0.4A(at DC12V 20℃) |
|
|
Wattage |
4.8W |
|
|
DC Resistance |
28Ω±10% at 20℃ |
|
|
Duty cycle |
Electrify 25% |
|
|
Insulation class |
A class |
|
|
Electronic characteristics |
Force |
Stroke 0mm ≥300gf (incipient value) |
|
Stroke 5mm ≥80gf (incipient value) |
||
|
Residual magnetism |
after DC12V applied shall be return at weight of Iron rod 5gf (perpendicular direction) |
|
|
Insulation resistance |
Between coil and frame DC500V normal temperature /humidity,100MΩ |
|
|
Withstand voltage |
Between coil and frame AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA |
|
|
Temperature rise |
After DC12V applied by resistance method 65 deg Max |
|
|
Life |
Repetitious operation for 0.5 million cycle (continuous at DC12V) |
|
|
Lead-wire strength |
adding 0.5kgf (random direction) not chip off |
|
|
Operation temperature / humidity |
-5 to +55 Centigrade 5%RH -- 85%RH |
|

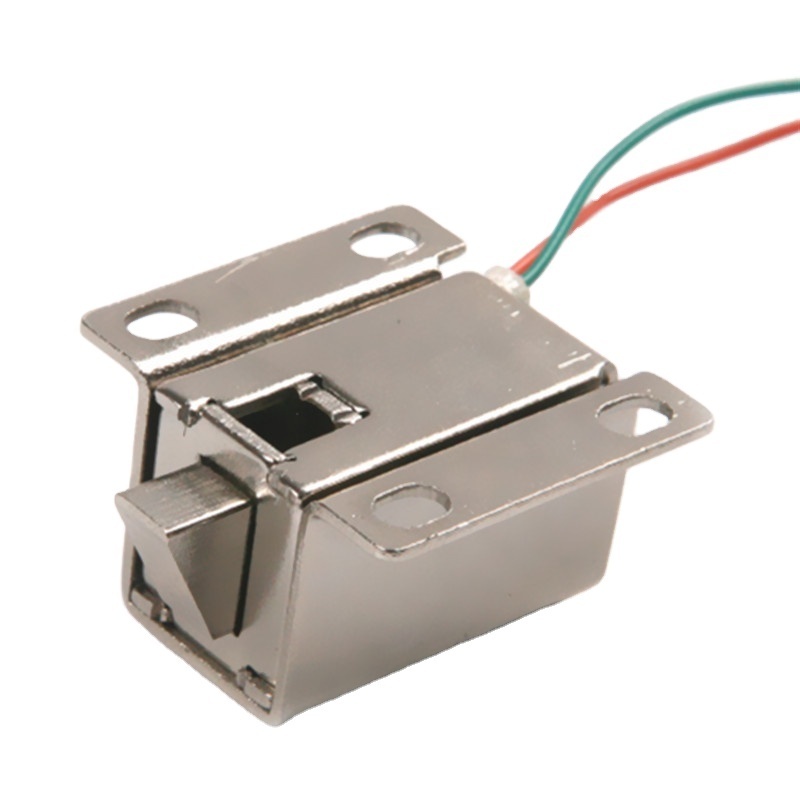

>>>Detail Image of Xpo-217
|
|
>>>One for More Cabinet Control Solution
