Quick Details
-
Max. Loading Capacity:
-
1100L
-
Weight (KG):
-
370 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZH
-
Voltage:
-
220V or 380V or Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
1.5 kW
-
Product Name:
-

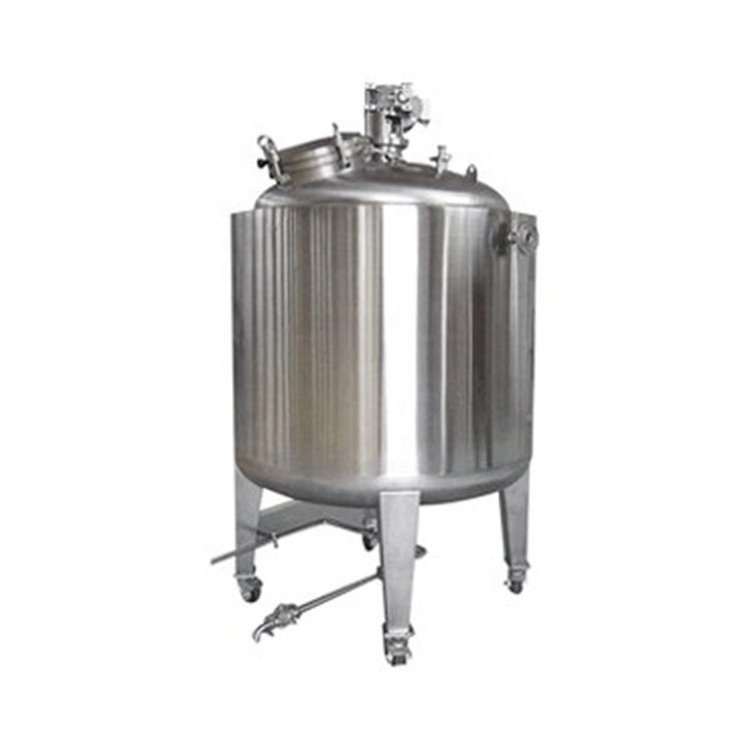

liquid mixing tank
-
Capacity:
-
100-20000L
-
MOQ:
-
1 piece
-
Color:
-
steel true colors
-
Surface treatment:
-
mirror finish, matt polished, 2B
-
Application scope:
-
dairy,food,beverage,cosmetic
-
Max. working pressure:
-
3 bar
-
Packing:
-
plywood or customized
-
Power(W):
-
Customized
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
1100 L
-
Range of Spindle Speed(r.p.m):
-
24 - 120 r.p.m
-
Max. Loading Capacity:
-
1100L
-
Weight (KG):
-
370 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZH
-
Voltage:
-
220V or 380V or Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
1.5 kW
-
Product Name:
-
liquid mixing tank
-
Capacity:
-
100-20000L
-
MOQ:
-
1 piece
-
Color:
-
steel true colors
-
Surface treatment:
-
mirror finish, matt polished, 2B
-
Application scope:
-
dairy,food,beverage,cosmetic
-
Max. working pressure:
-
3 bar
-
Packing:
-
plywood or customized
-
Power(W):
-
Customized
Product Description
Drawings
Application
1. Used as liquid storage tank, liquid composing tank, liquid blending tank, temporary storage tank and hot water tank, etc
2. In fields such as foods, dairy products, fruit juice beverages, chemical industry and biological engineering
Configuration
1. Quick open manhole
2. Various types of CIP cleaners
3. Fly and insect resistant sanitary breathing cover
4. Adjustable triangular bracket
5. Dismountable materials input pipe assembly
6. Thermometer(According to customer requirements
7. Ladder (According to customer requirements)
8. Liquid level meter and level controller
9. Eddy-proof board
How to choose
|
Volume (L)
|
Diameter(mm)
|
Height(mm)
|
Motor power(kw)
|
Outlet(mm)
|
Heat preservation layer(mm)
|
|||||
|
1000
|
1060*1220
|
2500
|
1.1
|
51
|
60
|
|||||
|
1500
|
1160*1500
|
2850
|
1.1
|
51
|
60
|
|||||
|
2000
|
1340*1500
|
2900
|
1.1
|
51
|
60
|
|||||
|
3000
|
1410*2000
|
3400
|
1.5
|
51
|
60
|
|||||
|
4000
|
1620*2000
|
3450
|
1.5
|
51
|
60
|
|||||
|
5000
|
1810*2000
|
3500
|
2.2
|
51
|
60
|
|||||
|
6000
|
1980*2000
|
3550
|
2.2
|
51
|
60
|
|||||
|
7000
|
1930*2440
|
4000
|
3
|
51
|
60
|
|||||
|
8000
|
2060*2440
|
4000
|
3
|
51
|
60
|
|||||
|
9000
|
2180*2440
|
4050
|
4
|
51
|
60
|
|||||
|
10000
|
2300*2440
|
4050
|
4
|
51
|
60
|
|||||
|
12000
|
2270*3000
|
4600
|
5.5
|
51
|
60
|
|||||
|
15000
|
2530*3000
|
4700
|
5.5
|
51
|
60
|
|||||
|
20000
|
2640*3660
|
5400
|
5.5
|
51
|
60
|
|||||
|
Common rotation speed 35, 43, 60 r/min. Stepless speed reducer or dual speed reducer are available.
|
|
|
|
|
|
|||||
