The production line is easy operation and low investment.
The pulping section can work 8hours/day, 16 hours/day or 24 hours/day.
The tissue paper making machine must work 24 hours/day.
The good raw material of wood pulp sheet, or bagasse pulp board, can make good quality tissue paper.
The user can add the recycle paper pulp with the good pulp.
The technology is very easy and effective.
- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
paper mill, paper pulp making plant, recycle paper mill, tissue paper mill
-
Place of Origin:
-
Shandong, China
-
Weight:
-
20000 kg
-
Product Name:
-
tissue paper making line
-
Material 1:
-
wood pulp board
-
Material 2:
-
bagasse pulp sheet
-
Function:
-
pulp making and paper making
-
Certification:
-
CE / ISO9001
-
Capacity:
-
1-10 t/d
-
Investment:
-
Low cost
-
Operation:
-
easy
-
Environmental protection:
-
no pollution
-
Sewage:
-
No discharge
Quick Details
-
Type:
-
Pulping Equipment
-
Production Capacity:
-
200 m/min
-
Max. workable width:
-
1000mm
-
Applicable Industries:
-
paper mill, paper pulp making plant, recycle paper mill, tissue paper mill
-
Place of Origin:
-
Shandong, China
-
Weight:
-
20000 kg
-
Product Name:
-
tissue paper making line
-
Material 1:
-
wood pulp board
-
Material 2:
-
bagasse pulp sheet
-
Function:
-
pulp making and paper making
-
Certification:
-
CE / ISO9001
-
Capacity:
-
1-10 t/d
-
Investment:
-
Low cost
-
Operation:
-
easy
-
Environmental protection:
-
no pollution
-
Sewage:
-
No discharge
Product Description
easy operation and no pollution
tissue paper production line
from reccyled paper / bagasse pulp sheet / wood pulp sheet
--pulp sheet conveyor
/ pulper / l.c refiner / vibrating screen/pressure screen/ paper machine

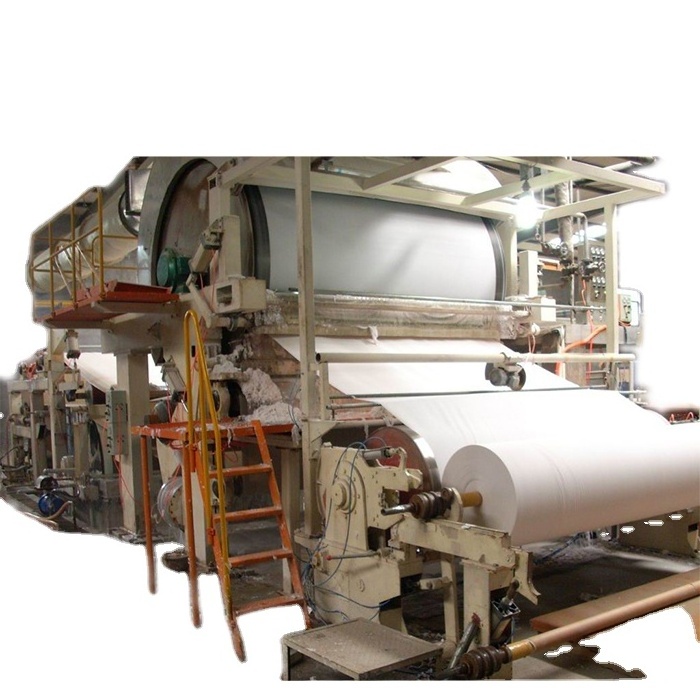

The tissue paper machine is mainly suitable for making low quantitative, high grade tissue paper and cultural paper.
It spurns the old cylinder paper machine’s abuse of speed, high quantitative, low efficient, complicated operation and so on, and changes the common cylinder mould cage into slanting dehydrating mould cage, and change activity arc type board headbox into press headbox, and changes normal atmospheric pressure formation into compressing formation, and changes manual compression into pneumatic compression, and changes the scrapper into moving scrapper, and other more than 10 kinds of improvement. The machine has high degree of automatic and is easy to operate.
Our company can supply a whole production line (street), from the pulp making machines to paper making machines.
It’s main features:
1. low investment with easy pulping system
2. no pollution and clean workshop
3. no sewage to discharge
4. by manual or by automatic
5. energy save and easy operation
6.
the tissue can be converted to napkin paper, toilet paper
-
Description of
-
tissue paper production line
Detailed Images
Hydrapulper
to beat the recycled paper to paper pulp.
Vibrating screen
to remove the big plastic or knotter out from the paper pulp.
Hc cleaner
to remove the sands or nails out from the paper pulp.
Deinking cell
to remove the black ink out from the paper pulp.
Double disc refiner
to get good beating degree SR°.
Pressure screen
to remove out the little impurities.
Lc cleaner
to remove out the little heavy impurities.
Horizontal agitator
to mix the paper pulp.
Pulp pump
to transport the paper pulp.
The frame body is made of cast iron, and vat is made of carbon steel or stainless steel 304, and the cylinder is made of carbon steel or stainless steel 304.
The motor is from Chinese famous or Siemense or user-specified brand.
The motor is from Chinese famous or Siemense or user-specified brand.
Size Information
Technical parameter
|
Model
|
XY1092
|
XY1575
|
XY1760
|
XY1880
|
XY2362
|
|
Designed speed (m/min)
|
250
|
250
|
250
|
250
|
250
|
|
Working speed (m/min)
|
130-200
|
130-200
|
130-200
|
130-200
|
130-200
|
|
Production quantity (g/m2)
|
13-38
|
13-38
|
13-38
|
13-38
|
13-38
|
|
Capacity (t/d)
|
3-4
|
5-6
|
6-7
|
7-8
|
8-10
|
|
Cylinder diameter (mm)
|
2500×1500
|
2500×2050
|
2500×2250
|
2500×2350
|
2500×2850
|
|
Screen cage diameter (mm)
|
1500
|
1500
|
1500
|
1500
|
1500
|
|
Main motor power (kw)
|
Y225M-6/30
|
Y250M-6/37
|
Y280M-6/45
|
Y280S-6/45
|
Y280M1-6/55
|
|
Take up power (kw)
|
Y90L-4/1.5
|
Y100L-4/2.2
|
Y100L-4/2.2
|
Y112M1-4/4
|
Y112M1-4/4
|
|
Main motor gange (mm)
|
1900
|
2400
|
2600
|
2700
|
3300
|
Packing&Shipping
It can be packaged by container, or by wood case, or by plastic bags.
After Sales Service
1. We are responsible for correctly guiding the installation, commissioning and trial production of equipment for free, to ensure that we reach the design capacity within the planned time.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance, equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual travel.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance, equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual travel.
Company Introduction
Shandong Xuridong Machinery Co.Ltd, since 2001, produces wonderful waste water treatment equipment and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions, that are technologically advanced, highly efficient and of superior quality. We produce these products in great volume at our main manufacturing facility which spans nearly 30,000m2. Our prime location is in the “dinosaur capital” – Zhucheng City, Shandong Province. This location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea. Also, we are in very close proximity to a very famous port city – Qingdao in northern China.
Our Services & Strength
Product design and development is a prime concern at Xuridong Machinery. Our technology department is composed of 12 talented designers, including 2 highly-skilled senior engineers. With their wealth of comprehensive experience and impressive expertise, we have achieved a total of 32 patents over the past few years. These accomplishments have been a powerful driving force enabling our company to continue to focus heavily upon innovation and efficiency while supplying new and upgraded products, in response to dynamic and ever-changing market demands.
Add: No.68, Tieyuan Road, Zhucheng City, Shandong Province, China------262200
Our machining workshop has been equipped with only the most advanced and finest quality production machinery available. This machinery includes: flame and plasma cutting machines, floor-type large lathes, horizontal milling machines, horizontal boring mills, vertical knee-and-column mills, wire-cut EDM machines and so forth. In addition we utilize a fully-computerized dynamic balancing machine that is very suitable for high-precision balancing tasks. It takes only 10 seconds for this machine to provide required measurements. Last but not least, our electronic components are all purchased from Siemens, Schneider and other world-renowned brands. This accompanied by our in-house developed control cabinets enables us to provide a powerful guarantee on the quality of all electrical control systems.
We have established a state-of-the-art production workshop to create all components required by our diversified papermaking machines and environmentally-friendly products， especially waste water treatment machines. Once the processing has been finished, these components will be sent to a 12,000m2 assembly workshop where we can complete assembly, quality control procedures and other manufacturing processes. Each year the output value of our products can reach up to 150 million RMB.
CONTACT WITH U S
We have established a state-of-the-art production workshop to create all components required by our diversified papermaking machines and environmentally-friendly products， especially waste water treatment machines. Once the processing has been finished, these components will be sent to a 12,000m2 assembly workshop where we can complete assembly, quality control procedures and other manufacturing processes. Each year the output value of our products can reach up to 150 million RMB.
CONTACT WITH U S
Mr. Bertram Young
Position: Trade manage and Engineer
Shandong Xuridong Machinery Co.,Ltd.
Shandong Xuridong Machinery Co.,Ltd.
Wechat: Y15253622917
Tel/Whatsapp: +8615253622917
Mob: 0086 13563631266； 0086 15253622917
E-mail: yangshengfeng@xuridong.com jinyang2088@foxmail.com
Tel/Whatsapp: +8615253622917
Mob: 0086 13563631266； 0086 15253622917
E-mail: yangshengfeng@xuridong.com jinyang2088@foxmail.com
Add: No.68, Tieyuan Road, Zhucheng City, Shandong Province, China------262200
Customer Photos
FAQ
01. How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
