Quick Details
-
Model Number:
-
RS-O3-*-2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Renke
-
Brand:
-
ozone sensor
-
Product name:
-
Ozone Concentration Sensor
-
Keywords:
-
o3 sensor
-
Warranty:
-
1 Year
-
Certificate:
-
CE, ISO9001
-
Power supply:
-
DC 10~30V
-
Output:
-
rs485,4~20mA,0~5V,0~10V
-
Measure range:
-
0-10ppm/0-100ppm
-
Accuracy:
-
±6%FS(@5ppm, 25℃, 50%RH)
-
Operating temperature:
-
-10℃~55℃, 15%RH-90%RH (no condensation)
-
Data and new time:
-
1s
Quick Details
-
Use:
-
o3 sensor
-
Mounting Type:
-
wall mount
-
Description:
-
O3 Sensor
-
Model Number:
-
RS-O3-*-2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Renke
-
Brand:
-
ozone sensor
-
Product name:
-
Ozone Concentration Sensor
-
Keywords:
-
o3 sensor
-
Warranty:
-
1 Year
-
Certificate:
-
CE, ISO9001
-
Power supply:
-
DC 10~30V
-
Output:
-
rs485,4~20mA,0~5V,0~10V
-
Measure range:
-
0-10ppm/0-100ppm
-
Accuracy:
-
±6%FS(@5ppm, 25℃, 50%RH)
-
Operating temperature:
-
-10℃~55℃, 15%RH-90%RH (no condensation)
-
Data and new time:
-
1s

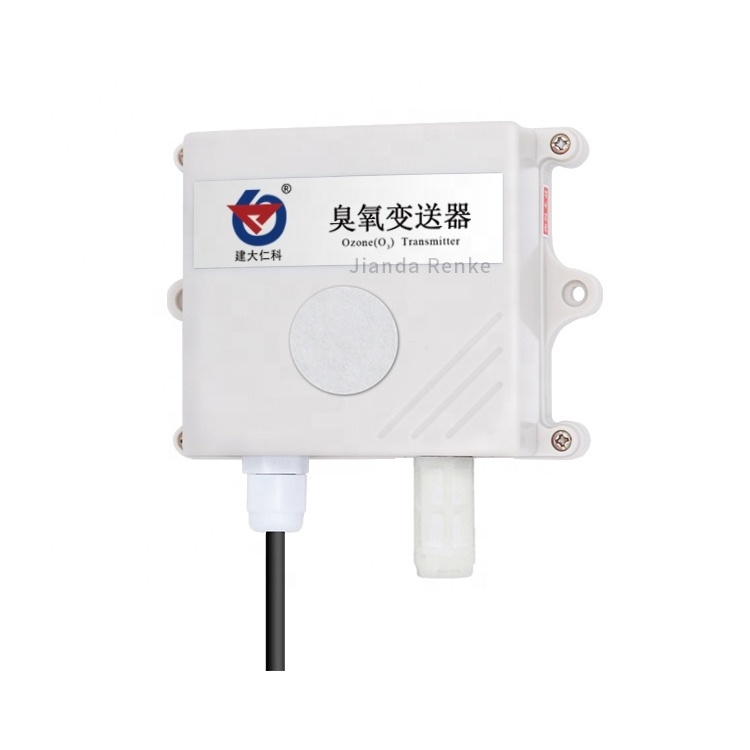

Wall Mount Ozone Gas Analyzer RS485 4~20mA 0~5V 0~10V O3 Sensor Ozone Concentration Sensor
Product Description
The ozone sensor adopts electrochemical technology to measure the O3 concentration, and the response is rapid and sensitive, and the ozone concentration can be reliably detected; the equipment is 10-30V wide-voltage power supply, and the enclosure has a high degree of protection, which can adapt to various harsh conditions on site.
|
RS485 OUTPUT
|
|
|
ANALOG OUTPUT
|
|
|
||||
|
Power supply
|
10~30V DC
|
|
Power supply
|
10~30V DC
|
|
||||
|
Power consumption
|
0.01W
|
|
Power consumption
|
0.12W
|
|
||||
|
Measure range
|
0~10ppm, 0~100ppm
|
|
Measure range
|
0~10ppm, 0~100ppm
|
|
||||
|
Accuracy
|
±6%FS(@5ppm, 25℃, 50%RH)
|
|
Accuracy
|
±6%FS(@5ppm, 25℃, 50%RH)
|
|
||||
|
Operating temperature
|
-10℃～55℃, 15%RH-90%RH (no condensation)
|
|
Operating temperature
|
-10℃～55℃, 15%RH-90%RH (no condensation)
|
|
||||
|
|
0~10ppm
|
0.01ppm
|
|
0~10ppm
|
0.01ppm
|
||||
|
|
0~100ppm
|
1ppm
|
|
0~100ppm
|
1ppm
|
||||
|
Stability
|
≤7% signal value/year
|
|
Stability
|
≤7% signal value/year
|
|
||||
|
Output signal
|
RS485
|
|
Output signal
|
4~20mA, 0~5V, 0~10V
|
|
||||
Detailed Images
Feature of
ozone sensor
Using high-sensitivity gas detection probe imported from the United States, and using high-performance signal acquisition circuit, it can accurately measure the concentration of ppm-level O3, the signal is stable, and the accuracy is high.
The product adopts a wall-mounted waterproof shell, which is easy to install and has a high degree of protection.
RS485/0-20MA/0-5V/0-10V signal output
Output method
Related Products
Application
Customer Reviews
Company Introduction
Shandong Jianda Renke Electronic Technology Co., Ltd. is a leading environmental monitoring high technology enterprise in China.
Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.
Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
