- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Haicable
-
Voltage:
-
other
-
Dimension(L*W*H):
-
900*660*1220mm
-
Weight (KG):
-
190
-
Model Number:
-
HB-200W
-
Type:
-
Hydraulic Cutting Bending Punching tool
-
Package:
-
Wood Carton
-
Weight:
-
170kg
-
size:
-
900*660*1220mm
Quick Details
-
Max. Thickness (mm):
-
200 mm
-
Max. Width (mm):
-
12 mm
-
Place of Origin:
-
Shanghai, China, Shanghai, China
-
Brand Name:
-
Haicable
-
Voltage:
-
other
-
Dimension(L*W*H):
-
900*660*1220mm
-
Weight (KG):
-
190
-
Model Number:
-
HB-200W
-
Type:
-
Hydraulic Cutting Bending Punching tool
-
Package:
-
Wood Carton
-
Weight:
-
170kg
-
size:
-
900*660*1220mm
Product Description

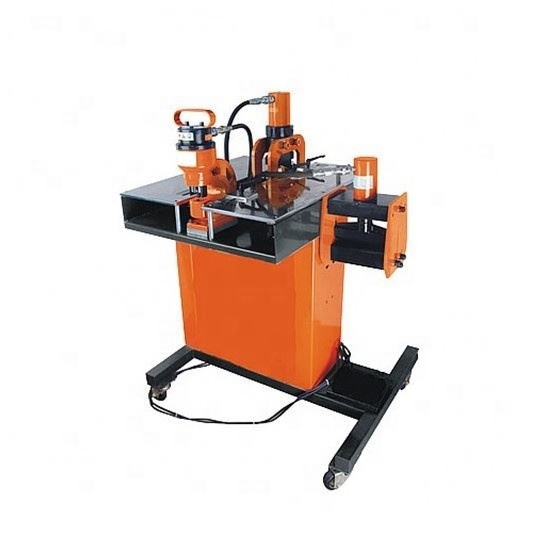

3 in 1 Hydraulic Bus Bar Tool HB-200W
Feature:
• Single action
*3 in 1 Cutting Bending Punching Bus bar
* Robust and stiff frame, strong structure
*High quality cutting, bending and punching, fast cycle time
*High operating safety with built-in safety-system
* With the help of hydraulic power, easy and quick operation can be achieved.
*Include: CB-200A, CH-70, CWC-200 and EHP-63A
Feature:
• Single action
*3 in 1 Cutting Bending Punching Bus bar
* Robust and stiff frame, strong structure
*High quality cutting, bending and punching, fast cycle time
*High operating safety with built-in safety-system
* With the help of hydraulic power, easy and quick operation can be achieved.
*Include: CB-200A, CH-70, CWC-200 and EHP-63A
Specification
|
Model
|
HB-200W
|
|
Max Cutting Capacity
|
200*12mm
|
|
Max Punching Capacity
|
Ø11.1mm-Ø20.6mm
Thickness 12mm |
|
Max Bending Capacity
|
200*12mm
|
|
Power
|
220V/50HZ
|
|
Rated Pressure
|
700kg/cm2 (10000psi)
|
|
Punching
Dies |
Ø11.1mm Ø14.3mm Ø17.5mm Ø20.6mm (Round Dies)
|
|
Size
|
900*660*1220mm
|
|
Weight
|
170kg
|
Application:
The bus bar main work for switch board, distribution box and electrical working, State Grid construction, underground cable
construction, Building construction etc.
The bus bar main work for switch board, distribution box and electrical working, State Grid construction, underground cable
construction, Building construction etc.
Packing & Delivery
Shipping note
1. Delivery day: delivery with 1-7days
2. If you parce doesn't deliver,be damaged , lost or any other questions please contact us,we are glad to help you.
1. Delivery day: delivery with 1-7days
2. If you parce doesn't deliver,be damaged , lost or any other questions please contact us,we are glad to help you.
