Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Dimension(L*W*H):
-
1495*870*1150mm
-
Weight (KG):
-
1000 KG
-
Product name:
-

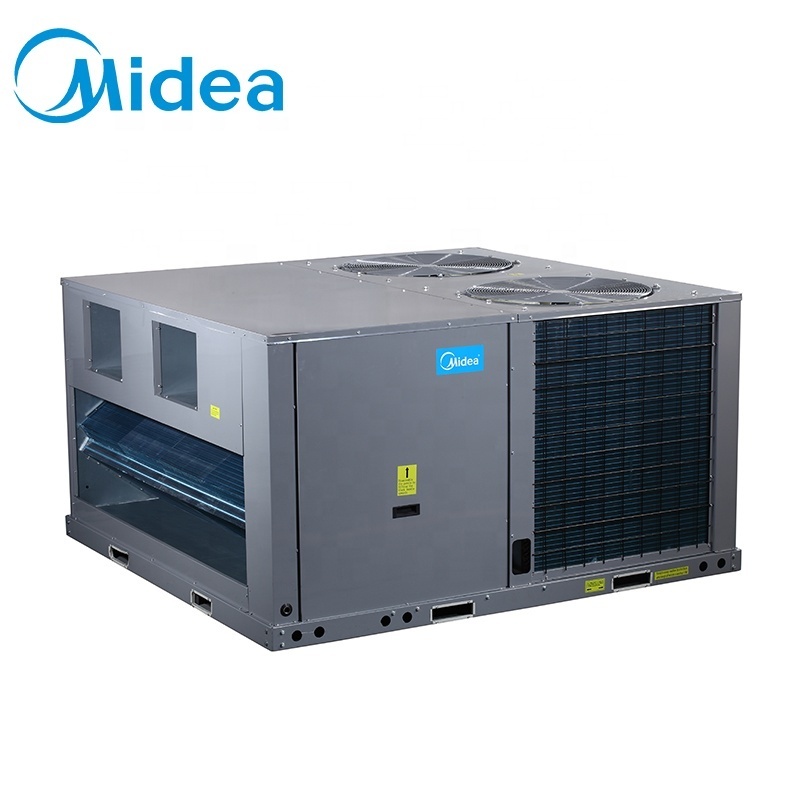

Midea Rooftop Packaged Unit Air conditioner
-
Power:
-
380-415/3/50V/Ph/Hz
-
Cooling capacity of heat pump system:
-
17-98kw
-
Heating capacity of heat pump system:
-
26-111.5kw
-
Net weight:
-
229kg-970kg
-
Gross weight:
-
234kg-1000kg
-
Ambient temp.operation range(Cooling):
-
10~46℃
-
Ambient temp.operation range(Heating):
-
-9~24℃
-
Function:
-
Cooling Heating
-
Brand:
-
Midea
Quick Details
-
Type:
-
AIR COOLER
-
Mounting:
-
Floor Standing
-
Airflow:
-
30000m³/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Dimension(L*W*H):
-
1495*870*1150mm
-
Weight (KG):
-
1000 KG
-
Product name:
-
Midea Rooftop Packaged Unit Air conditioner
-
Power:
-
380-415/3/50V/Ph/Hz
-
Cooling capacity of heat pump system:
-
17-98kw
-
Heating capacity of heat pump system:
-
26-111.5kw
-
Net weight:
-
229kg-970kg
-
Gross weight:
-
234kg-1000kg
-
Ambient temp.operation range(Cooling):
-
10~46℃
-
Ambient temp.operation range(Heating):
-
-9~24℃
-
Function:
-
Cooling Heating
-
Brand:
-
Midea
1. Providing HVAC System Engineering Design Service.
Beijing Midea can provide heating, ventilation and air conditioning solutions.
2. Supply HVAC all material, including air conditioning, ventilation, installation accessories, etc.
Midea can supply HVAC all material including air conditioning equipment and copper pipe,rubber insulation, ventilation tunnel,fanmotor, grill and diffuser,etc. Midea HVAC provide one-stop service, help you save money and time.
3. HVAC Commissioning service.
Midea HVAC commissioning service mainly includes stand-alone test operation and debugging of air conditioning equipment;measurement and debugging of air conditioning water system; measurement and debugging of system cold and hot air volume;testing and debugging of smoke exhaust system; measurement and adjustment of indoor parameters; inspection of automatic adjustment system;Inspection of inspection system, adjustment and linkage operation, adjustment of flexible duct length, etc.
Product Description
6-30TON ClimaCreator Series Cooling&Heating
4-30TON ClimaCreator Series Cooling Only
Convenient choice for large buildings and applications
Adjustable pulley/Durable construction/Flexible installation/External pressure gauge ports
Specifications
|
|
Cooling&Heating
|
Cooling Only
|
|
|
Type
|
Rooftop Packaged Unit
|
|
|
|
Power Supply (Ph-V-Hz)
|
3Ph~380-415V~50HZ
|
|
|
|
Cooling Capacity (kW)
|
22~98
|
14.1~105.0
|
|
|
Cooling Capacity (kBtu/h)
|
75~335
|
48~360
|
|
|
Air flow(CFM)
|
2800~11200
|
1750.0~12000.0
|
|
|
Ambient temperature
|
10°C-46°C/-9°C-24°C
|
10°C - 52°C
|
|
Design flexibility
Compact design. Flanges of air flow inlet and outlet as standard. It is suitable for installation in rooftop and ground.
Durable construction
Pre-painted exterior cabinet panels pass 1000 hours Salt Spray Test for durability. Weather-resistant construction with capped
steams and sloped top panels. G90 galvanized heavy gauge plate conforming to ASTM-A-653.
steams and sloped top panels. G90 galvanized heavy gauge plate conforming to ASTM-A-653.
Multi-protection design
Multi-measurement to ensure units operate normally and reliably: System current protection, High/low pressure switch protection,
Temperature sensor on/off protection, etc. Three-phase protector can be customized.
Temperature sensor on/off protection, etc. Three-phase protector can be customized.
Easy Installation
Convenient for wires connection
Removable access door on the electric box.It is easy to move the cover of the
electric box
Only connect the wires of power supply, and no need to connect any signal wires.
Easily cpnnect the drainage pipe
Reserved external
drainage port, quickly and accurately connect rhe rubber
drainage pipe
Controllers
1.
Wired controller as standard.
2.
Besides standard wired controller, others can be chosen too.
1.
Other brand thermostat can be matched as optional solution.
2.
Centralized control function can be achieved through the centralized controller as optional. MD-NIM01 should be connected between rooftop package units and centralized controller.
Midea Project Show
What products we can privide?
Midea HVAC air condition solutions (DC Inverter VRF aircon, VRF Indoor Units, Water-cooled Chillers, Air Handling Units, Large Splits, Rooftop Package Units, CCU (Compressor Condensing Units) Fan Coil Units,) Heating & Hot Water Solutions (Sanitary Hot Water-Combo/Split Type, Pool/Spa, M-Thermal Split/Mono Type air source heat pump, Commercial Application). Please contact us for more information.
Related Products
Information needed by Midea Group’s management system before prepare quotation details for you.
1. Project name: building name or building type, such as xxx office project, residential house project etc.
2. Project accurate address;
3. Your company contact information & address;
4. Please provide us product list or engineer drawing with product type marked.
5. When you expect to process purchase & logistics for this project ?
6. Is it a tender project or not ? Because tender project you may need our authorization letter.
1. Project name: building name or building type, such as xxx office project, residential house project etc.
2. Project accurate address;
3. Your company contact information & address;
4. Please provide us product list or engineer drawing with product type marked.
5. When you expect to process purchase & logistics for this project ?
6. Is it a tender project or not ? Because tender project you may need our authorization letter.
Company Introduction
Midea HBT (HVAC & Building Technologies) is a key division of the Midea Group, a leading solution provider of energy sources, elevators, control systems, and heating, ventilation & air conditioning.
Midea HBT has become a global leader in the HVAC and building management industry.
Beijing Midea Company relying on the Midea Group’s technical background and brand,global network,focus on Midea full range of products,provide design deepening,product supply,construction supervision,technical guidance,operation and maintenance of a complete system integration services for overseas projects.
