Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Model Number:
-
BS
-
Diameter:
-
customized
-
Product name:
-
round shaft helical piers
-
Shaft Material:
-
conforms to ASTM A500 GRADE B
-
Helices material:
-
ASTM A36 Hot rolled plate
-
Load Capacity:
-
greater
-
Size:
-
all sizes or as your requirement
-
Degress:
-
45 degress
-
Corrosion protection:
-
conform to ASTM A153 standard
-
Customized:
-
available
-
Sample:
-
available
-
Surface treatment:
-
Hot Dip Galvanized
Quick Details
-
System of Measurement:
-
INCH
-
Material:
-
Steel
-
Capacity:
-
Strong
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Model Number:
-
BS
-
Diameter:
-
customized
-
Product name:
-
round shaft helical piers
-
Shaft Material:
-
conforms to ASTM A500 GRADE B
-
Helices material:
-
ASTM A36 Hot rolled plate
-
Load Capacity:
-
greater
-
Size:
-
all sizes or as your requirement
-
Degress:
-
45 degress
-
Corrosion protection:
-
conform to ASTM A153 standard
-
Customized:
-
available
-
Sample:
-
available
-
Surface treatment:
-
Hot Dip Galvanized

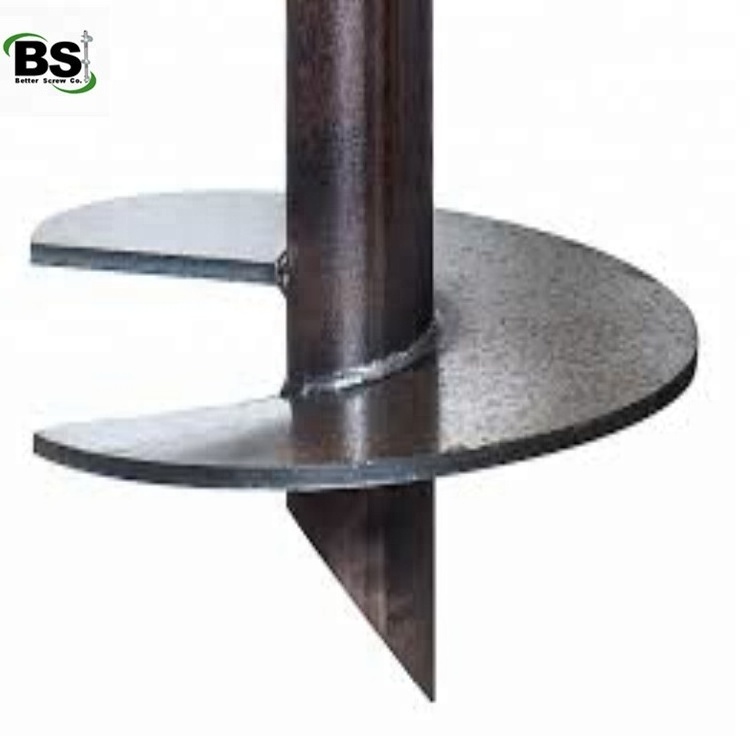

Round shaft Helical pier for foundation repair
Helical piers , also known as anchors, screw piles or helical piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and most importantly transfers the weight of the structure to load bearing soil.
Helical piles have been used all over the world to secure residential and commercial buildings. Originally designed for lighthouses they are widely used for many other deep foundation applications.
| Shaft Size (inch) | Wall Thick(inch) | Helix Thick(inch) | Lead Length(ft) | Helix Size(inch) | Extension Length (ft) |
| 2.875 OD. | 0.262 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 3.00 OD. | 0.238 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 3.50 OD. | 0.254/0.300 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 4.50 OD. | 0.290/0.337 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 5.50 OD. | 0.362 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 6.625 OD. | 0.562 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
1.
Packaging:
Usually we shipping the products in 20ft’ container or according to your demand.
2.
Shipping:
15-30 days after confirming your order.
If you want to konw more information about the product what you want,please contact me and i will reply you soon.
1. Are your products the same with the ones in our local market?
Yes, our welding performed to America Standard AWS D1.1&EURO Standard EB287 and
we manufactured millions of helical piers and a series of accessories for North American/Europen/Australian etc market during the past 10 years and very familiar with every detail of these products. We believe that there is no company in China is more professional than us on this product
.
2. What is the minimum order quantity?
The MOQ for helical piers is 10 tons for per specification. You can mix different sizes of posts to make up a full container. If you want to know the MOQ for other products, please feel free to contact us.
3. How long is your lead time?
Usually our production time for one container goods is about 30-40 days, and the shipping time
depends on your place of delivery .
4. What is your payment term?
Usually our payment term is T/T. We can receive the payment 1-3 days after you made payment.
5. Is it complicated to purchase your products if we have never imported?
The whole process is very simple. We can take charge of the whole process including producing inChina and shipping the products directly to your company. Our shipping agent in USA/Canada can deal with the customs clearance and inland transportation affairs for you. You just need to stay in your office to check our products.
