Quick Details
-
Certificates:
-
ISO 9001:2008/CE/TUV/BV/IFAI
-
Frame::
-
hard pressed extruded aluminum alloy 6061 / T6
-
Roof Cover:
-
850g/sqm double PVC-coated polyester textile
-
Connectors:
-
Hot-DIP Galvanized
-
Fixing Solution:
-
ground anchor, expandable bolt, weight plate, etc.
-
Wind loading:
-
120km/h
-
Temperature Resistance:
-
-30 degree Celsius ~ +70 degree Celsius
-
Side Wall::
-
PVC walls,glass wall,ABS wall,sandwich panel wall,etc.
-
Service Life:
-
More than 15 years
Quick Details
-
Brand Name:
-
Timi
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AT, Event tent
-
Certificates:
-
ISO 9001:2008/CE/TUV/BV/IFAI
-
Frame::
-
hard pressed extruded aluminum alloy 6061 / T6
-
Roof Cover:
-
850g/sqm double PVC-coated polyester textile
-
Connectors:
-
Hot-DIP Galvanized
-
Fixing Solution:
-
ground anchor, expandable bolt, weight plate, etc.
-
Wind loading:
-
120km/h
-
Temperature Resistance:
-
-30 degree Celsius ~ +70 degree Celsius
-
Side Wall::
-
PVC walls,glass wall,ABS wall,sandwich panel wall,etc.
-
Service Life:
-
More than 15 years
Product Description
|

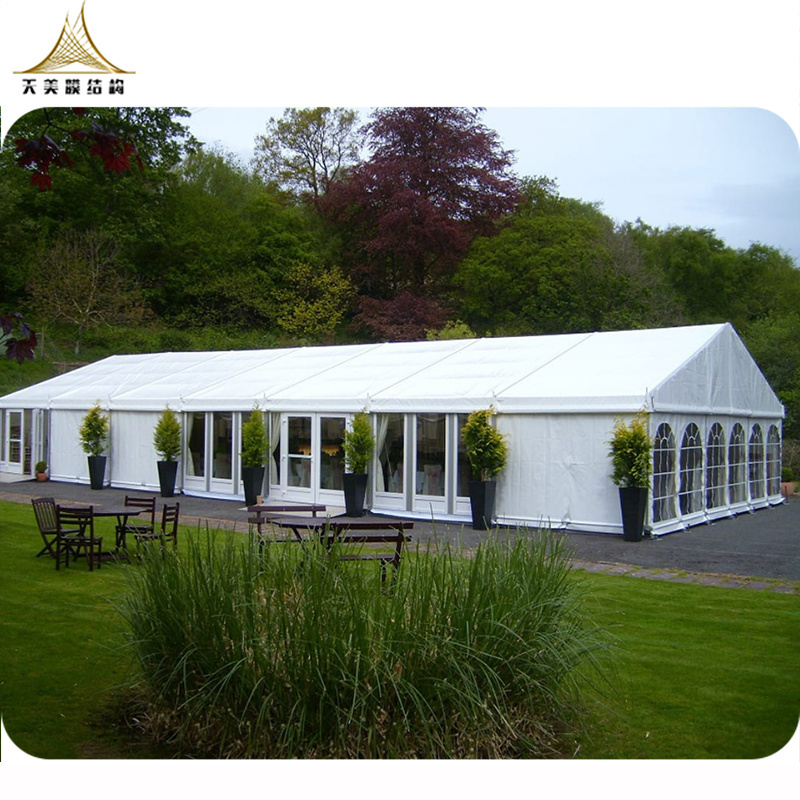

Event tent series
|
|
|
|
|
|
|
||||||
|
Type
|
Span(m)
|
Side Height(m)
|
Top Height(m)
|
Longest Part(m)
|
Cell Spacing(m)
|
Max wind load
|
||||||
|
Y003003
|
3
|
2.70
|
3.23
|
3.00
|
3
|
80km/h
|
||||||
|
Y004003
|
4
|
2.70
|
3.41
|
3.00
|
3
|
80km/h
|
||||||
|
Y005003
|
5
|
2.70
|
3.59
|
3.05
|
3
|
80km/h
|
||||||
|
Y006003
|
6
|
2.70
|
3.78
|
3.17
|
3
|
80km/h
|
||||||
|
Y008003
|
8
|
2.70
|
4.20
|
4.35
|
3
|
80km/h
|
||||||
|
Y010003
|
10
|
2.70
|
4.53
|
5.36
|
3
|
80km/h
|
||||||
|
Y012003
|
12
|
2.70
|
4.87
|
6.35
|
3
|
80km/h
|
||||||
|
Span Size: 3 - 60m (10 - 200ft) are all available.
|
|
|
|
|
|
|
||||||
Specification:
*
Frame struss
: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
* Fabric cover : high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
* Connector : strong hot-dip galvanized steel
* Fabric cover : high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
* Connector : strong hot-dip galvanized steel
*
Allowed temperature condition
: -30 degree Celsius~+70 degree Celsius
* Wind load : max. 100km/h (can be reinforced)
* Snow load : 75kg/sqm (snow can't stay if use big degree roof pitch design)
* Easy to be assembled and dismantled, movable.
* No pole inside, 100% available interior space.
* Wind load : max. 100km/h (can be reinforced)
* Snow load : 75kg/sqm (snow can't stay if use big degree roof pitch design)
* Easy to be assembled and dismantled, movable.
* No pole inside, 100% available interior space.
