Quick Details
-
Applicable Models:
-
Fit for most of cars
-
Combination:
-
other
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MS309PRO
-
Warranty:
-
1 Years
-
Languages:
-
Chinese.English.Spanish.French.German.Dutch.
-
Applicable Vehicle:
-
Most Cars Can Be Used
-
Dimensions:
-
123x 62 x 21mm
-
Product Name:
-
Car OBD2 EOBD Code Scanner
-
Display:
-
2.4inches
-
Operating Temperature:
-
0 ~ 60 Centigrade
Quick Details
-
Car Fitment:
-
Bahman
-
Voltage:
-
no, 12~24V
-
Power:
-
no
-
Applicable Models:
-
Fit for most of cars
-
Combination:
-
other
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MS309PRO
-
Warranty:
-
1 Years
-
Languages:
-
Chinese.English.Spanish.French.German.Dutch.
-
Applicable Vehicle:
-
Most Cars Can Be Used
-
Dimensions:
-
123x 62 x 21mm
-
Product Name:
-
Car OBD2 EOBD Code Scanner
-
Display:
-
2.4inches
-
Operating Temperature:
-
0 ~ 60 Centigrade

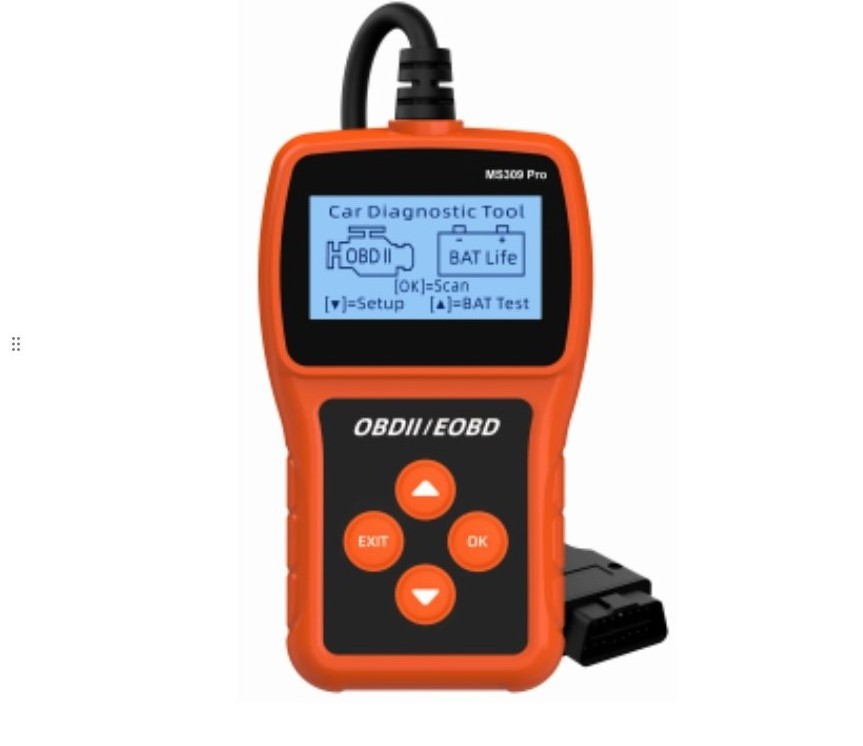

OBD2 Code Scanner CAN BUS car Code Reader OBD II Diagnostic Tool
1.OBD II CONNECTOR - Connects the Car Professional Scan
Tool to the vehicle’s Data Link Connector (DLC).
2.LCD DISPLAY - Indicates test results.
3.UP button - Rollup the menu and submenu in menu screen.
4. DOWN button – Roll down the menu and submenu in menu screen.
5. EXIT button – Cancel the operation or exit.
6. OK button- Confirms a selection (or action) from a menu list.
Specifications
1)Display: 2.4-inch,128 x 64 pixel
2)Operating Temperature:0℃ to 60°C (32℉ to 140 ℉)
3)Storage Temperature:-20℃ to 70°C (-1℉ to 158℉)
4)Power:5.0V to 18.0V provided via vehicle battery
5)Dimensions(LxWxH):133 mm (5.2”)x 78 mm (3.1”)x21 mm (0.82”)
6)Net Weight: 138 g (0.3lb)
Accessories Included
1)QR code On the back of the product for User’s Manual download - Instructions on tool operations
2)OBD2 cable -- Provides power to tool and communicates between tool and vehicle.
Support protocol
1.sAE J1850 pwM(41.6kbaud)
2.sAE J1850 Vpw(10.4kbaud)
3.lso9141-2(5 baud init, 10.4kbaud)
4.lso14230-4 kwp(5 baud init, 10.4 kbaud)
5.lso14230-4 kwp(fast init, 10.4 kbaud)
6.lso15765-4 CAN(11bit lD, 500 kbaud)
7.lso15765-4 CAN(29bit lD, 500 kbaud)
8.lso15765-4 CAN(11bit lD, 250 kbaud)
9.lso15765-4 CAN(29bit lD, 250 kbaud)
SCANNING FUHNCTIONS
1. Support OBDII/EO nine standard protocols to read automotive engine fault codes
2, clear engine fault codes
3, vehicle fault freeze frame
4, I/m ready status
5, vehicle information
6, real-time data flow
7, data flow graph (with all data flow graphics)
8, battery voltage detection
9, battery voltage monitoring
10, battery life detection (exclusive function)
