Tenghong TH-658A Hydraulic Computerized Auto-cement Automatic Side and Heel Shoes Making Lasting Machines

Tenghong TH-658A Hydraulic Computerized Auto-cement Automatic Side and Heel Shoes Making Lasting Machines

FOB Reference Price: Get Latest Price

≥1 Pieces

US $22000

≥3 Pieces

US $21000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Tenghong

Voltage:: 380v, 380v/50HZ(as Customers' Request )

Power:: 2200, 2.2kw

Dimension(L*W*H):: 1700*1300*1750

Weight:: 1045, 1045kg

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Computerized Automatic Side And Heel Lasting Machine

Keyword:: Shoe Machine

Keywords 2:: Shoe Lasting Machine

Dimension:: 1700x1300x1750mm

Color:: customerizable

Quick Details

Application:: Shoe Factory

Production Capacity:: 1800

Place of Origin:: Guangdong, China

Brand Name:: Tenghong

Voltage:: 380v, 380v/50HZ(as Customers' Request )

Power:: 2200, 2.2kw

Dimension(L*W*H):: 1700*1300*1750

Weight:: 1045, 1045kg

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Computerized Automatic Side And Heel Lasting Machine

Keyword:: Shoe Machine

Keywords 2:: Shoe Lasting Machine

Dimension:: 1700x1300x1750mm

Color:: customerizable

Products Description

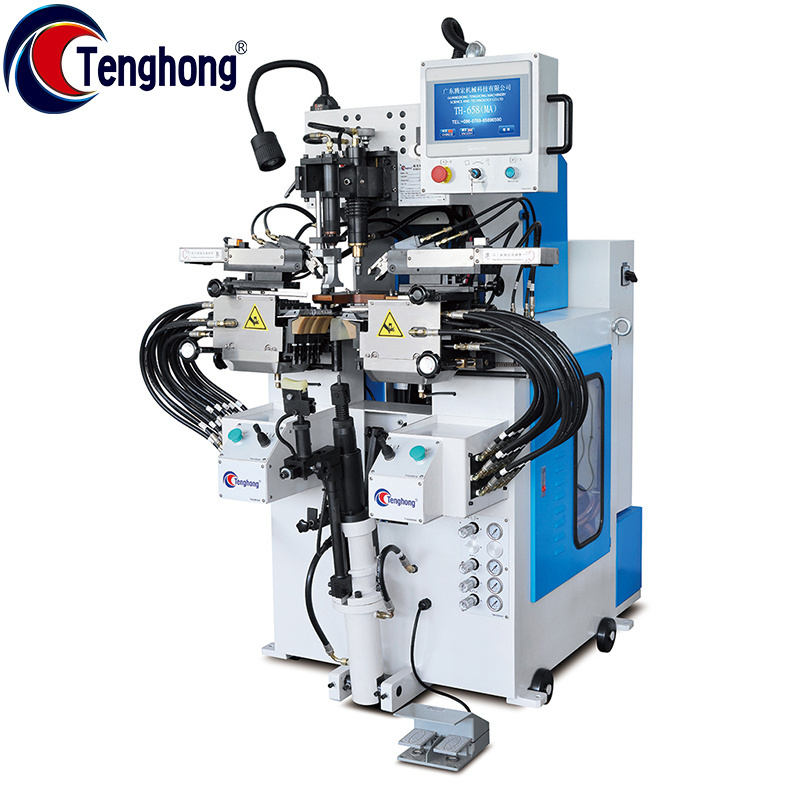

TH-658A/B Computerized Automatic Side And Heel Lasting Machine

This machine can make the shoes forepart and rear parts of the lasting jobs once completed. the PLC system is equipped with the touch screen to operate the machine with the graphical symbols. the setting of the parameters(time and stroke)is by numerical key in. With the protection of the key switch to avoib the reading or changing by the non-authorized. error diagnostic readable on touch screen.

The heel band is transmitted by the chain mechanism. the side lasting device is equipped with four fingers lasting structure, with the designed function for the overlapped lasting area with the finger lasting mechanism is designed with the adjustable left and right balance. also the two step operation pressure setting two pincers are provided to achieve a special counter pull in side and heel area. heel lasting device. vertex cylinder using two sensors, the machine operation safer.

The machine can save labor 4-6.
