Quick Details
-
Brand Name:
-
VICTOR, Victor
-
Voltage:
-
380V/50HZ/3P
-
Weight:
-
PET Sheet extrusion line
-
Certification:
-
CE, ISO, CE/ISO
-
Power:
-
90KW
-
Automatic Grade:
-
automatic
-
Name:
-
PET Sheet extrusion line
-
Thickness sheet:
-
0.15~1.4mm
-
Main driving motor:
-
90KW
-
Max production speed:
-
25m/min
-
Max extrusion capacity:
-
300Kg/hr
-
Machine usage:
-
food packing, toy box, stationery case,
-
Machine color:
-
White
Quick Details
-
Screw Design:
-
Single-screw
-
Model Number:
-
SJ100/33F
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VICTOR, Victor
-
Voltage:
-
380V/50HZ/3P
-
Weight:
-
PET Sheet extrusion line
-
Certification:
-
CE, ISO, CE/ISO
-
Power:
-
90KW
-
Automatic Grade:
-
automatic
-
Name:
-
PET Sheet extrusion line
-
Thickness sheet:
-
0.15~1.4mm
-
Main driving motor:
-
90KW
-
Max production speed:
-
25m/min
-
Max extrusion capacity:
-
300Kg/hr
-
Machine usage:
-
food packing, toy box, stationery case,
-
Machine color:
-
White
plastic hollow board making machine

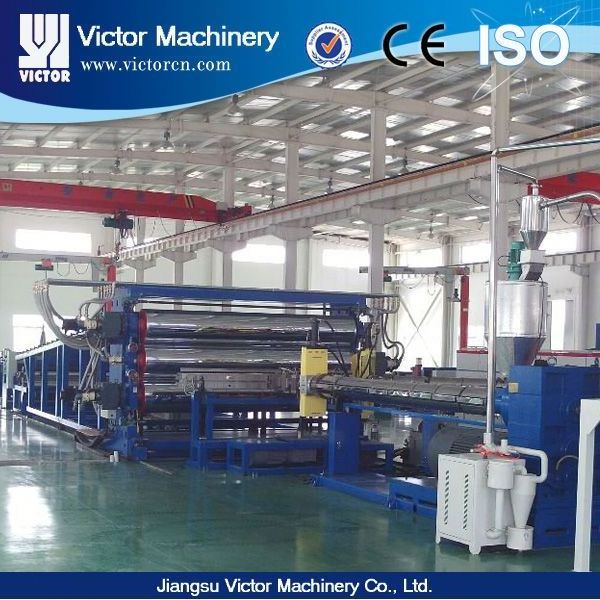

This PET sheet extrusion line is equipped three-roller calander, with high performance vented extruder, die, screen change system, cooling rocket, haul-off unit, cutting unit and etc. specially designed for producing APET, PETG
and CPET single-layer and multi-layer sheet with thickness of 0.12mm to 5 mm and width of 500mm to 3000mm. It can be for produce PS,PP and PE sheet also.
Main Technical Paramters
|
Extruder model |
SJ100/33F |
SJ120/33F |
|
Width of sheet |
500-950mm |
500-1500mm |
|
Thickness of sheet |
0.15-1.4mm |
0.15-1.4mm |
|
Main driving motor |
90KW |
132KW |
|
Max.production speed |
30m/min |
28/min |
|
Max.extrusion capacity |
250kg/hr |
550kg/hr |
Products Application:
Vacuum Forming:food packager,toy box,stationery case,tool and hardware packing
Obstruct Packing:for electronic components packing
Normal Application:folded forming,collar lining,decoration material,file folder,document cover,credit card.
Special Application:medical instrument packing,medicine packing,industrial anti-sepsis,roast tray of microwave oven(CPET)
Vacuum forming : food packager; toy box; stationery case; tool and hardware packing
Obstruct packing : for electric components packing
Normal application : folded forming; collar lining; decoration material; file folder; document cover; credit card
Special application : medical instrument packing; medicine packing; industrial anti-sepsis; roast tray of microwave oven(CPET)
plastic hollow board making machine Characteristic
Machinery line is composed of extruder, screen exchanger, melt pump, die, three roll calender, downstream machinery line.
Product Feature:
PET sheets,has the feature of excellent processing capacity,high transparency,innocuity,no small and non pollution,easy to be recycled.It is particularly good for medicine packing.
