High Brightness 1.69inch 8 Bit 8080 MCU Interface TFT Touch Display 240x280RGB LCD Module

High Brightness 1.69inch 8 Bit 8080 MCU Interface TFT Touch Display 240x280RGB LCD Module

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $5

≥3000 Pieces

US $4.85

≥5000 Pieces

US $4.7

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SWI

Display mode:: TFT+CTP

Resolution:: 240(RGB)x280

Outline Dimension(TFT+TP)):: 33.9(H) x 42.7(V)

Active Area(TP):: 28.17(H) x33.03(V)

Display Drive IC(TFT):: ST7789V3

Display Interface(TFT):: 8 Bit 8080 MCU

Module Connecting Type:: B2BConnector (OK-14GM024-04)

Brightness:: 850 (Typ.)

Pins:: 24

Color:: 262K

Quick Details

Type:: TFT+CTP

Display Size:: 1.69inch

Supplier Type:: Manufacterur

Place of Origin:: Guangdong, China

Brand Name:: SWI

Display mode:: TFT+CTP

Resolution:: 240(RGB)x280

Outline Dimension(TFT+TP)):: 33.9(H) x 42.7(V)

Active Area(TP):: 28.17(H) x33.03(V)

Display Drive IC(TFT):: ST7789V3

Display Interface(TFT):: 8 Bit 8080 MCU

Module Connecting Type:: B2BConnector (OK-14GM024-04)

Brightness:: 850 (Typ.)

Pins:: 24

Color:: 262K

Display General Description

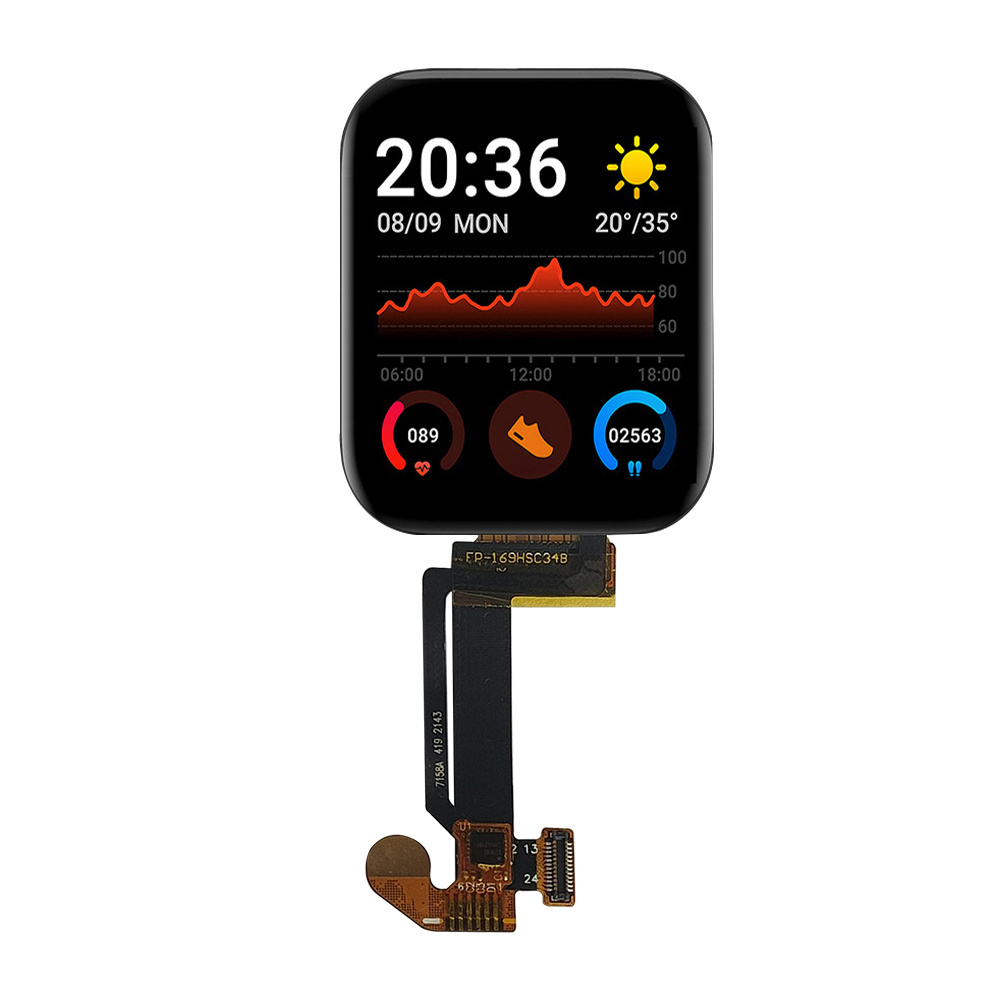

The LHS169TC-PC34-TP by SWICN is a rectangle with arc corners 1.69-inch round IPS TFT LCD module with a capacitive touchscreen. It includes a TFT panel, TFT driver IC (ST7789V3), flexible printed circuit (FPC), backlight, capacitive touch panel (CTP), and CTP driver IC (CST816S), providing a comprehensive and compact solution.

With a resolution of 240x280 RGB pixels on a black background and a typical brightness of 850cd/m2, this module delivers sharp and vibrant visuals. The capacitive touchscreen adds a responsive touch function, enabling seamless user interaction, making it ideal for applications that require a user-friendly interface.

The LHS169TC-PC34-TP is designed for versatility, featuring an 8 Bit 8080 MCU interface for the TFT and an I2C interface for the touch panel. This design ensures compatibility with various MCUs, such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, and a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.

The module's FPC is designed with 2 Board to Board (B2B) connectors, enabling easy and direct connection to the B2B connector on your PCB. This simplifies integration and ensures a secure and reliable connection.

Shineworld Innovations Limited offers tailored solutions that allow customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWI provides customized demo kits, offering a hands-on experience with the products to facilitate the evaluation and decision-making processes.

General Data

NO.	ITEM	SPECIFICATIONS	UNIT
1	Display Mode	TFT+CTP
2	Diagonal Size	1.69	inch
3	Resolution	240(RGB)x280	Dots
4	Active Area(TFT+TP)	28.17(H) x33.03(V)	mm
5	Outline Dimension(TFT+TP)	33.9(H) x 42.7(V)	mm
6	Total Thickness(TFT+TP)	3.785±0.15	mm
7	Pixel Pitch	0.11655x0.11655	mm
8	Pixel Size	0.11655x0.11655	mm
9	Display Driver IC	ST7789V3	-
10	Touch Driver IC	CST816S	-
11	Display Color	262K	-
12	Gray Scale	8	Bit
13	Brightness	850 (Typ.)	cd /m2
14	Display Interface	8 Bit 8080 MCU	-
15	Touch Interface	I2C
16	IC Package Type	COG	-
17	Module Connecting Type	B2B Connector	-
18	Contrast Ratio	1000:1 (Typ.)	-
19	Pins	24	Pins
20	Operating Temperature	-20~70	℃
21	Storage Temperature	-30~80	℃

Drawing

Product Details

CTP and Direct Bonding

CTP and DIRECT BONDING

SWI makes customized touch sensors and touch screen display assemblies as well as the direct bonding processing using OCA, SCA
orbOCR.
We supply touch sensors or integrate them with a customized LCD, OLED display, EPD and/or cover lens. Our bonding size capability
is up to 110”.
