12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker
12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker
12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker
12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker
12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker
12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker
12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker
12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker

12V DC 3.8LPM bottled water dispenser pump for water faucet coffee machine tea machine and ice maker

FOB Reference Price: Get Latest Price
≥300 Pieces
US $39
≥500 Pieces
US $38
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
2 YEARS
Brand Name:
OMEIK
Model Number:
DWP1000A
Place of Origin:
Fujian, China
Cable Length:
1.7M CABLE WITH PLUG
Outlet Size:
1/4 INCH
Power:
0.5, Electric
motor:
AC MOTOR
Usage:
Water
Standard or Nonstandard:
Standard
Theory:
Electromagnetic Pump
Fuel:
Electric
Certification:
ce

Quick Details

Application:
Family Homes
Pressure:
40psi/2.8bar
Voltage:
115V 230V
Warranty:
2 YEARS
Brand Name:
OMEIK
Model Number:
DWP1000A
Place of Origin:
Fujian, China
Cable Length:
1.7M CABLE WITH PLUG
Outlet Size:
1/4 INCH
Power:
0.5, Electric
motor:
AC MOTOR
Usage:
Water
Standard or Nonstandard:
Standard
Theory:
Electromagnetic Pump
Fuel:
Electric
Certification:
ce
Product Overview

DWP SERIES BOTTLED WATER DISPENSING SYSTEM FOR HOME AND COMMERCIAL APPLIANCES

DWP series bottled water dispensing system pump was special designed to deliver the water under pressure to an individual drinking water faucet, coffee machines, tea machines, water dispensers, refrigerators, ice makers, and other application where portable water is needed. Pump system shuts off when the water source was empty, when fill in the water it automatically restarts.
FEATURES AT A GLANCE
Illuminated On/Off switch.
Dual inlet simultaneous draw from two bottles.
Easiest way to connect this to your filtration kit/espresso machine.
Float switch for auto shut-off when bottle is empty.
Built-in check valve to prevent back flow.
Universal seal cap fits most water containers.
Compact size for easy installation.
Long life motor ensures years of reliable operation.
Quick disconnect ports
Smooth flow and quite operation.
Thermal protector prevent overheating, protecting the pump and
control box from damage
New ergonomic T shaped wand handle

A type with single tube
B type with single tube
B type with dual tubes
PRODUCT SPECIFICATIONS
VoModel
voltage(V)
MAX CURRENT
Max Flow (LPM/GPM)
Pressure(Pis/Bar)
Packing Size(mm)
N.W/G.W
DWP-1001B
115V
0.5
3.8/1.0
40/2.8
610*260*80
2.1/2.4
DWP-1001B
230V
0.3
3.8/1.0
40/2.8
610*260*80
2.1/2.4
DWP-1002B
115V
0.5
3.8/1.0
40/2.8
610*260*80
2.3/2.6
DWP-1002B
230V
0.3
3.8/1.0
40/2.8
610*260*80
2.3/2.6
PRODUCT CONFIGURATION
tube details
positive side
profile side
SALES AND SERVICE NETWORK

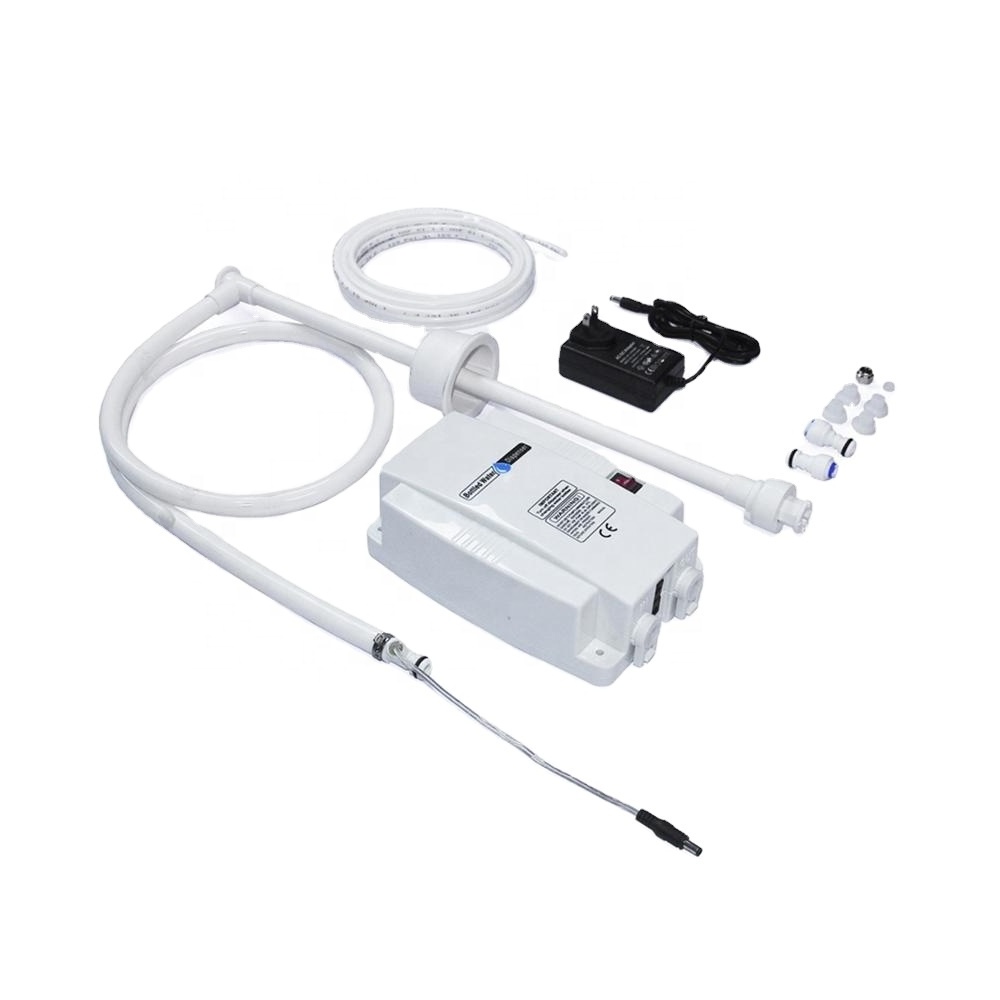

INVENTORY OF SYSTEM COMPONENTS

Suction wand and hose assembly.
Pump module with On/Off switch.
6 feet(1.7m) cord with plug.
20 feet (6.1m) of 1/4 inch(6.35mm) discharge hose.
Optional refrigerator fitting.
Universal seal cap Fits any 3, 5, and 6 gallon plastic water bottle.
Installation and maintenance instructions.

A type bottled water system.

B type bottled water system

SIMILAR PRODUCTS
FAQ

Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer of electric motor and pump.

Q:What is MOQ of this product in your company?
A: MOQ is 100 pcs. If less, please contact us first.

Q: What is the delivery time in your company for this product?
A: In general, the delivery time is 15-20 days. if tight, please contact us. we will arrange production for you as per mutual
benefit.

Q: What is the payment in your company?
A: By TT. Other payment can be accepted after confirmed

Q: Can we design our special package for this product?
A: Customized package is welcome with design as gift box, display box and so on.

Q: What shipment is it to our destination?
A: In general, we ship the goods by sea for less cost. If urgent, the goods could be sent by air.

Q: Could you provide the OEM product?
A: Yes, we offer all kinds of oEM services.

Q: Can you pack this product with our brand logo?
A: Customized brand logo is welcome with design in PDF, Al, CDR form.
