Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving
Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving
Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving
Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving
Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving
Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving
Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving
Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving

Fully Garment Textile Machinery Automatic Fabric Spreading Machine Cloth Cutting with Full Servo Driving

FOB Reference Price: Get Latest Price
≥1 Sets
US $12500
≥10 Sets
US $7000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
Zhicheng Auto Spreading Machine For Fabric Save Time And Cost
Key words:
Spreading Machine For Fabric
Color:
White
MOQ:
1 Set
After Warranty Service:
Online support
Local Service Location:
None
After-sales Service Provided:
Online support

Quick Details

Weight (KG):
600
Place of Origin:
Fujian, China
Brand Name:
ZC
Product name:
Zhicheng Auto Spreading Machine For Fabric Save Time And Cost
Key words:
Spreading Machine For Fabric
Color:
White
MOQ:
1 Set
After Warranty Service:
Online support
Local Service Location:
None
After-sales Service Provided:
Online support
Product Overview

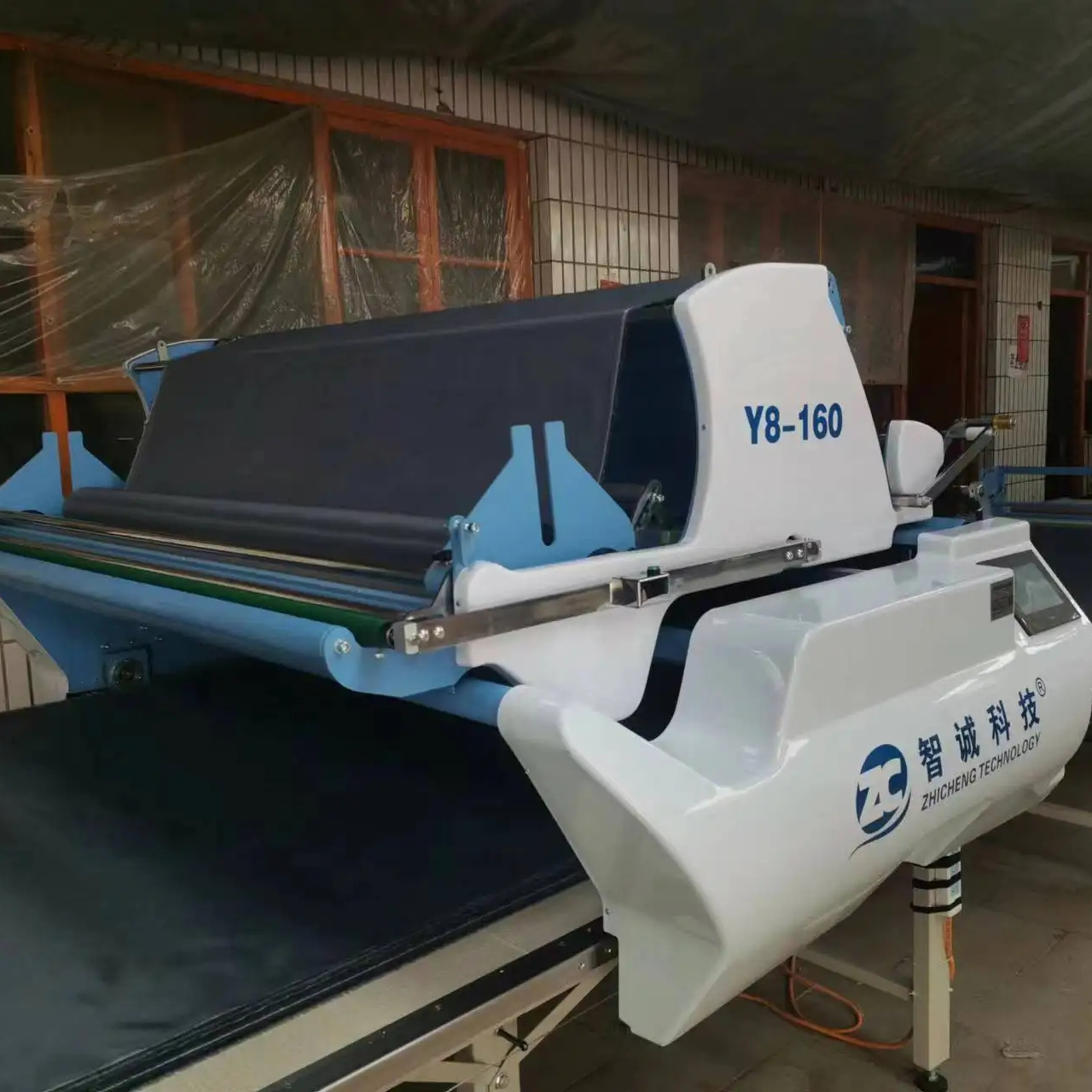

Automatic Fabric Spreading Machine

Spreading machine offers an effective solution to various fabrics. The machine will shut down and return back to original position once the fabric runs empty, and the machine power will automatically shut off upon 5 minutes idle. The most important is that the fabric won't be tragged during emergency stop. It is easy to operate and help to improve production efficiency.
Product Features
Automatic Fabric Spreading Machine
1. Machine returns back to original position once fabric runs empty
2.The machine power will automatically shut off upon 5 minutes idle
3.The spread laid fabric is not pulled when the emergency stop triggers
4.The streamline shape can reduce the wind disturbance, noise and vibration
5.Automatic fabric expanding system
6.PLC touch panel, user friendly operation system
7.Non-tension spreading
8.Simple operation increases production efficiently and also ensures the best quality
PRODUCT SPECIFICATIONS
Model
ZC-DCP-160
ZC-DCP-190
ZC-DCP-210
ZC-DCP-260
ZC-DCP-310
Fabric Width(max)
1600mm
1900mm
2100mm
2600mm
3100mm
Diameter of Fabric Roll
600mm max
Weight of Fabric Roll
80KG max
Travel Speed(m/min)
96 max
Spreading Height
250mm max
Power
1P 220V /1.5KW
Width of Table
1830mm
2130mm
2330mm
2830mm
3330mm
LxWxH Dimensions(mm)
1890*1500*900
2190*1500*900
2390*1500*900
2890*1500*900
3390*1500*900
PRODUCT CONFIGURATION
Air Floating Table with Air Pump
Auto Edge Device of Electric Eye
Movable Catcher
Sensor
Auto Cutting Device
Roll Fabric Loader
Product packaging
