Quick Details
-
Model Number:
-
BS-10W60RGBIC-2811
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-20 - 50
-
IC type:
-
WS2811
-
Color order:
-
G R B
-
Grey level:
-
256
-
View angle:
-
120°
-
Input voltage:
-
DC 12V
-
Color:
-
full color 24 bit
-
PCB board color:
-
black/white
-
PCB width:
-
10mm
-
LED quantity:
-
30/48/60 per meter
-
IP grade:
-
IP20/IP65/IP67
Quick Details
-
Control Mode:
-
APP Control, Remote Control, Switch Control, Voice control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bryson
-
Model Number:
-
BS-10W60RGBIC-2811
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-20 - 50
-
IC type:
-
WS2811
-
Color order:
-
G R B
-
Grey level:
-
256
-
View angle:
-
120°
-
Input voltage:
-
DC 12V
-
Color:
-
full color 24 bit
-
PCB board color:
-
black/white
-
PCB width:
-
10mm
-
LED quantity:
-
30/48/60 per meter
-
IP grade:
-
IP20/IP65/IP67

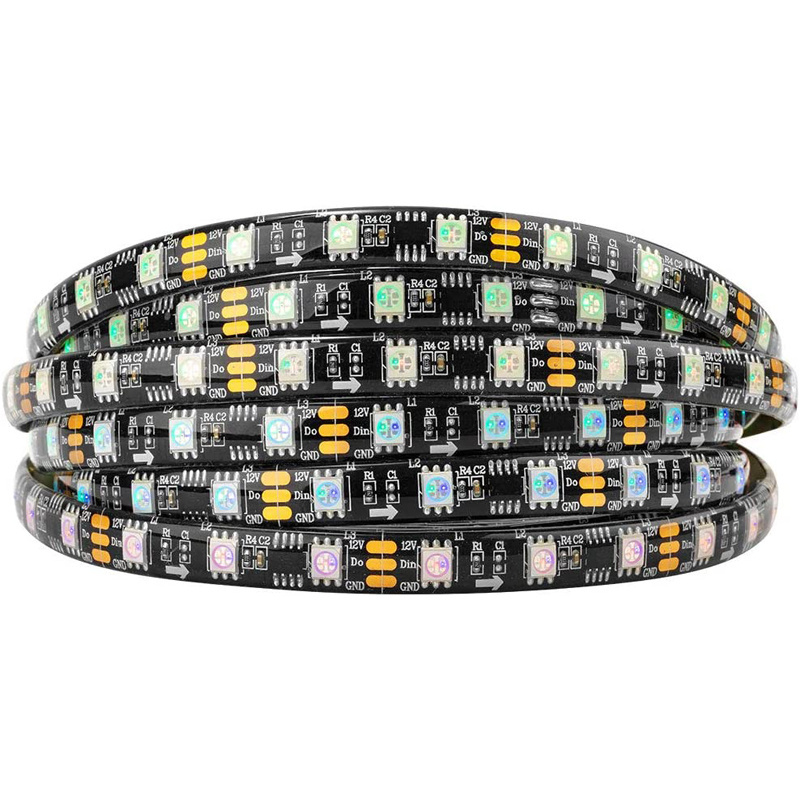

DC12V 5m WS2811 Pixel LED Strip Light Addressable 30/48/60LEDs/m Full Color WS2811 IC 5050 RGB Dream Color LED Lamp Tape
Product Description
Features
* WS2811 IC=12V RGB IC.The professional name is WS2811. Addressable groups of 3 LEDs.One WS2811 IC controls three LEDs .Dream full color Programmable LED Strip.5050SMD .256 brightness display and 24-bit color display. Every 3 LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want. All RGB IC strips kit on the market are WS2811 .Different manufacturers have different names, and the color order is different .
* Flexible PCB Board,3PIN JST-SM connectors on both ends for easy installation and connecting LED Strips in series. Separate
power/ground wires on both ends for injecting power in case of voltage drop. Works great withK-1000C, SP105E, SP601E, SP611E, SP511E, SP602E, SP604E, SP511E, SP608E Music Blutoooth APP controller , SP501E Intelligent speech control WiFi APP Controller.RF Remote Music controller.Group Controller etc.DIY Controllers: Rasp ,R3 ,Mega,Mini,etc.
* Flexible PCB Board,3PIN JST-SM connectors on both ends for easy installation and connecting LED Strips in series. Separate
power/ground wires on both ends for injecting power in case of voltage drop. Works great withK-1000C, SP105E, SP601E, SP611E, SP511E, SP602E, SP604E, SP511E, SP608E Music Blutoooth APP controller , SP501E Intelligent speech control WiFi APP Controller.RF Remote Music controller.Group Controller etc.DIY Controllers: Rasp ,R3 ,Mega,Mini,etc.
Parameters
|
LED Q'ty
|
30LEDs/m
|
48LEDs/m
|
60LEDs/m
|
|||
|
IC model
|
WS2811
|
|
|
|||
|
Power
|
9W/m
|
14.4W/m
|
18W/m
|
|||
|
Input voltage
|
DC 12V
|
|
|
|||
|
Color order
|
G R B(NOT RGB)
|
|
|
|||
|
Grey level
|
256
|
|
|
|||
|
View angle
|
120°
|
|
|
|||
|
Color
|
full color 24-bit
|
|
|
|||
|
FPCB board color
|
black/white
|
|
|
|||
|
FPCB width
|
10mm
|
|
|
|||
|
Standard reel length
|
16.4FT/reel
|
|
|
|||
|
Wave length(nm)
|
Red（620-630） ; Green（515-530） ; Blue（465-475）
|
|
|
|||
|
IP grade
|
IP20/IP65/IP67
|
|
|
|||
|
Light up 1 color（red or green or blue) 0.1W/LED . Light up 2 colors (red+green) 0.2W/LED , Light up 3 colors
(red+green+blue=mixed white) 0.3W/LED |
|
|
|
|||
