Quick Details
-
Product name:
-
Fiber-optic Cable Laying Stand Cable Drum Roller Stands
-
Load tonnage:
-
5ton
-
Appllicable drum diameter:
-
500~1800mm
-
Maximum weight of drum:
-
5000kgs
-
Dimension:
-
650x150x145mm
-
Weight:
-
35kgs
-
Application:
-
Electric power wiring construction
-
Usage:
-
Stringing
-
Material:
-
steel frame, aluminum and nylon wheel
-
Function:
-
Used to pull cable, protect cable from friction
Quick Details
-
Use:
-
Pull cable, protect cable from friction
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Haoxin
-
Product name:
-
Fiber-optic Cable Laying Stand Cable Drum Roller Stands
-
Load tonnage:
-
5ton
-
Appllicable drum diameter:
-
500~1800mm
-
Maximum weight of drum:
-
5000kgs
-
Dimension:
-
650x150x145mm
-
Weight:
-
35kgs
-
Application:
-
Electric power wiring construction
-
Usage:
-
Stringing
-
Material:
-
steel frame, aluminum and nylon wheel
-
Function:
-
Used to pull cable, protect cable from friction
Guide Cable Drum Roller Fiber-optic Cable Laying Stand Cable Drum Roller Stands
Description:

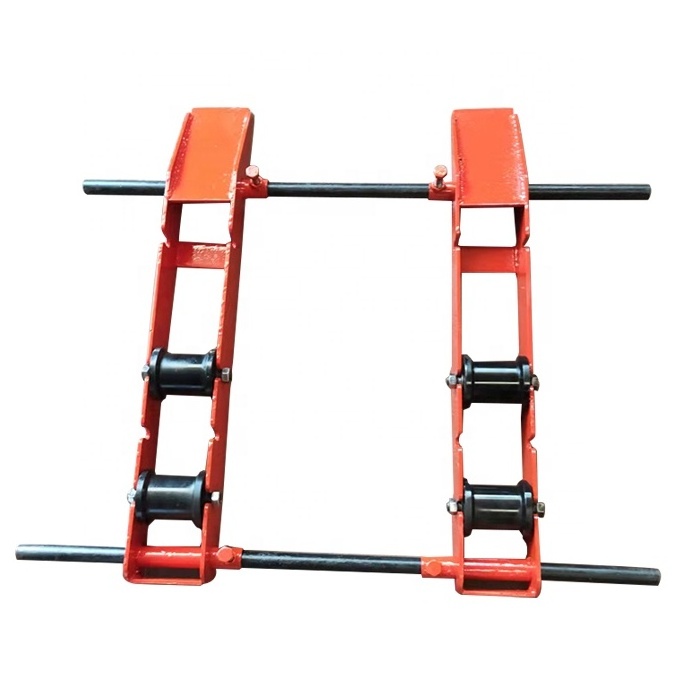

The reel rotator platform can be used as the cable reel spreading device. It can be applied to the cable laying construction in electric power, communication, and other relevant industries. This product is basically composed of the turntable, roller, roller axis, as well as the locking fixture. The roller is internally equipped with rolling bearing. While rotating, the reel is flexible.
Using Method
:
1. The t
wo platforms must be well placed on basis of the reel width.
2. T he roller close to the slope needs to be locked.
3. T he position of roller should be adjusted in accordance with the reel diameter.
4. T he reel must be pushed to the platform along the slope.
5. R elieve the locked roller, and then the reel is able to rotate.
Cable Reel Rotator Cable Drum Roller Platform For Wire Cable Rollers
| Model number | HXT1250 | HXT1800 | HXT2500 |
| Appllicable drum diameter (mm) | φ500~1250 | φ500~1800 | φ500~2500 |
| Maximum weight of drum(kg) | 500 | 1500 | 5000 |
| Dimension(mm) | 470×172×105 | 650×150×145 | 900×230×130 |
| Single piece weight (kg) | 17 | 30 | 35 |
