swing gate opener Specification
* Driving Method: Screw Driven Piston Type
* Operating Voltage: DC 24V
* Operate the single gate width up to 1.5M
* Operate the single gate weight up to 150KG
* Waterproof IP55 design
* Adjustable Force
* Adjustable time-delay
* Manual Release
* Microprocessor based control panel
* Working time protection
* Available to connect photocell, loop detector, card reader,backup battery etc.
1.Control panel can connect flashing light, photocell, back up battery, solar system, keypad and so on.
2.Controlling single or dluble-leaf motor is optional.
3.Can adjust open and close door time.
4.24VDC back-up battery can be input. (this is use large controller,our standard controller is small size.)
5.High speed operate can be adjustment.
6.Set extra remote control is easily.
7:Work with wifi device to operated the gate on Mobile Phone App.

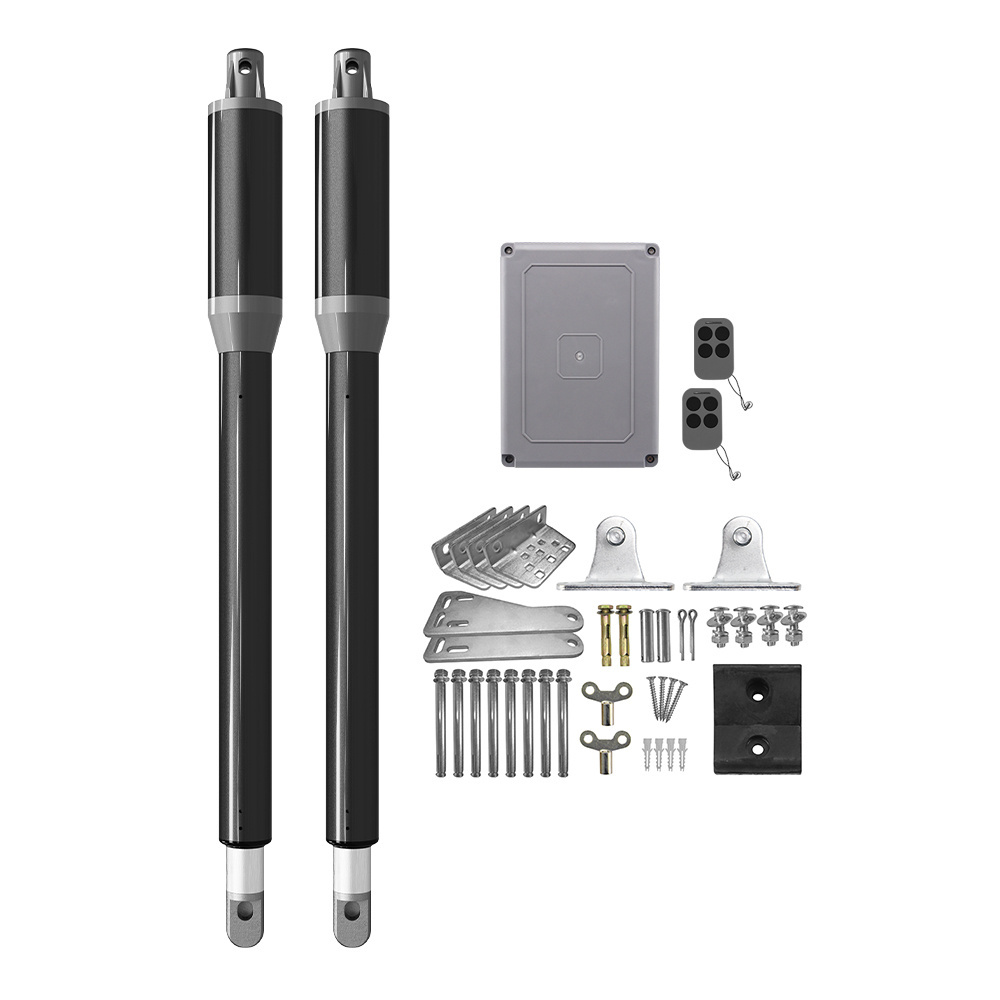

2 x Heavy duty motor that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Control panel
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
Control Board for swing gate opener( EG-22-A)
|
Supply power
|
~220V(+10%)/50Hz
|
Running time protection
|
adjustable
|
|
Transformer
|
~220V/24VDC 150W
|
Auto closing delay time
|
adjustable
|
|
Environment temperature
|
-20°C~+55°C
|
Force
|
adjustable
|
|
Protection fuse
|
10A
|
Max load
|
2*60w /24VDC
|
