- Product Details
- {{item.text}}
Quick Details
-
Power:
-
15HP
-
Dimension(L*W*H):
-
2060*650*1140MM
-
Weight:
-
420KG
-
Keyword:
-
S650 Jiansong four heads planetary concrete floor grinder
-
Usage:
-
Floor Polishing Floor Grinding
-
Inverter:
-
15HP
-
Big disc speed:
-
0-300rpm
-
Small disc speed:
-
0-1800rpm
-
Current:
-
22amps
-
Grinding heads:
-
4*6
-
Dust port:
-
2inch/3inch
-
Customized:
-
Available
-
Water tank:
-
60L
-
Certification:
-
CE,ISO9001
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JS floor systems
-
Voltage:
-
220V/380V/480V
-
Power:
-
15HP
-
Dimension(L*W*H):
-
2060*650*1140MM
-
Weight:
-
420KG
-
Keyword:
-
S650 Jiansong four heads planetary concrete floor grinder
-
Usage:
-
Floor Polishing Floor Grinding
-
Inverter:
-
15HP
-
Big disc speed:
-
0-300rpm
-
Small disc speed:
-
0-1800rpm
-
Current:
-
22amps
-
Grinding heads:
-
4*6
-
Dust port:
-
2inch/3inch
-
Customized:
-
Available
-
Water tank:
-
60L
-
Certification:
-
CE,ISO9001
Please contact Ms.Zoe
Emial:zoe.zhu @ jiansongsh.com
MP/Whatsapp:+8615212239268

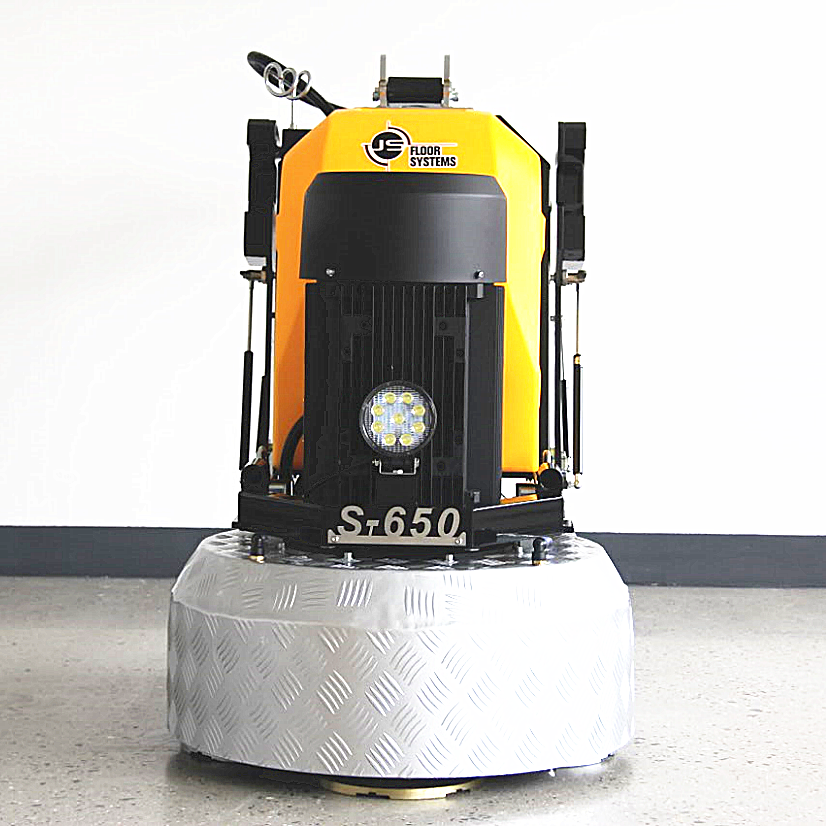

S650 Jiansong four heads planetary concrete floor grinder
As the top manufacturer of floor machines in China,we have a full floor systems for your choice.
Here will introduce you of our S series Four heads planetary type floor grinders:
* Planetary floor grinder working principle is small discs rotation drives the big disc rotation,when the small disc rotation that will drives the back big gearbox still rotation.Will make more smooth and shinny floor.
*Variable speed can suit for different sutiation of grinding and polishing.
*Gear driven and belt driven two systems for your choice.
*A3,A5,A6 this three type machines will suggest for residential and small commercial application,that will easy for move in small space.
*For big job will suggest you take the big types,high efficiency machines will make beautiful floors
*Powerful Siemens motor to ensure long-term mechanical operation;
*High configuration inverter, support speed regulation, more flexible;
*Replaces the early belt drive design, more stable, safer and more assured;
*Handle adjustable for different height, more secure and user-friendly design;
*One-piece rotomolding water tank, sturdy and durable;
*One body design aluminum alloy gearbox, high precision, more durable;
*High precision brand sealed bearings, more assured, low noise;
*Auto balancing bottom system, easily breaks down into two parts for tranportation, smooth operation and high efficiency;
* Can be equipped with our dust collection equipment, and work in both dry and wet condition.
|
S series Belt/Gear Driven surface concrete floor grinding and polishing machines |
|||||||
|
Model |
A3 |
A5 |
A6 |
S650 |
S750 |
S850 |
S950 |
|
Driven system |
Belt |
Gear |
Belt |
Gear |
Gear |
Gear |
Gear |
|
Voltage |
220V/380V/480V |
||||||
|
Motor |
5.5HP |
7.5HP |
7.5HP |
15HP |
20HP |
25HP |
30HP |
|
Inverter |
5.5HP |
7.5HP |
7.5HP |
15HP |
20HP |
25HP |
30HP |
|
Current |
8A |
12A |
12A |
22A |
30A |
37A |
44A |
|
Speed |
Small disc speed:0-1800RPM Big disc speed:0-300RPM |
||||||
|
Water tank |
28L |
28L |
28L |
60L |
60L |
60L |
60L |
|
Grinding heads |
3*6 |
3*6 |
3*6 |
4*6 |
4*6 |
4*6 |
4*6 |
|
Weight |
165KG |
250KG |
230KG |
420KG |
460KG |
500KG |
550KG |
|
Dust port |
2/3inch |
||||||
|
Dimension |
148*55*103cm |
157*57*109cm |
148*58*123cm |
206*65*114cm |
211*75*115cm |
229*82*118cm |
235*95*108cm |
|
Customized |
Available |
||||||
