Quick Details
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
Diameter 1000mm
-
Weight:
-
260 KG
-
Capacity:
-
60-800 Kg/h
-
Working ways:
-
Continuous
-
Material:
-
304 Stainless Steel
-
Mesh size:
-
2-500
-
Layer:
-
1-5
-
Factory Visit:
-
Yes
-
DIameter:
-
1000mm
-
Function:
-
Screening\separation\sorting\sieving\Grading
-
Payment:
-
L/C /D/A /D/P /T/T /Western Union/ MoneyGram
-
After-sales Service Provided:
-
Online support
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanyi
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
Diameter 1000mm
-
Weight:
-
260 KG
-
Capacity:
-
60-800 Kg/h
-
Working ways:
-
Continuous
-
Material:
-
304 Stainless Steel
-
Mesh size:
-
2-500
-
Layer:
-
1-5
-
Factory Visit:
-
Yes
-
DIameter:
-
1000mm
-
Function:
-
Screening\separation\sorting\sieving\Grading
-
Payment:
-
L/C /D/A /D/P /T/T /Western Union/ MoneyGram
-
After-sales Service Provided:
-
Online support

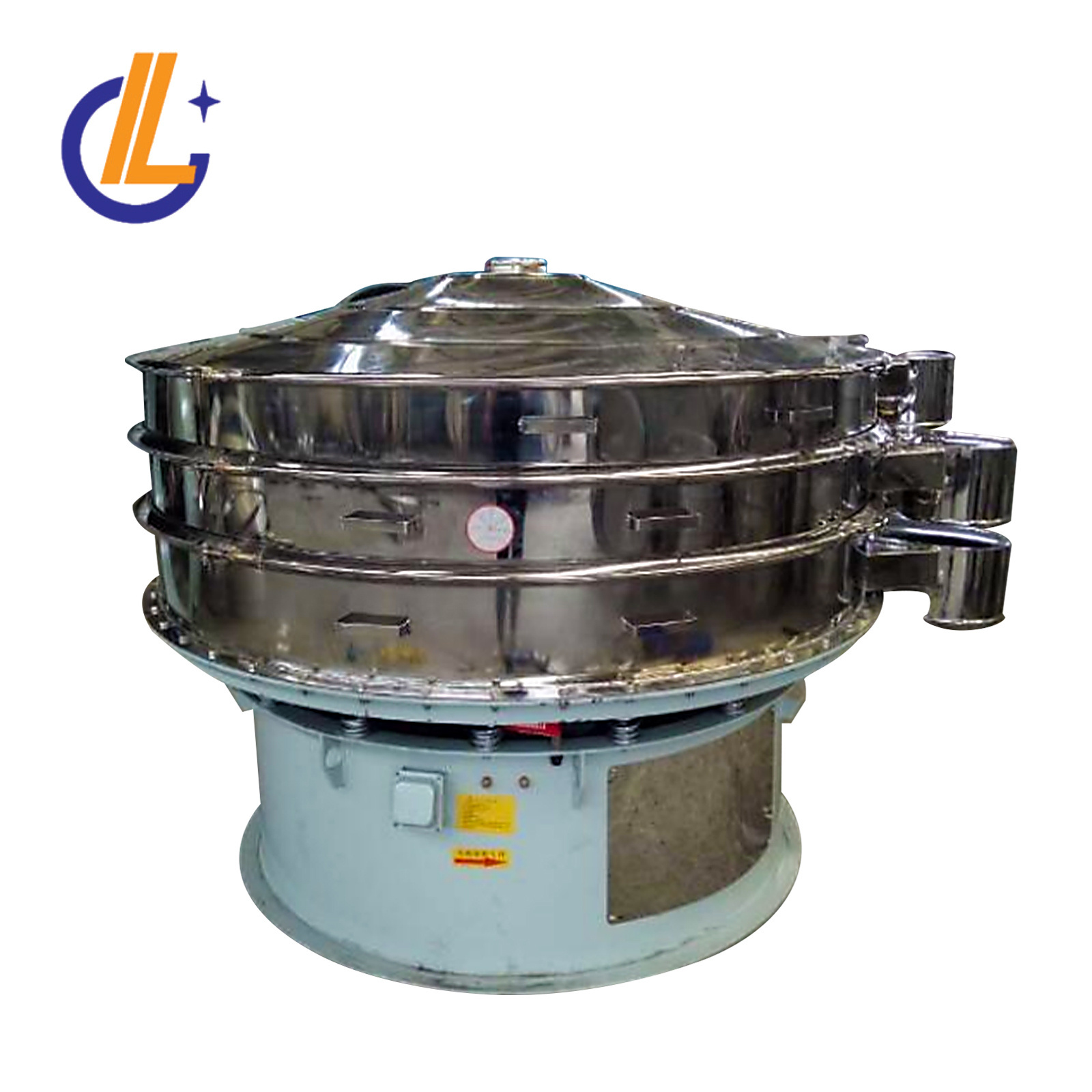

Hot selling vibrating sieve machine vibro sifter for sugar supplier
1: The vibratging sieving machine can be made as carbon steel material or SUS304 material
2: The vibrating sieve machine diameter can be as 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm.
3: The sieve machine layers can be as 1-5 layers
4: The screen mesh can be as 2-500 mesh.
5: The vibrating screen machine can be sieve any powder, liquid or oil.
6: The machine can be with the movable wheels, to move easily.
7: Our factory vibrating sieve machine with the CE and ISO certificates
Working Principle
Application
Details Images
Product shows
Technical Parameter
|
XZS-600-1S XZS-600-2S XZS-600-3S |
0.35-0.55kw |
550mm |
800*800*680 800*800*780 800*800*880 |
1 2 3 |
|
XZS-800-1S XZS-800-2S XZS-800-3S |
0.55-0.75 kw |
750mm |
900*900*780 900*900*930 900*900*1080 |
1 2 3 |
|
XZS-1000-1S XZS-1000-2S XZS-1000-3S |
0.75-1.5 kw |
950mm |
1160*1160*880 1160*1160*1030 1160*1160*1180 |
1 2 3 |
|
XZS-1200-1S XZS-1200-2S XZS-1200-3S |
1.5-1.75 kw |
1150 mm |
1360*1360*980 1360*1360*1160 1360*1360*1360 |
1 2 3 |
|
XZS-1500-1S XZS-1500-2S XZS-1500-3S |
1.75-2.2 kw |
1450mm |
1850*1850*1130 1850*1850*1330 1850*1850*1550 |
1 2 3 |
|
XZS-1800-1S XZS-1800-2S XZS-1800-3S |
2.2 kw |
1750mm |
2200*2200*1360 2200*2200*1460 2200*2200*1680 |
1 2 3 |
1:Easy to change the net, easy to operate, easy to clean
2: Impurities, coarse materials can be automatically discharged, and can be continuously operated
3: High efficiency, exquisite design and durability. Any powder and mucus can be sieved.
4: The mesh is not blocked, the powder does not fly.
| Mine sieve | Lab test sieve | Linear vibrating screen |
| Fixed belt conveyor | PVC PU belt conveyor | Mobile belt conveyor |
|
Delivery time |
5 working days after receiving your 30% deposit |
|
Packing details |
Standard wooden case packing and One set one case |
|
HS code |
8474100000 |
|
MOQ |
1 set |
|
Payment terms: |
L/C and T/T or others |
|
Shipping ways |
By sea, by air or by couriers(TNT, DHL and so on) |
|
Port: |
Shanghai or Tianjing or Qingdao |
|
Warranty |
12 months |
|
Trade Terms |
FOB, CIF |
