Factory Direct Sausage Machine Automatic Machine Making Sausage Hot Dog Sausage Maker Machine

Factory Direct Sausage Machine Automatic Machine Making Sausage Hot Dog Sausage Maker Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $30000

≥2 Sets

US $29000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: Customizable, 5200*650*1610mm

Weight:: 1000 KG

Place of Origin:: Shandong, China, Shandong, China

Voltage:: 380V/220V

Power:: 4.6kw

Applicable Industries:: Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Other

Warranty of core components:: 1 Year Guarantee

Application:: Sausage Making&Packing

Product name:: Sausage Production Line

After-sales Service Provided:: Onsite, Online, Spare Parts

Machine material:: Food Grade SUS304

Suitable for:: Food Processing Plants

Function:: Sausage Making

Quick Details

Machinery Capacity:: Customizable

Brand Name:: Youyue

Year:: 2024

Dimension(L*W*H):: Customizable, 5200*650*1610mm

Weight:: 1000 KG

Place of Origin:: Shandong, China, Shandong, China

Voltage:: 380V/220V

Power:: 4.6kw

Applicable Industries:: Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Other

Warranty of core components:: 1 Year Guarantee

Application:: Sausage Making&Packing

Product name:: Sausage Production Line

After-sales Service Provided:: Onsite, Online, Spare Parts

Machine material:: Food Grade SUS304

Suitable for:: Food Processing Plants

Function:: Sausage Making

-We can supply single sausage production equipment and complete turnkey sausage production lines.

-Meat Grinders, Meat Bowl Cutter, Vacuum Mixers, Filling Machines, Twisting Machines, Automatic Pole Hangers, Fumigation Ovens, Sausage Shears, Sausage Packing Lines, etc.

Product name	Turnkey sausage production line
Overall equipment material	Stainless steel 304/316, carbon steel
Function	Grinding, mixing, filling, fumigating, packaging
Weight	2000kg
Power supply	220/380V

Product Display

Double Winches Meat Grinder

Our products have good versatility and wide range of applications, can grind frozen meat and fresh meat. A variety of hole plate combination, more suitable for the requirements of different meat products.

Adopting modularized design, smooth feeding and high production efficiency, it can directly grind split meat to make different sizes of meat grains, ready for chopping or mixing.

Meat Bowl Chopper

The bowl chopper is mainly composed of chopping knife, rotating pot, frame, electrical control system and other parts. Using the chopping effect of the high-speed rotation of the chopper, the main raw materials such as meat, minced meat, fat, etc. are chopped into meat filling or meat puree, and other auxiliary materials can be stirred together at the same time.

Vacuum Mixer

Vacuum mixer is a new type of mixer which is improved by introducing international technology level on the basis of the original common mixer. In the state of vacuum, the material is expanded by the negative pressure and at the same time is radially rolled by the paddles to complete the mixing function of uniform mixing. At the same time using a unique mixer, so that the mixing out of the meat fiber refinement, in order to present a fluffy state, add the seasoning juice can be fully absorbed and saturated.

Vane Type Vacuum Quantitative

Filling Machine

Full-automatic filling machine adopts servo motor drive, human-machine interface and PLC control. It is suitable for quantitative filling of sausage-coated products such as minced meat sausage, ham sausage, ham and other products as well as bottles, cans and boxes.

Aluminum wire Sausage Clipping Machine

It is mainly used in the sealing and clipping process of sausages and the sealing and knotting process of other soft packing articles. It has the features of tight sealing, beautiful shape, firm and reliable, easy operation, low failure rate, convenient maintenance, etc. It is the ideal equipment for producing high-grade ham and sausage.

With automatic cutting function (cut off or not cut off can be selected), clipping speed 1-9 levels adjustable, up to 100t times / min.

Twisting And Hanging Machine

This machine also provides customers with expandable and add-on sausage casing automatic set system and sausage sorting & hanging system.

(1) sausage casing automatic set system can automatically and precisely set the sausage casing on the twisted tube without the need of worker's operation.

(2) The sausage sorting and hanging system can hang and sort the produced sausages according to the requirements, which is convenient for the subsequent rod threading work during cooking.

Smoking Oven

The smoker has the functions of steaming, drying, smoking, cleaning and protection. Computerized automatic control, large screen man-machine interface, remote control is available. Unit combined structure, modular production, convenient installation and production. The smoker has automatic temperature control system and special design to ensure uniform temperature and humidity inside the oven and uniform smoke volume.

Knots Cutting Machin

Knot cutting machine has roller and linear two forms, which can easily and quickly cut the twisted strings of natural casings, protein casings, animal casings, man-made sausage casings and other various products. It can evenly, quickly, and intact into a single intestinal products, which is conducive to saving labor costs and improving work efficiency.

Automatic Sausage Packaging Line

This series of equipment can realise automatic feeding, automatic material management, automatic arrangement and automatic gripping. It can realise fast and stable conveying of products, and has the function of screening and rejecting inferior products. The whole set of equipment adopts PLC integrated control system, one key start/stop. It greatly improves the production efficiency and reduces the labour intensity of workers.

About Products

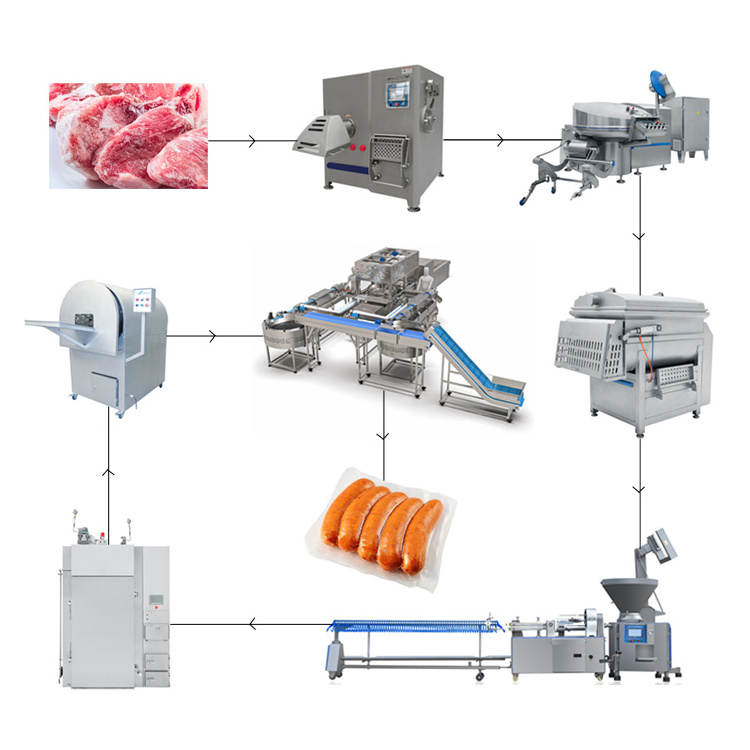

Production Process
