Quick Details
-
Place of Origin:
-
Guangdong, China
-
Keywords:
-
Battery Lithium Lifepo4
-
Warranty:
-
5~10 Years
-
Product name:
-

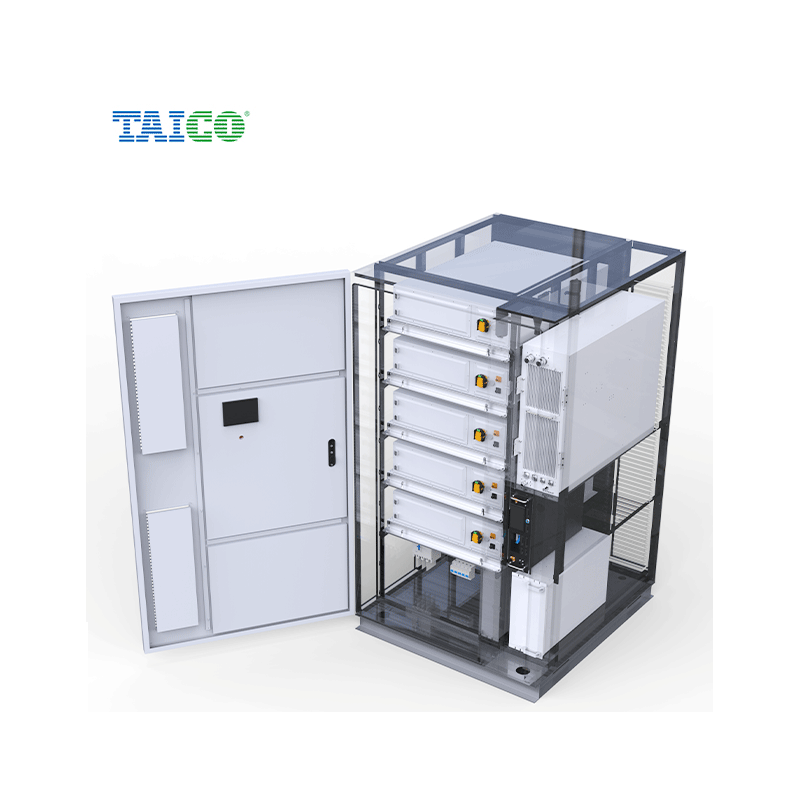

Commercial Energy Storage Battery-cabinet
-
Application:
-
Solar Energy Storage Systems
-
Type:
-
LiFePO4/ Lithium Iron Phosphate Battery
-
Nominal Voltage:
-
600-850V
-
Nominal Capacity:
-
200kWh/400kWh
Quick Details
-
Battery Type:
-
Sodium-ion Batteries
-
Model Number:
-
TK E-Cube L200
-
Brand Name:
-
TAICO
-
Place of Origin:
-
Guangdong, China
-
Keywords:
-
Battery Lithium Lifepo4
-
Warranty:
-
5~10 Years
-
Product name:
-
Commercial Energy Storage Battery-cabinet
-
Application:
-
Solar Energy Storage Systems
-
Type:
-
LiFePO4/ Lithium Iron Phosphate Battery
-
Nominal Voltage:
-
600-850V
-
Nominal Capacity:
-
200kWh/400kWh
Product Description
Specification
|
Model
|
|
TK E-Cube A100
|
TK E-Cube L200&A200
|
|
|
PV
parameters
|
Max.Input power
|
50KW
|
100KW
|
|
|
Ess
parameters
|
Start-up voltage
|
135V
|
135V
|
|
|
AC parameters
|
PV Maxvoltage
|
1000Vdc
|
1000Vdc
|
|
|
|
PV rated voltage
|
620Vdc
|
|
|
|
|
MPPT operating voltage range
|
200 ~ 850 Vdc
|
|
|
|
|
MPPT Qty.
|
4
|
|
|
|
|
Qty. of single MPPT input channels
|
2
|
|
|
|
|
Max.input current
|
30A
|
|
|
|
|
Max.short circuit current
|
40A
|
|
|
|
ESS
parameters
|
Rated power
|
100KWh
|
215KWh
|
|
|
|
Rated capacity
|
160Ah
|
280Ah
|
|
|
|
Rated voltage
|
614.4Vdc
|
768Vdc
|
|
|
|
Battery voltage range
|
537.6 ~ 691.2 Vdc
|
672～864Vdc
|
|
|
|
Rated charge/discharge current
|
80A
|
130A
|
|
|
|
Max.charge/discharge current
|
160A
|
280A
|
|
|
AC parameters
|
Rated output power
|
50KW
|
100KW
|
|
|
|
Max.input apparent power
|
60 KVA
|
110KVA
|
|
|
|
Grid-connected Max output apparent power
|
55 KVA
|
110KVA
|
|
|
|
Off-grid Max. output apparent power
|
55 KVA
|
110KVA
|
|
|
|
Max.output current
|
83A
|
166A
|
|
|
|
Rated voltage(input&output)
|
3L/N/PE; 220/380V;230/400V;240/415V
|
380VAC～
|
|
|
|
Grid frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
|
|
|
THDu
|
<3%@ rated power& linear load
|
50Hz/60Hz
|
|
|
Efficiency
parameters
|
Max.PV conversion efficiency
|
98.8%
|
98.8%
|
|
|
|
EU efficiency
|
98.8%
|
98.8%
|
|
|
Ambient
parameters
|
Operating temperature
|
-25°C~55°C(45°Cderating)
|
-25°C~55°C(45°Cderating)
|
|
|
|
Storage temperature
|
-20°C~45°C
|
-20°C~45°C
|
|
|
|
Humidity
|
5~95%,no condensing
|
5~95%,no condensing
|
|
|
|
Altitude
|
2000m(2000m derating)
|
2000m(2000m derating)
|
|
|
|
Cooling mode
|
Smart air conditioner, smart fan
|
Smart air conditioner, smart fan
|
|
|
Other parameters
|
Dimension(W*H*D)
|
1100*1100*2000mm
|
1300*1235*2466mm
|
|
|
|
Weight
|
1300 kg
|
2500 kg
|
|
|
|
Ingress protection
|
IP54
|
IPX5
|
|
|
|
Communication mode
|
CAN, RS485, WiFi/LAN
|
|
|
