reflective anti skid road MARKING reflective tape pavement tape
reflective anti skid road MARKING reflective tape pavement tape
reflective anti skid road MARKING reflective tape pavement tape
reflective anti skid road MARKING reflective tape pavement tape
reflective anti skid road MARKING reflective tape pavement tape
reflective anti skid road MARKING reflective tape pavement tape
reflective anti skid road MARKING reflective tape pavement tape
reflective anti skid road MARKING reflective tape pavement tape

reflective anti skid road MARKING reflective tape pavement tape

FOB Reference Price: Get Latest Price
≥20 Rolls
US $7.5
≥5000 Rolls
US $6
≥50000 Rolls
US $3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Design Printing:
Offer Printing
Material:
PVC
Feature:
Waterproof
Use:
Warning
Place of Origin:
Hebei, China
Brand Name:
Yongle or OEM
Model Number:
Reflective road tape PL series
Thickness:
0.8mm, 0.8mm
Product name:
reflective/anti skid road pattern tape/pavement tape
Type:
Self-adhesive Sticker Film
Color:
White/black/yellow/blue or zebra marking
Application:
Masking, warning and anti skid.
Length:
3m-1000m
Width:
50mm-500mm
Skid resistance:
45 BPN (GB/T24717-2009)

Quick Details

Adhesive:
Rubber
Adhesive Side:
Single Sided
Adhesive Type:
Pressure Sensitive
Design Printing:
Offer Printing
Material:
PVC
Feature:
Waterproof
Use:
Warning
Place of Origin:
Hebei, China
Brand Name:
Yongle or OEM
Model Number:
Reflective road tape PL series
Thickness:
0.8mm, 0.8mm
Product name:
reflective/anti skid road pattern tape/pavement tape
Type:
Self-adhesive Sticker Film
Color:
White/black/yellow/blue or zebra marking
Application:
Masking, warning and anti skid.
Length:
3m-1000m
Width:
50mm-500mm
Skid resistance:
45 BPN (GB/T24717-2009)
Product Description

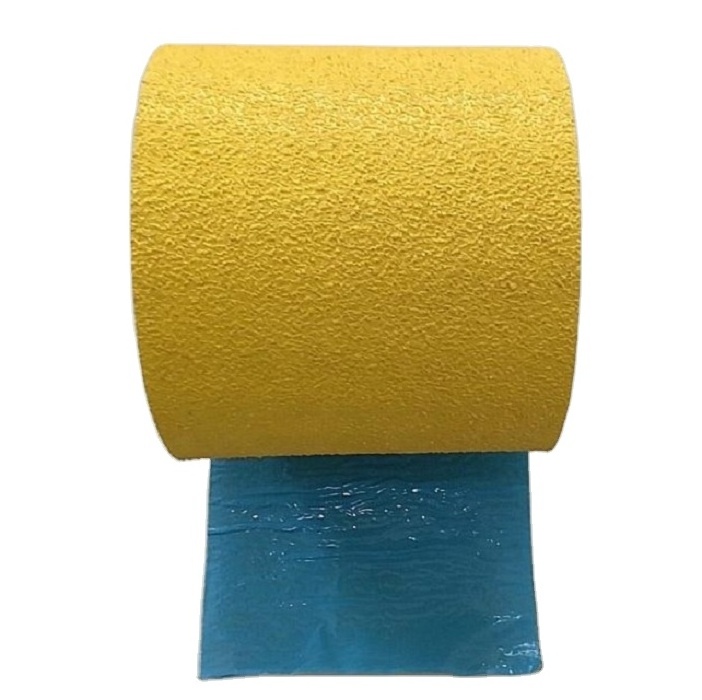

Reflective pavement marking tape

PL5000 reflective pavement marking tape is pre-made with synthetic rubber. It has high tensile strength with the surface coated with 1.5 index glass-beads that has good retro-reflectivity. With high performance coatings on the tape, it has a strong anti-friction ability. The bottom is coated with a strong and weather resistance adhesive which improves the adhesion between road and tape. It makes the tape firmly stuck on roads. PL5000 reflective pavement marking tape has not only a good retro-reflectivity, but also has an easy application advantage than ordinary road signs.

Property
Values
Test Method
Test method
PL5001/W
PL5002/Y
Color
White
Yellow
---
Overall Thickness
1.4mm
1.4mm
ASTM-D-4325
Retro-reflectivity
250 mcd﹒m-2lx-1
175 mcd﹒m-2lx-1
ASTM-D-4061
Adhesion
16 N/25mm
16 N/25mm
ASTM-D-1000
Skid Resistance
45 BPN
45 BPN
ASTM-E-303

Features:

Good retro-reflectivity all day long; anti-skid; high tensile; strong weather resistance; easy application; Pre-cut symbols and legends – standard and custom.
Application :
It can be used for road signs; letters; arrows; graphics; warning at port; airport; toll; parking lot ect. Pre-cut symbols and legends – standard and custom.

Application Methods.

1. Apply tape only to a clean, dry, grease & dust free surfacce.

2. Cut the tapes according to your need, peel off the elease liner.

3. Press firmly into position to obtain maximum adhesion from the adhesive. You can get the best adhesion at 23℃. At low temperatures, there is a chance of condensation forming, and the tack of the adhesive can be reduced.

4. Use rubber roll or rubber ramp to press.

Detailed Images

Standard Dimension:

-Standard length: 33m, 50m
Standard width: 10cm, 15cm, 20cm, 40cm, 45cm; Or according to customer's requirement.
Available color: white, yellow, black, green, blue

-Contact me for more information .
Packing & Delivery




Individual package



Could customize the carton box dimensions and logo printing.

Tape core printing is also OEM.
