Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
BIPV Mounting
-
Certificate:
-
CE,ISO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
corenice
-
Model Number:
-
solar trailer
-
Load Power (W):
-
other
-
Output Voltage (V):
-
24 V, 24V
-
Output Frequency:
-
DC
-
Work Time (h):
-
24 Hours
-
Name:
-

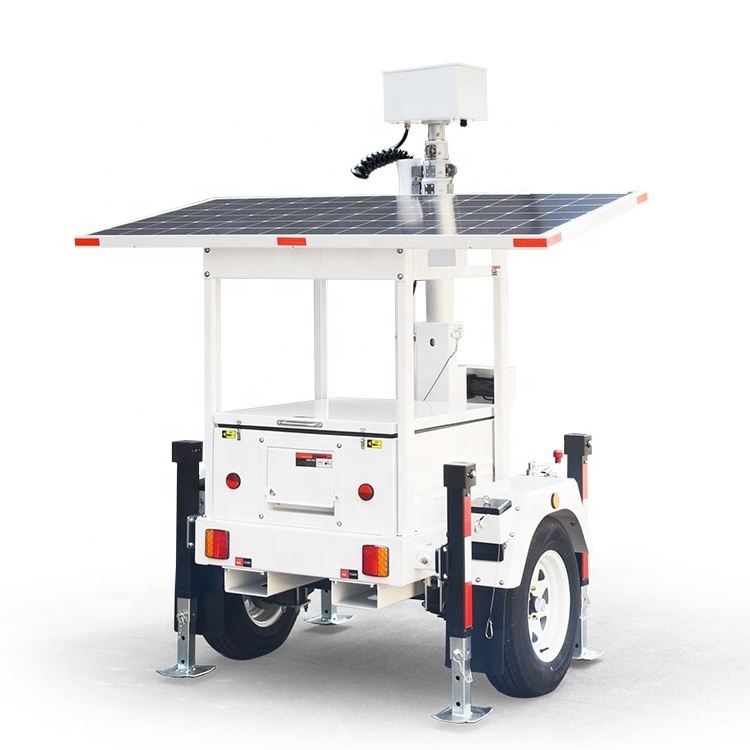

Traffic Lights Surveillance Mounted Mobile Light Tower Solar Trailer
-
Solar panel:
-
4*380W Mono
-
Battery:
-
8*150AH
-
Mast:
-
9m
-
Axle No.:
-
Single
-
Size:
-
3600*1780*2150mm
-
Weight:
-
1400KGS
-
Color:
-
Yellow/black/white
-
Solar Trailer:
-
mobile solar power trailer
Quick Details
-
Application:
-
Industrial
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid
-
Controller Type:
-
MPPT
-
Mounting Type:
-
BIPV Mounting
-
Certificate:
-
CE,ISO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
corenice
-
Model Number:
-
solar trailer
-
Load Power (W):
-
other
-
Output Voltage (V):
-
24 V, 24V
-
Output Frequency:
-
DC
-
Work Time (h):
-
24 Hours
-
Name:
-
Traffic Lights Surveillance Mounted Mobile Light Tower Solar Trailer
-
Solar panel:
-
4*380W Mono
-
Battery:
-
8*150AH
-
Mast:
-
9m
-
Axle No.:
-
Single
-
Size:
-
3600*1780*2150mm
-
Weight:
-
1400KGS
-
Color:
-
Yellow/black/white
-
Solar Trailer:
-
mobile solar power trailer
|
Specification Selection Table |
|||
|
Main Parts |
Charact |
Specification for Your Options |
|
|
Solar Panel |
Material |
monocrystalline silicon |
|
|
Power |
280w/380w/445w |
||
|
Number |
from 1 to 16 as your request |
||
|
Storage Battery |
Catagory |
gel battery, AGM battery |
lithium battery |
|
Capacity |
150ah / 200ah |
12v200a / 24v300a |
|
|
Number |
1,2,3,4,5,6...as your request |
||
|
System Voltage |
12v/24v/48v |
||
|
Back-Up Generator |
Yes or No |
optional |
|
|
Yes Option |
diesel 3kw,5kw; |
gasoline 3kw |
|
|
Mast |
Extendted ways |
foldable or vetical |
|
|
Winch |
manual / electric / hydraulic |
||
|
Extended Heighth |
2-12m |
||
|
Spiral Cable |
Yes or No |
||
|
Standard |
Trailer Standard |
AU / US / EU / Others |
|
|
Electric Standard |
as your request |
||
|
Brake System |
Yes or No |
|
|
|
Yes Option |
Mechanial brake / electric brake |
||
|
Appearance refer to our common design or could be customized according to your request |
|||
1. 380W/455W high efficient mono-crystal solar panel
2. Maintance free with large battery capacity for your options at DC12v/24v/48v System
3. Lifting height from 4m to 12m meters manual/electric/hydraulic for your options
4. Back up generator type options are diesel, gasoline and propane generator, power from 3kw to 7kw as your optional
5. Optional mechanical/electric brake system with Australia/Europe/North America Standard
6. High quality components, perfecting system performance, with maximum conversion efficiency of 98% and full load efficiency of 97%.
7. Real-time positioning and remote control can be set
8. Clean energy
