Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GTD
-
Model Number:
-
GTD-KNX
-
Mechanical Life:
-
10 Years
-
Product Name:
-

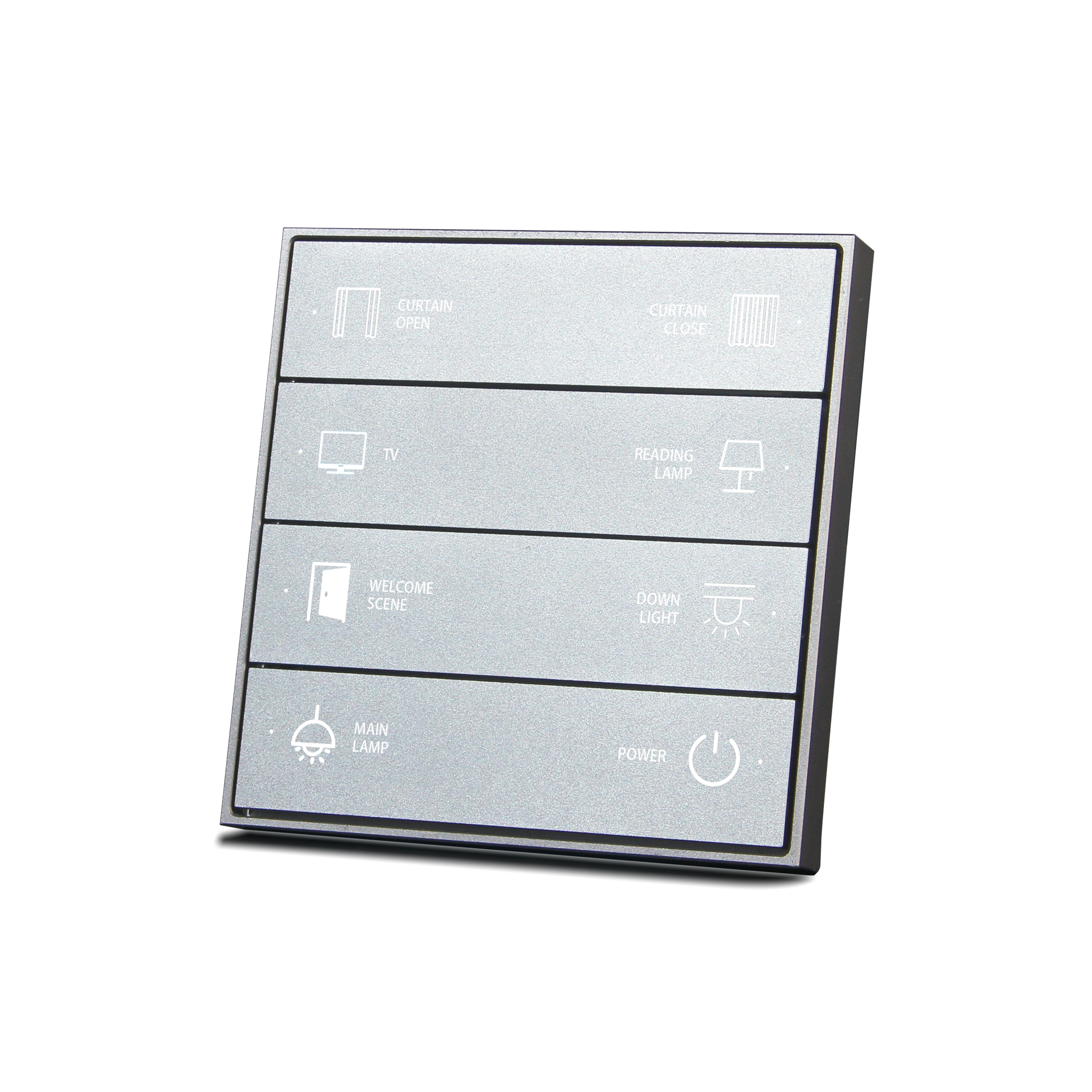

KNX 8 button switch
-
Warranty:
-
2 Years
-
Management software:
-
B/S architecture cloud server
-
Feature:
-
Smart Wall Switch
-
System:
-
TCP/IP
-
Function:
-
Weak current control strong current, smart lighting control
-
Operating temperature:
-
-15℃-60℃
-
PMS Integrate:
-
Support
-
Keyword:
-
Button Panel Light Wall Switch
-
Color:
-
Black/ Champagne gold/ Silver
Quick Details
-
Max. Current:
-
12 MA
-
Max. Voltage:
-
21-30 V DC
-
Customized support:
-
Icon color customization
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GTD
-
Model Number:
-
GTD-KNX
-
Mechanical Life:
-
10 Years
-
Product Name:
-
KNX 8 button switch
-
Warranty:
-
2 Years
-
Management software:
-
B/S architecture cloud server
-
Feature:
-
Smart Wall Switch
-
System:
-
TCP/IP
-
Function:
-
Weak current control strong current, smart lighting control
-
Operating temperature:
-
-15℃-60℃
-
PMS Integrate:
-
Support
-
Keyword:
-
Button Panel Light Wall Switch
-
Color:
-
Black/ Champagne gold/ Silver
Product introduction
This product is a temperature control panel with standard EIB/KNXprotocol and adopts KNX bus standard. Access to the KNX system is achieved through standard EIB terminals, and auxiliary power supply is required. The database can be imported into ETS3, ETS4 or E-TS5 engineering software for programming.The product can realize functions such as light control switch, curtain control, dimming, different scenes, the related value send and sequence control, etc.
Product Features
Feature rich
The buttons combine curtains, dimming, value send, scene recall and storage, sequence, and logic functions, which can be
controlled at will.
controlled at will.
Energy saving, safety
KNX products adopt a low-power design scheme, and the standby power consumption is less than 1W. The research conducted by the KNX Association shows that up to 50% energy savings will be achieved with KNX-based home and building control networks.
Featured Materials
The panel material is made of aviation aluminum plate, which is processed by CNC with high precision finishings to achieve higher accuracy and degree of finish.The backboard is made of fireproof PC material, whose surface treatment includes sandblasting, wire drawing oxidation, mirror plating, piano baking paint, etc.
Seamless product connection
The intelligent temperature control panel can be freely matched with many KNX products, supports multiple configuration modes, realizing stronger compatibility.
Flexible function configuration and easy modification
Four function keys, which can be used for switch, curtain, dimming, and value sending functions. The intelligent temperature control panel is developed based on KNX bus technology, and users can configure corresponding functions according to their own needs. The function modification is convenient and flexible, only a small amount of program adjustment si required, and there is no need to re-wire on-site.
Smart Dimming
The switch configures the light adjustment function, according to the life scene need, adjust the light and shade, etc., let the light follow your heart, different s-cenes at night are accompanied by ideal light.
Recall and save scenes
Based on life scenes such as "going home", "leaving home", and "resting", the three kinds of systems are equipped with 4 sets of scene functions, creating a comfortable and natural smart home experience for you.
Product parameters
|
Bus voltage
|
21- 30V DC
|
|
Bus current consumption
|
<12MA
|
|
Bus power consumption
|
Max.360mw
|
|
Auxiliary voltage
|
12- 30V DC
|
|
Auxiliary power consumption
|
<1.5 W
|
|
Programming keys
|
Pressing key operation through the hole at the back of the panel
|
|
Programming indicator
|
After the programming key is pressed, the red indicator lights up, and the green indicator flashes during normal operation.
|
|
Running
|
-5°C ~ +45°C
|
|
Storage
|
-25°C ~ +55°C
|
|
Transportation
|
-25°C ~ +70°C
|
|
Humidity
|
< 93% Excluding condensation
|
