Quick Details
-
Model Number:
-
SMN4166
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25~80
-
Max. Current:
-
10
-
Weight:
-
40-90g
-
degree of protection:
-
IP67
Quick Details
-
Max. Voltage:
-
600VAC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SUNS
-
Model Number:
-
SMN4166
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25~80
-
Max. Current:
-
10
-
Weight:
-
40-90g
-
degree of protection:
-
IP67

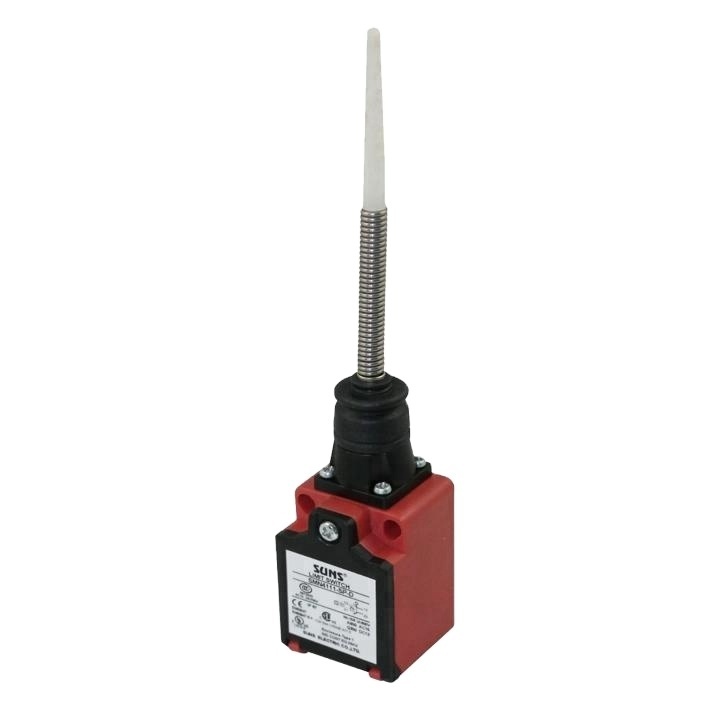

| Features:M16 OR PG11 CONDUIT DPDT SWITCH | |
| 1)Designed for application with small mounting space | |
| 2)Highly rigid construction(head and cover snugly fit in box) | |
| 3)Wide range of actuators available | |
| 4)Pre-molded flexible cable gland for fast and simple writing temination | |
| Specifications: | |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency | Mecanical:120ops/min Electrical: 30ops/min |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage | 250V AC(EN60947-5-1) |
| 10A | |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1.0×10 7 (operations) |
| Electrically 5×10 5 (operations) | |
| Operating Temperature: | ABOUT-25~80(14~176) |
| Humidity: | <95%RH |
| Weight | 40-90g |
| Degree of Protection: | IP67 |
