Quick Details
-
Model Number:
-
HRTC-19D
-
Power Supply:
-
AC85~ 400V, 50/60HZ
-
Control Mode:
-
Auto-PID / Manual
-
Sensor Type:
-
Thermocouple J or K
-
Control output:
-
PWM or SSR
-
Output Type:
-
Zero Cross / Phase Angle
-
Consumed Power:
-
< 2.5W
-
Working Temperature:
-
0~50℃(32~122℉)
-
Load Capacity:
-
20A, 50W~2200W(110V) 100W~4400W(220V)
-
Storage Temperature:
-
-20~70℃(-4~158℉)
-
Working Humidity:
-
10~80%RH(No condensing)
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TINKO
-
Model Number:
-
HRTC-19D
-
Power Supply:
-
AC85~ 400V, 50/60HZ
-
Control Mode:
-
Auto-PID / Manual
-
Sensor Type:
-
Thermocouple J or K
-
Control output:
-
PWM or SSR
-
Output Type:
-
Zero Cross / Phase Angle
-
Consumed Power:
-
< 2.5W
-
Working Temperature:
-
0~50℃(32~122℉)
-
Load Capacity:
-
20A, 50W~2200W(110V) 100W~4400W(220V)
-
Storage Temperature:
-
-20~70℃(-4~158℉)
-
Working Humidity:
-
10~80%RH(No condensing)

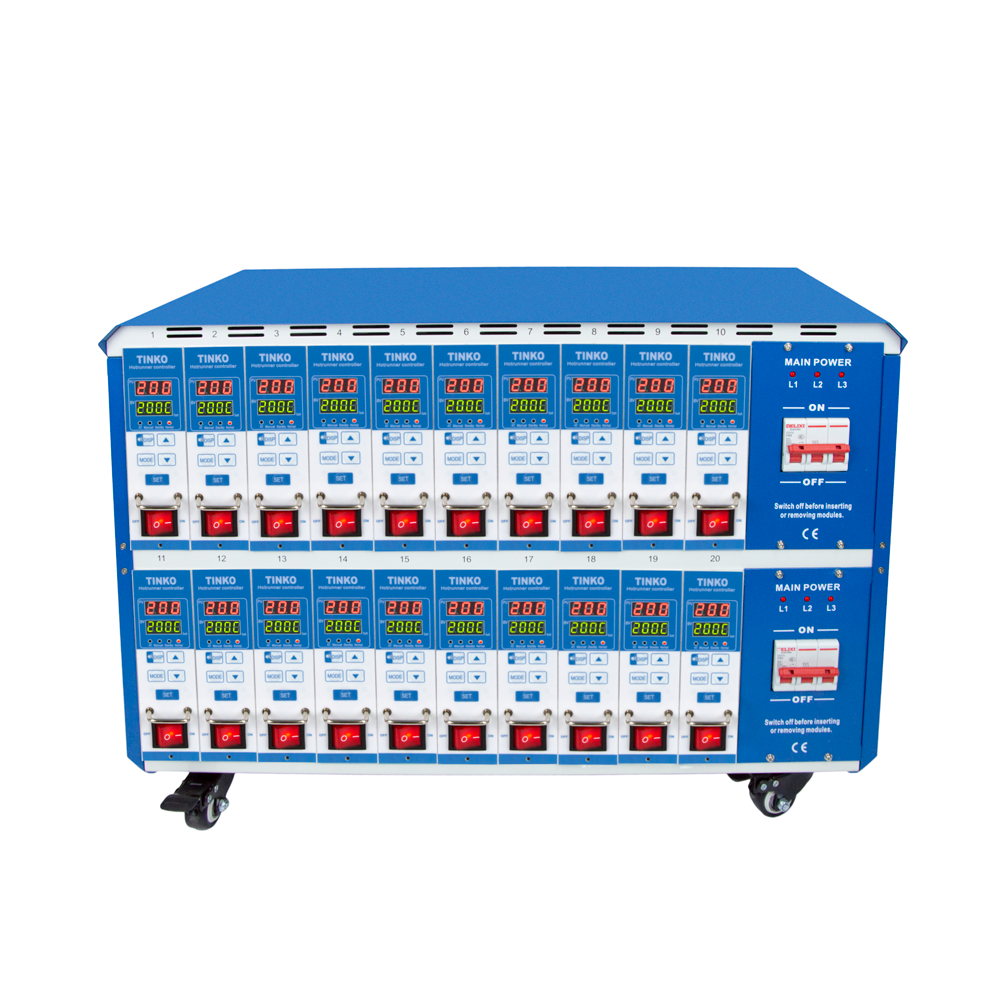

HRTC-20A
Hot Runner Temperature Controller Series
Products Description
1. General Specifications
|
Power Supply
|
1-phase 3-wire, 240Vac, 50/60Hz
3-phase 4-wire, 240Vac, 50/60Hz
3-phase 5-wire, 380Vac, 50/60Hz
|
Mainframe
|
Blue & white
|
|
|
|
Control Module
|
HRTC-A / HRTC-B / HRTC-C / HRTC-G
|
|
Sensor Type
|
Thermocouple J or K
|
Module Qt'y
|
20
|
|
Temperature Control
|
0~450℃(32~842℉)
|
Control Mode
|
Auto-PID / Manual
|
|
Output Type
|
Zero Cross / Phase Angle
|
Control Accuracy
|
±0.1%F.S
|
|
Connector Type
|
Customized
|
Load Capacity
|
15A, 3600W
|
|
Wiring Mode
|
Customized
|
Storage Temperature
|
-20~70℃(-4~158℉)
|
|
Working Temperature
|
0~55℃(32~131℉)
|
Working Humidity
|
10~80%RH(No condensing)
|
2. Features
Alarm when the followings occurred
1. Ultra-high or ultra-low Temperature
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
6. Over voltage of power supply
Protection activated in the following situations:
1. Over voltage self-protectd, max.AC500V
2. Thermocouple input protection, prevent module damaged by misconnection
3. Thermocouple & heater inverse protection, prevent thermocouple damaged by misconnection
4. Soft-start mode, avoid the moisture make the heater burn out
5.Heater dehumidified time can be extended
COMPONETS
■ Mainframe
■ Module
■ Connector
■ Cable
■ Blank plate (Exclude 2, 4, 6, 8, 10, 12, 24 zones or their integer multiple)
■ Connector
■ Cable
■ Blank plate (Exclude 2, 4, 6, 8, 10, 12, 24 zones or their integer multiple)
APPLICATIONS
Hot runner temperature controller is a crucial part in the hot runner system.
Widely used in
electronics
,
automobiles
,
medical
,
commodities
,
toys
,
packaging
,
architecture
,
office equipment
and other industrial sectors.
More Options
APPLICABLE MODULES
|
Features
|
HRTC-A
|
HRTC-B
|
HRTC-G
|
||
|
Zone
|
Single zone
|
single zone
|
Single zone
|
||
|
Process Display
|
LED
|
LED
|
LCD
|
||
|
Sensor Type
|
Thermocouple J or K
|
|
|
||
|
Power Switch
|
Pushbutton
|
Toggle switch
|
Pushbutton
|
||
|
Control Mode
|
Auto PID or Manual
|
|
|
||
|
Control Accuracy
|
±0.1%F.S
|
±0.1%F.S
|
±0.1%F.S
|
||
|
Comply with DME/Athena/YUDO
|
YES |
|
|
||
|
Communication
|
optional
|
optional
|
optional
|
||
|
Hyperlinks
|
|||||
MAINFRAME
ZONE
view more>>
■ 1~36 zones for you to choose
■ Customised to your requirement
Orange
■ Welding
■ Only for 5, 8, 12 zones
Black
■ Assenbling ■ For all zones
Blue
■ Assenbling ■ For all zones
HRTC ACCESSORIES
