Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XR
-
Dimension(L*W*H):
-
9.5*500mm
-
Weight:
-
0.3 KG
-
Warranty:
-
6000hours
-
Working Temperature Range:
-
100 - 300 ℃
-
Warranty of core components:
-
6000 hours
-
Core Components:
-
Heating Wire, High Purity MgO
-
Wattage Density:
-
2-30W/cm2
-
Heating Wire:
-
NiCr80/20
-
Insulation:
-
High Purity MgO
-
Thread:
-
With or w/o
-
Thermocouple:
-
K or J
-
Wire length:
-
300mm
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ISO9001
Quick Details
-
Type:
-
Immersion Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XR
-
Dimension(L*W*H):
-
9.5*500mm
-
Weight:
-
0.3 KG
-
Warranty:
-
6000hours
-
Working Temperature Range:
-
100 - 300 ℃
-
Warranty of core components:
-
6000 hours
-
Core Components:
-
Heating Wire, High Purity MgO
-
Wattage Density:
-
2-30W/cm2
-
Heating Wire:
-
NiCr80/20
-
Insulation:
-
High Purity MgO
-
Thread:
-
With or w/o
-
Thermocouple:
-
K or J
-
Wire length:
-
300mm
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ISO9001
Product Description

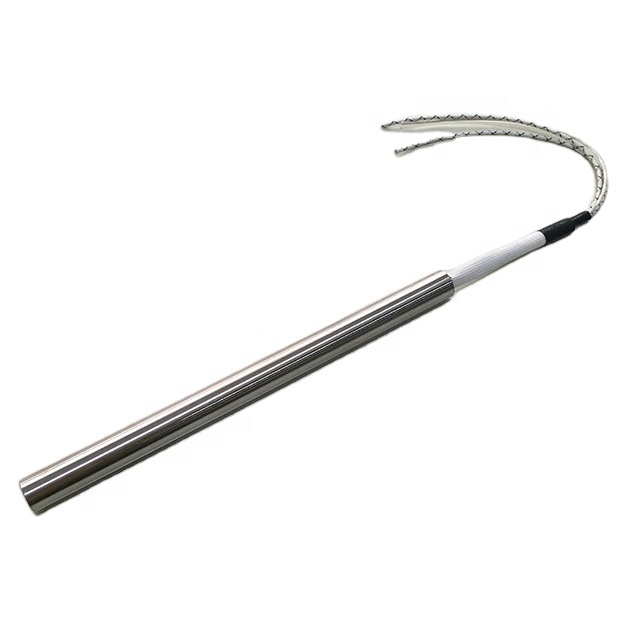

Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.
|
Item name
|
High power water heating element cartridge immersion heater
|
|
Resistance heating wire
|
Ni-Cr or FeCr
|
|
Sheath
|
stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
|
|
Insulation
|
High-purity Mgo
|
|
Maximum temperature
|
800 degree Celsius
|
|
Leakage current
|
750℃,＜0.3mA
|
|
Withstand voltage
|
＞2KV， 1mins
|
|
AC on-off test
|
2000 times
|
|
Voltages available
|
380V,240V, 220V,110V,36V,24V or 12V
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Thermocouple
|
K type or J type
|
|
Lead wire
|
300mm length; Different type of wire (Teflon/silicone high temperature frberglass) is available
|
Specification
|
Size
(Dia*L mm)
|
Power
(low density W)
|
Power
(high density W )
|
Size
(Dia*L mm)
|
Power
(low density W)
|
Power
(high density W)
|
|
φ6*60
|
60
|
120
|
φ14*100
|
200
|
450
|
|
φ6*100
|
100
|
200
|
φ14*120
|
250
|
520
|
|
φ6*200
|
190
|
350
|
φ14*150
|
330
|
650
|
|
φ8*50
|
65
|
120
|
φ14*200
|
400
|
880
|
|
φ8*100
|
125
|
250
|
φ14*250
|
550
|
1000
|
|
φ8*150
|
200
|
350
|
φ14*300
|
650
|
1300
|
|
φ8*200
|
250
|
500
|
φ16*100
|
250
|
500
|
|
φ10*60
|
100
|
200
|
φ16*120
|
300
|
600
|
|
φ10*80
|
125
|
250
|
φ16*150
|
350
|
750
|
|
φ10*120
|
200
|
375
|
φ16*200
|
500
|
1000
|
|
φ10*150
|
235
|
475
|
φ16*250
|
600
|
1250
|
|
φ10*200
|
300
|
600
|
φ16*300
|
750
|
1500
|
|
φ10*300
|
470
|
900
|
φ18*100
|
250
|
550
|
|
φ12*60
|
115
|
225
|
φ18*150
|
400
|
850
|
|
φ12*100
|
200
|
375
|
φ18*200
|
550
|
1150
|
|
φ12*120
|
225
|
450
|
φ18*300
|
850
|
1500
|
|
φ12*150
|
280
|
550
|
φ20*100
|
300
|
650
|
|
φ12*200
|
375
|
750
|
φ20*150
|
450
|
950
|
|
φ12*300
|
550
|
1000
|
φ20*300
|
950
|
1800
|
Other specification customized
Product Process
Application
* Liquid Immersion
* Plastic Molds
* Labeling/Sealing
* Medical Equipment
* Packaging Equipment
* Hot Stamping
* Plastic Molds
* Labeling/Sealing
* Medical Equipment
* Packaging Equipment
* Hot Stamping
* 3D Printers
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding
