Quick Details
-
Brand Name:
-
SERATLINK
-
Use:
-
FTTH
-
Warranty Time:
-
12 Month
-
Model:
-
HG7024
-
Application:
-
FTTH FTTB FTTX Network
-
Fiber Type:
-
GPON
-
Configuration:
-
4GE+2.4G&5G WiFi
-
Verson:
-
English
-
Antenna gain:
-
5dBi
-
Power adapter:
-
EU, US, UK, AU etc.
-
Power supply:
-
12V 1.5A
-
Weight:
-
≤0.5kg
-
Color:
-
White
Quick Details
-
Type:
-
ONU
-
Model Number:
-
HG7024
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SERATLINK
-
Use:
-
FTTH
-
Warranty Time:
-
12 Month
-
Model:
-
HG7024
-
Application:
-
FTTH FTTB FTTX Network
-
Fiber Type:
-
GPON
-
Configuration:
-
4GE+2.4G&5G WiFi
-
Verson:
-
English
-
Antenna gain:
-
5dBi
-
Power adapter:
-
EU, US, UK, AU etc.
-
Power supply:
-
12V 1.5A
-
Weight:
-
≤0.5kg
-
Color:
-
White
About product

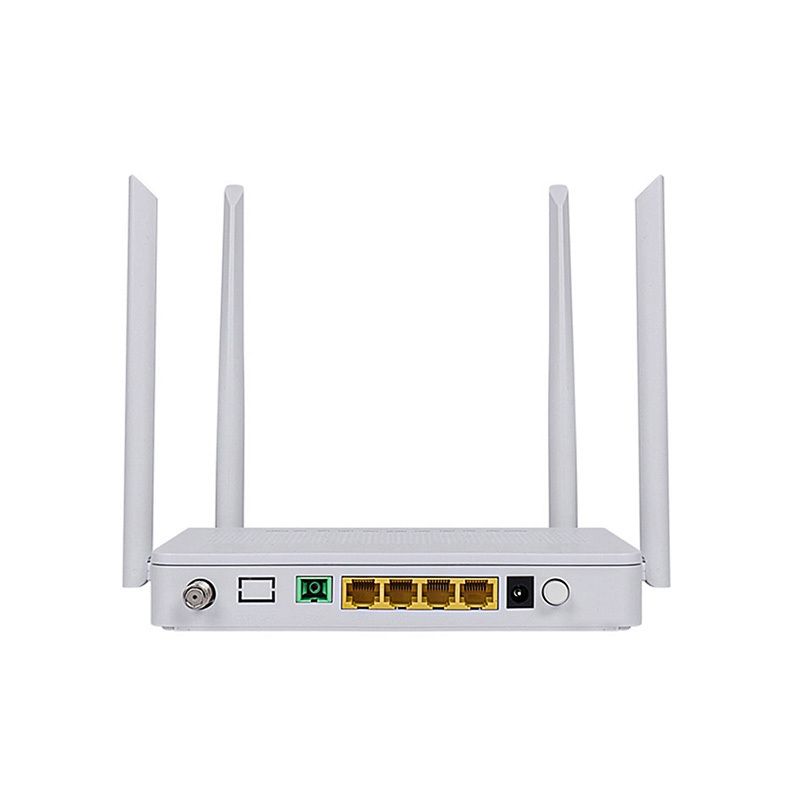

HG7024 is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi (2.4G+5G) port and RF interface that providing with high-speed data services and high-quality video services to users.
|
Model
|
Configuration
|
|
|
|
|
Dimension/pcs
|
||||
|
|
LAN
|
Telephone
|
Wifi
|
PPPOE
|
Firmware
|
|
||||
|
HG7024
|
4GE
|
no
|
2.4G&5.8G
|
yes
|
English
|
180x133x28mm/0.65kg
|
||||
Specification
Main Feature:
1.Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
2.Support IPV4 & IPV6 Management and transmission
3.Support TR-069 remote configuration and maintenance
4.Support Layer 3 gateway with hardware NAT
5.Support Multiple WAN with Route/Bridge mode
6.Support Layer 2 802.1Q VLAN, 802.1P QoS,ACL etc
7.Support IGMP V2 and MLD proxy/ snooping
8.Support DDNS, ALG, DMZ, Firewall and UPNP service
9.Support bi-directional FEC
|
Model Number
|
HG7024
|
|
Interface
|
1* G/EPON+4*GE+2.4G/5.8GWLAN+1*RF
|
|
Ethernet Interface
|
4* RJ45 10/100/1000BASE-T
|
|
CATV Interface
|
Interface type: 1*RF
Optical receiving wavelength: 1550nm RF output level : 80±1.5dBuV Input optical power: +2~-15dBm AGC range: 0~-12dBm Optical reflection loss： >14 MER: >31@-15dBm |
|
PON Interface |
Interface Type: SC/UPC, CLASS B+
Transmission distance: 0～20km Working wavelength: Up 1310nm；Down 1490nm； RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps；Down 2.488Gbps EPON: Up 1.244Gbps；Down 1.244Gbps |
|
Wireless
|
Interface type：External 4*2T2R External antenna
Antenna gain: 5dBi Interface maximum rate: 2.4G WLAN： 300Mbps 5.8G WLAN： 866Mbps Interface working mode: 2.4G WLAN：802.11 b/g/n 5.8G WLAN：802.11 a/n/ac |
|
Indicator light
|
POWER/PON/LOS/LAN1/ LAN2/2.4G/5G /RF/OPT
|
|
Power Supply
|
DC 12V/0.5A
|
|
Power Adapter Input
|
100V-240V AC, 50Hz-60Hz
|
|
Power Consumption
|
18W
|
|
Working Temperature
|
-20℃～+50℃
|
|
Environment Humidity
|
5%～95% (non-condensing)
|
|
Dimensions(L×W×H)
|
180mm x 133mm x 28mm
|
Package:
Why Choose Us
FAQ
Q: Can we get a lower price? Any Discount?
A: Yes, price is not a problem,everything could be negotiated based on the quantity.
Q: OEM,ODM Service is available?
A: Support.
Q: What is your MOQ?
A: No MOQ for any sample test.
Q: Can I have a sample order for this product?
A: Support.
Q: For Trade Terms, such as payment ?
●Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union .
●Price Terms: EXW Shenzhen .
●Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent .
Q: How about the Warranty?
A:Most products come with a 24-month warranty. Human causes and other brands are not included.
A: Yes, price is not a problem,everything could be negotiated based on the quantity.
Q: OEM,ODM Service is available?
A: Support.
Q: What is your MOQ?
A: No MOQ for any sample test.
Q: Can I have a sample order for this product?
A: Support.
Q: For Trade Terms, such as payment ?
●Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union .
●Price Terms: EXW Shenzhen .
●Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent .
Q: How about the Warranty?
A:Most products come with a 24-month warranty. Human causes and other brands are not included.
We are the manufacturer of the product, Please contact us,Thank you！
