Quick Details
-
Loading capacity:
-
80m3/h
-
Excavation distance:
-
1820 1530 mm
-
Excavation width:
-
4800 3200 mm
-
Excavation height:
-
2570 2300 mm
-
Excavation depth:
-
480 320 mm
-
Walking speed:
-
0.54±5%
-
Scraper chain speed:
-
44 m/min
-
Maximum working pressure:
-
≤32 mpa
-
Local Service Location:
-
Egypt
-
After-sales Service Provided:
-
Overseas service center available
Quick Details
-
Weight (KG):
-
11860
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Loading capacity:
-
80m3/h
-
Excavation distance:
-
1820 1530 mm
-
Excavation width:
-
4800 3200 mm
-
Excavation height:
-
2570 2300 mm
-
Excavation depth:
-
480 320 mm
-
Walking speed:
-
0.54±5%
-
Scraper chain speed:
-
44 m/min
-
Maximum working pressure:
-
≤32 mpa
-
Local Service Location:
-
Egypt
-
After-sales Service Provided:
-
Overseas service center available
Products Description

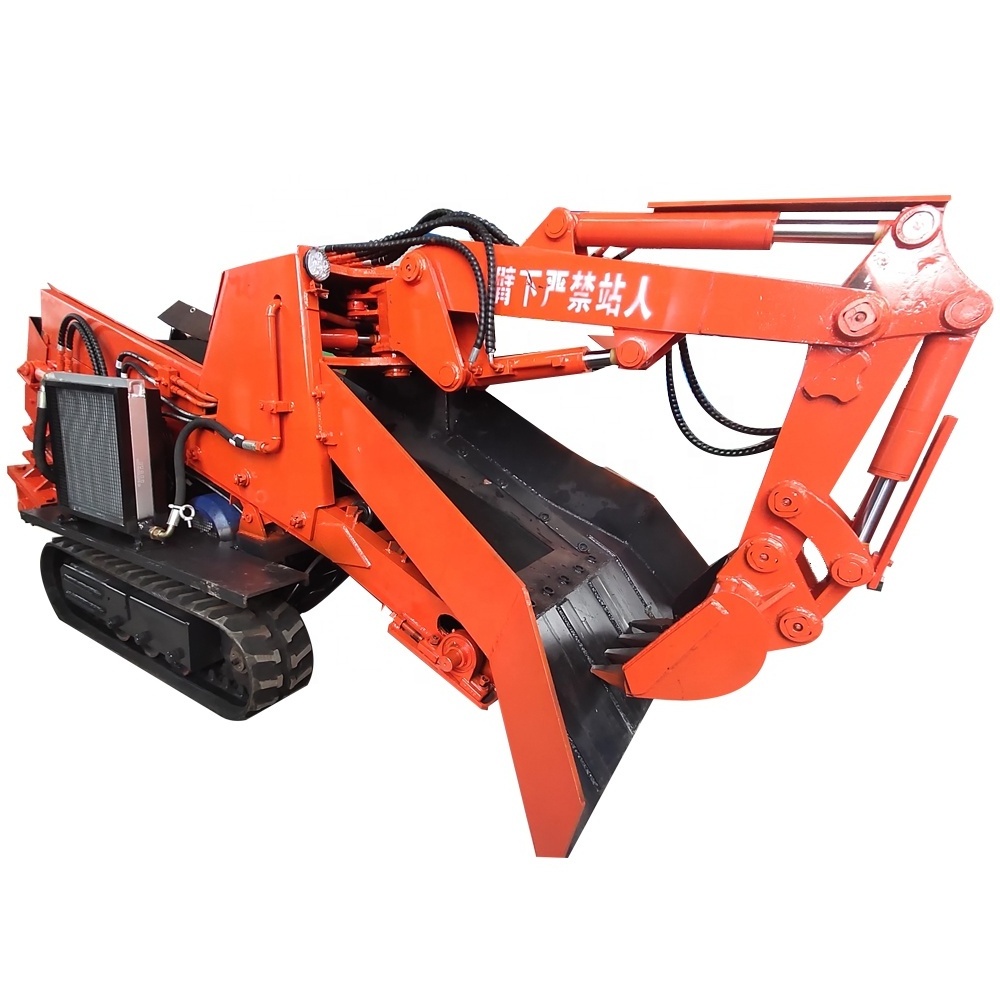

ZWY-80/45L
crawler mucking rock loader
, special sloping type ≤ 32 degrees, is a continuous production high-efficiency ore-out equipment, mainly used for excavation of mine rock roadway and semi-coal rock roadway, also It can be used for loading operations in diversion tunnels, railway tunnel construction, and national defense cavern construction. It can be used in conjunction with hydraulic mine drilling trucks produced by our company to realize mechanization of mine excavation and greatly increase excavation speed. It can be applied to small sections and slopes. 20°~-32° roadway.
1.The main features of ZWY-80/45L
crawler mucking loader
:
Retrieving power, strong loading capacity. Sealed and lubricated crawler mucking loader it easy to adjust the tensioned crawler unit and has a long service life.
2.Good interchangeability;
The hydraulic breaker can be installed to crush, repair the large rock and coal blocks after the blasting.
Can use the work arm to achieve the risk of face-to-face, full-section rock loading, leaving no dead ends, no manual cleaning of the work surface.
Applicable to tunnel section, tunnel section, roadway section, laneway section, inclined well section, drift section, diversion tunnel section, diversion tunnel section, culvert section, mine tunnel section, underground construction section, geotechnical engineering section, mining project section, excavation section, large section, small section tunneling, traction, transportation equipment and accessories.zmwm17
Product Paramenters
|
Project
|
Unit
|
Technical Parameter
|
|
Product Model
|
Track Type
|
ZWY-80/45L
|
|
Total weight
|
KG
|
11860
|
|
Loading capacity
|
m3/h
|
80
|
|
Excavation width
|
mm
|
4800 3200
|
|
Excavation distance
|
mm
|
1820 1530
|
|
Excavation height
|
mm
|
2570 2300
|
|
Excavation depth
|
mm
|
480 320
|
|
Unloading height
|
mm
|
1470-1646 (variable)
|
|
Unloading distance
|
mm
|
1600 (variable)
|
|
Walking speed
|
m/s
|
0.54±5%
|
|
Scraper chain speed
|
m/min
|
44
|
|
Applicable roadway slope
|
(o)
|
≤32
|
|
Maximum working pressure
|
mpa
|
≤32
|
|
Ground pressure
|
mpa
|
≤ 0.1
|
|
Ground clearance
|
mm
|
≤ 310
|
|
Total power
|
KW
|
45
|
|
Track inner width
|
mm
|
941 (can be widened)
|
