Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EWELIFT
-
Model Number:
-
NKLA121
-
Torque:
-
custom
-
Stroke Length:
-
100-400mm
-
Color:
-
black
-
Limit Switch:
-
Built-in Limit Switch
-
duty cycle:
-
20%
-
IP grade:
-
IP65
-
Operating Temperature:
-
-40 to 65℃
-
Protection:
-
Overload Protection
-
Load Capacity:
-
3000-8000N
-
speed:
-
8~14mm/s
-
Input Voltage:
-
12v/24v/36v/48vdc
Quick Details
-
Speed(RPM):
-
custom
-
Continuous Current(A):
-
0~30A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EWELIFT
-
Model Number:
-
NKLA121
-
Torque:
-
custom
-
Stroke Length:
-
100-400mm
-
Color:
-
black
-
Limit Switch:
-
Built-in Limit Switch
-
duty cycle:
-
20%
-
IP grade:
-
IP65
-
Operating Temperature:
-
-40 to 65℃
-
Protection:
-
Overload Protection
-
Load Capacity:
-
3000-8000N
-
speed:
-
8~14mm/s
-
Input Voltage:
-
12v/24v/36v/48vdc
Product Description

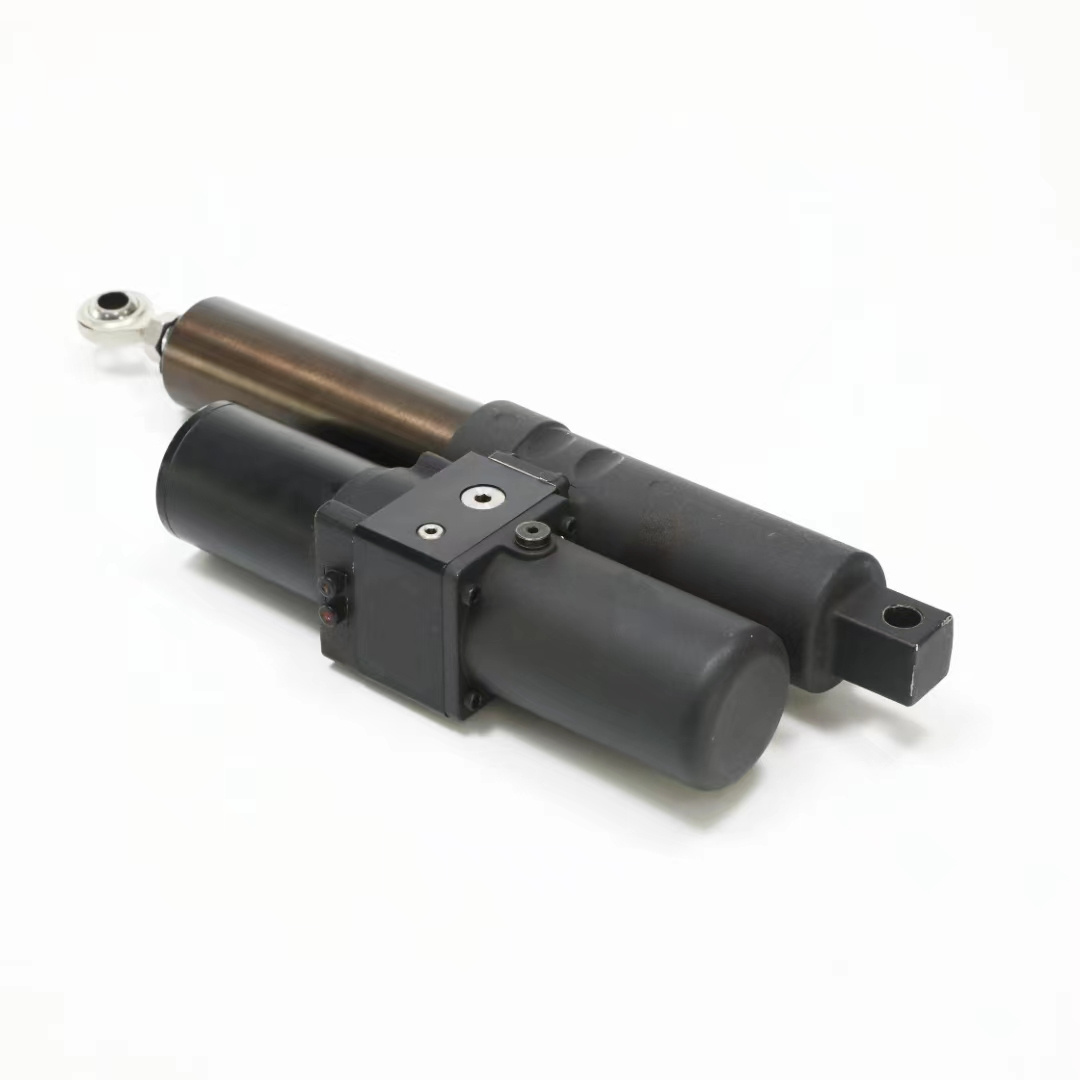

8000N 24VDC 20mm/s free load speed nkla121 electric hydraulic linear actuator
Nkla121 hydraulic cylinder 12VDC linear actuator is An electric over hydraulic linear actuator featuring an electric DC motor integrated with hydraulic valves, pump and cylinder in a compact package which fits for different kind of ATV / UTV implements for desired motion or switching in between working and transportation positions.
One actuator fits different implements and can be moved from one to another easily. Electric power required (12V DC) can be supplied from the power source of the ATV / UTV.
|
Product Name
|
EWELIFT electric Linear actuator
|
|
Dynamic Load push(N)
|
3000N~8000N
|
|
Input(VDC)
|
12V/24V
|
|
Speed at Full Load(mm/s)
|
8~14mm/s
|
|
Stroke Length(mm)
|
50~1000mm
|
|
Limit Switch
|
Built-in
|
|
Duty cycle
|
20%
|
|
IP Grade
|
IP65
|
|
CEStandard
|
CE
|
Feature
Application
EWELIFT Linear actuators are widely used in medical line ,industrial line , home care line , smart office line and many other applications
Production line
we have linear actuators , lifting columns , control box , wired handset and wireless remote controller production lines and other lines.
Certifications
EWELIFT has passed system certification of ISO9001 ,and our products has been approved by CE .
Packing & Delivery
10pcs linear actuators packed in one carton , few cartons packed in pallet , shipping by sea , air and express.
and we also accept customized, please inform us in advance.
