Quick Details
-
Material:
-
Carton or wooden case
-
Weight:
-
Based on product
-
Size:
-
Based on product
-
Power:
-
Based on product
-
Productivity:
-
5G 10G 15G 20G 25G/Hr
-
Weight (KG):
-
2 kg
-
Ozone capacity:
-
5G 10G 15G 20G 25G
-
Power supply:
-
Adjustable or enclosed electric card
-
Ozone generation unit:
-
Ceramic ozone tube
-
Ozone tube cooling method:
-
Water cooled,air cooled by fan
-
Ozone generation method:
-
Corona discharge
-
Ozone output adjustable range:
-
20%-100%
-
Voltage:
-
110/220V
-
Internal electrode material:
-
SS316L
-
External electrode material:
-
Aluminum heat sink
-
Application:
-
Water treatment or air purifier
Quick Details
-
Core Components:
-
Ozone tube
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Globalozone
-
Material:
-
Carton or wooden case
-
Weight:
-
Based on product
-
Size:
-
Based on product
-
Power:
-
Based on product
-
Productivity:
-
5G 10G 15G 20G 25G/Hr
-
Weight (KG):
-
2 kg
-
Ozone capacity:
-
5G 10G 15G 20G 25G
-
Power supply:
-
Adjustable or enclosed electric card
-
Ozone generation unit:
-
Ceramic ozone tube
-
Ozone tube cooling method:
-
Water cooled,air cooled by fan
-
Ozone generation method:
-
Corona discharge
-
Ozone output adjustable range:
-
20%-100%
-
Voltage:
-
110/220V
-
Internal electrode material:
-
SS316L
-
External electrode material:
-
Aluminum heat sink
-
Application:
-
Water treatment or air purifier

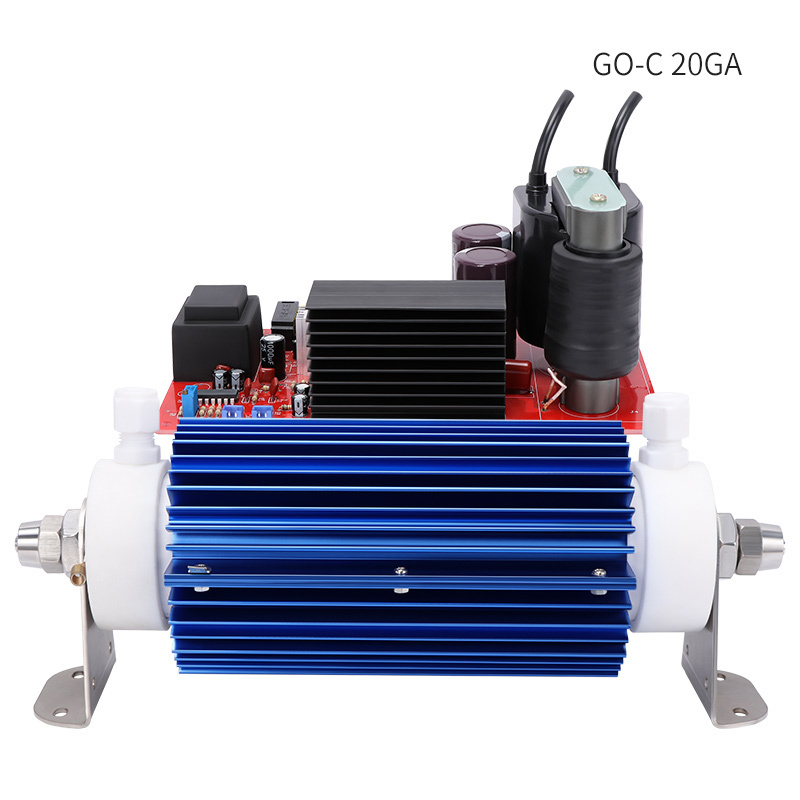

Ozone generator 10gh ozongenerator 10grams ceramic tubes o3 module 10gr
Features
1. Ozone output: 5G/Hr, 10G/Hr, 15G/Hr and 20G/Hr
2. Water cooled ceramic ozone tube with adjustable electric card, water cooled for internal electrode, air cooled for external electrode
3. Adjustable ozone output to meet with different requirements
4. I mported ceramic powder for ceramic ozone tube
5. SS316L internal electrode for years running without rusty
6. PVDF material connectors (best choice for anti oxidation) for several years running without ozone leakage
7. Electrode inside by water cooled, outside by aluminum heat sink for heating dissipation to ensure high and stable ozone output
Parameter
|
Item |
Unit |
GO-C 5GA |
GO-C 10GA |
GO-C 15GA |
GO-C 20GA |
|
Oxygen flow rate |
LPM | 1-2 | 2-3 | 3-6 | 8-10 |
|
Oxygen purity |
% |
99.99% | |||
|
Ozone concentration |
Mg/L |
49 .1 -5 2 . 5 |
5 5. 6 - 73.6 |
4 2 . 3 - 57.5 |
4 1 . 7 - 45.5 |
|
Ozone output |
G/Hr |
3. 15- 5.9 |
8.8 - 10 |
10.4 - 1 5. 2 |
21.84 - 25 |
|
Power |
Kw |
0.08 |
0.12 |
0.18 |
0.24 |
|
Line power supply |
220V 50Hz/110V 60Hz |
||||
|
Gas fitting |
mm |
ID dia4, ED dia8 |
|||
|
Power supply dimensions |
mm |
168×88×68 |
1 97 × 110 × 94 |
||
|
Power supply mounting holes |
mm |
152×80(dia3) |
1 8 5 × 101 (dia 4 ) |
||
|
Ozone cell dimensions |
mm |
209 × 8 0× 90 |
300 × 8 0× 90 |
312 × 11 0× 13 0 |
|
| Ozone cell mounting holes |
mm |
17 5 ×28(dia 6 ) |
265 ×28(dia 6 ) |
275 × 40 (dia 5 ) |
|
| Ozone cell NW | Kg |
0. 79 |
1.20 |
2.73 |
|
| Power supply NW | Kg |
0.64 |
1.16 |
||
FAQ :
Q: Are you a manufacturer or a trading company?
A: We are manufacturer since 2009 in Guangzhou China, providing OEM & ODM service for the ozone equipment, oxygen equipment and water treatment equipment.
Q: What ’ s your warranty ?
A: All products covered with 12 months warranty, life time technical support.Any quality problem during warranty time, we will send more parts for replacement.
Q: What's MOQ?
A:. One piece for certain model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Is there any discount?
A: Of course, more quantities, more discount , you can contact our sales online for more details or leave your message to us.
Q: Are your products conforming to our standards?
A:Yes, our products can pass the testings as you require, e.g.:CE, PSE, etc.
Q: How do you control the quality?
A:We control the product quality by IQC, three tests on production lines, and 100% aging testing before packaging. We had passed ISO900 1 report.
Q: How do you ship the goods and how long does it take?
A:We usually ship by DHL, UPS, FEDEX,TNT. It usually takes 4-5days to arrive. By air or by sea both acceptable.
Q: What ’ s the payment term ?
A: TT, PayPal, LC and also Alibaba order.
