Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FURDER
-
Model Number:
-
FRD 21E
-
Type:
-
Elevator Parts
-
Application:
-
Passager Elevator
-
Loading:
-
320kg - 630kg
-
Speed:
-
0.4-1.0 M/S
-
Hight:
-
≤25M
-
Traction ratio:
-
2:1
-
Traction pulley Dia:
-
210-240mm
-
Rated Voltage:
-
AC110/220 /380V
-
Certificates:
-
CE Certificate
-
Packing:
-
Wooden Case
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Training, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FURDER
-
Model Number:
-
FRD 21E
-
Type:
-
Elevator Parts
-
Application:
-
Passager Elevator
-
Loading:
-
320kg - 630kg
-
Speed:
-
0.4-1.0 M/S
-
Hight:
-
≤25M
-
Traction ratio:
-
2:1
-
Traction pulley Dia:
-
210-240mm
-
Rated Voltage:
-
AC110/220 /380V
-
Certificates:
-
CE Certificate
-
Packing:
-
Wooden Case
Product Description

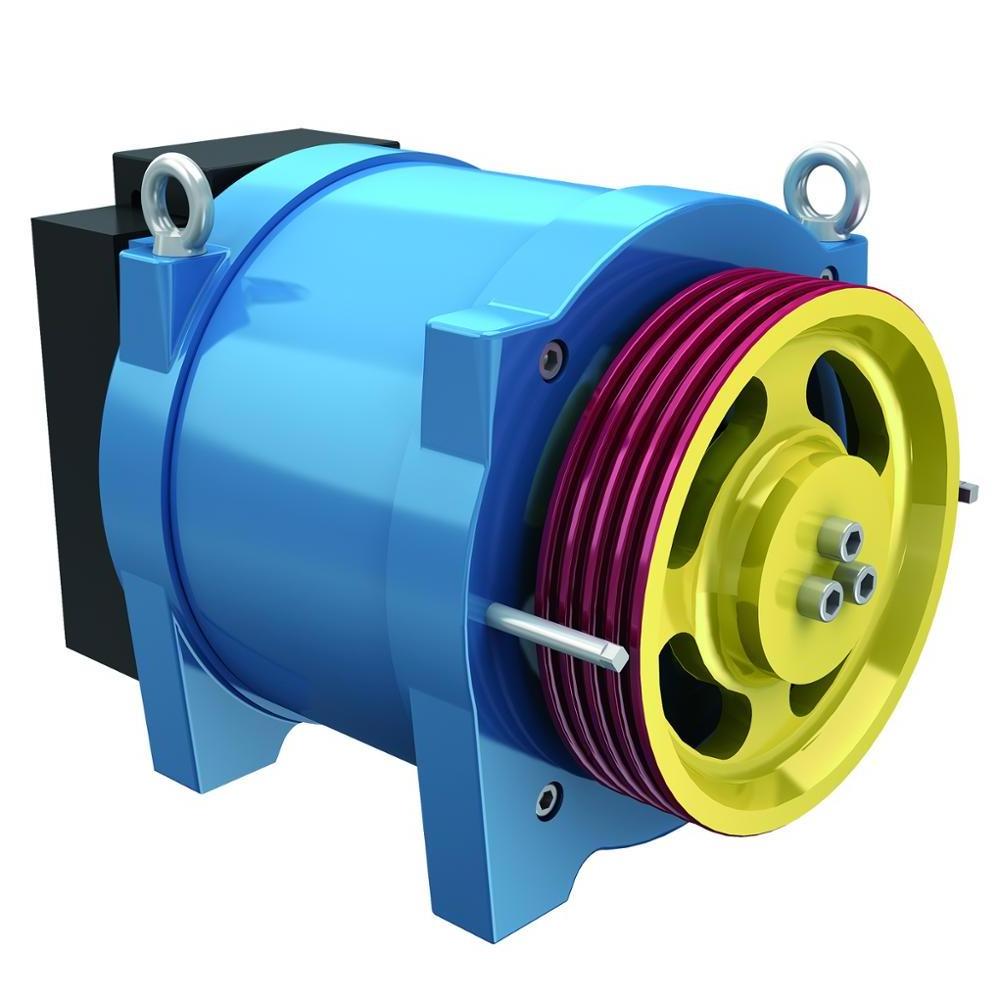

FURDER Permanent Magnet Synchronous Gearless Elevator Traction Machine
Establishing Joint European R&D center with European leading elevator traction machine supplier Spain Cologne Co.,LTD, Furder make great innovation on gearless elevator traction machine. our product reached the top level on the Quiet, Dynamic, Safe and Comfort characteristic.
|
Model
|
Load kg
|
Speed m/s
|
Pulley Dia.
|
|||
|
FRD21E-320
|
320
|
0.4 - 1.0
|
200mm
210mm
240mm
|
|||
|
FRD21E-400
|
400
|
0.4 - 1.0
|
|
|||
|
FRD21E-450
|
450
|
0.4 - 1.0
|
|
|||
|
FRD21E-630
|
630
|
0.4 - 1.0
|
|
|||
|
Traction Ratio: 2:1; The Max Axial Load: 2500KG
Brake : DC110V, 1.0A*2; Voltage: AC110V/220V/380V
For more information, click left picture to browse product detail or contact us to customize a solution.
|
|
|
|
|||
Certifications
CE CERTIFICATION EC TYPE EXAMINATION ISO:9001 TUV CERTIFICATION
European Technology
Reach & Development center in Europa
Establish European R&D center with leader supplier of gearless elevator traction machine in European - Spain Cologne company, building technical cooperation partnership each other.
Innovative Technologies
Introduce the creative solution researched and developed by Cologne company with Belgium Bell Carter Group, which is based on using synchronous gearless elevator traction machine and embedded rope. With the exclusivity agreement with Belgium Bell Carter Group, Cologne possesses this solution exclusively, which makes it the leading supplier of traction system in European elevator industry.
Innovation in Structure
They are compactly structured inner rotor traction machine with small size,light weight and easy way of installation of maintenance.
Running Sound ≤ 48DB
our traction machine makes a low noise around 42 dB in light condition.
Mercedes Benz S class speed on 55km/h, noise in cabin = 54dB.
Vibration velocity ≤ 0.10mm/s
Our traction machine has small vibration in operation. This effectively improves traction machine's operating efficiency and comfort.
Maintenance-free brake
Adopt European shaft brake technology and material, with high moment of force, small torsional vibration, low work noise, small size, easy install and maintenance-free.
Large axial load ≤ 10T
with axle diameter of Dia.120mm, can bear about 10T of load.The shaft extention is based on taper tolerance and is thus safer and reliable.
High insulation grade
use H-grade anti-corona enameled wire, with high grade insulation/heat resistance. stators are processed with VPI vacuum dipping insulation.
Advanced Manufacture
ADVANCED TECHNOLOGY & RIGOROUS DETECTION
Furder introduces global advanced production equipment and detection devices and produces products through standardized production lines whose working procedures are thorough and technologies are sophisticated. The quality of every product is ensured to be excelsior with the help of rigorous detection procedures.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
690(L) * 540 (W) * 680(H)mm
|
|
|
Weight
|
pulley 210mm:100kg-150kg
pulley 320mm:200kg-300kg
pulley 400mm:280kg-450kg
pulley 450mm:400kg-530kg
|
|
|
Packaging Details
|
1.The normal package is fumigation-free wooden cases box.
2.A 20 feet container can load about 21tons gearless elevator machine.
3. we can pack it according to customers special request.
|
|
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Propose Specific projects solutions
After-Sales Service
* 2 years warranty time
* instructing install and maintain the machine
* Engineers available to service machinery overseas.
