Quick Details
-
Panel Size:
-
38 x 21.1 mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KHN30601CB1D
-
Name:
-
14 segment led display
-
Digit height:
-
0.6 inch
-
Digit quantity:
-
3 digits
-
Package size:
-
38x21.1x7.8 mm
-
Connecting:
-
18 pins common cathode DIP
-
LED color:
-
Blue
-
Forward Voltage:
-
2.5 - 3.5 V
-
Forward Current:
-
3 - 15 mA
-
Storage:
-
45% - 80% RH & -20 to +80 ℃
-
Certificate:
-
ISO 9001:2015 & RoHS
-
Pixel Pitch:
-
2.5
Quick Details
-
Application:
-
alphanumeric display
-
Brand Name:
-
KOHON
-
Color:
-
Blue
-
Panel Size:
-
38 x 21.1 mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KHN30601CB1D
-
Name:
-
14 segment led display
-
Digit height:
-
0.6 inch
-
Digit quantity:
-
3 digits
-
Package size:
-
38x21.1x7.8 mm
-
Connecting:
-
18 pins common cathode DIP
-
LED color:
-
Blue
-
Forward Voltage:
-
2.5 - 3.5 V
-
Forward Current:
-
3 - 15 mA
-
Storage:
-
45% - 80% RH & -20 to +80 ℃
-
Certificate:
-
ISO 9001:2015 & RoHS
-
Pixel Pitch:
-
2.5
Blue 0.6 inch 15mm 3 digit 14 segment alphanumeric led display for digital indicators
7 segment led display specification of item KHN30601CB1D
1) Type: 3 digit 14 segment led display BLUE 0.6" digit height without decimal point

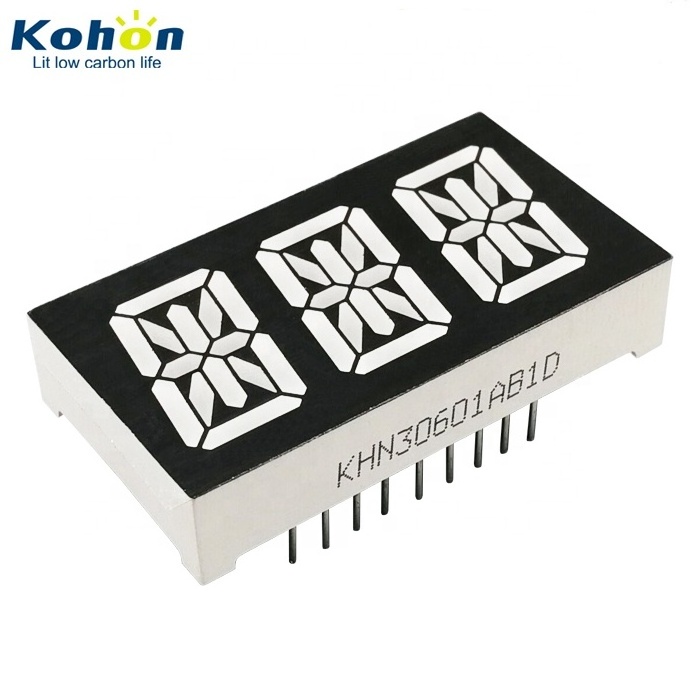

2) Image of display
3) 7 segment led display sizes and pins
4) 7 segment led display circuit diagram
5) 7 segment led display datasheet
Electrical and optical parameters:
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Luminous Intensity | I v | 25 | / | 32 | mcd | I f =20mA |
| Peak Wavelength | λ P | / | / | / | nm | I f =20mA |
| Dominant Wavelength | λ d | 460 | / | 470 | nm | I f =20mA |
| Forward Voltage | V f | 2.5 | 3.5 | V | I f =20mA | |
| Reverse Current | I r | / | / | 50 | μA | V r =5V |
| Forward Current(suggested) | I f | 3 | 5-10 | 15 | mA | / |
Absolute Maximum Ratings:
| Parameter | Rating | Unit |
| Reverse Voltage | 5 | V |
| Power Dissipation | 80 | mW/chip |
| Operation Temperature | -20 to +85 | °C |
| Storage Temperature | -20 to +85 | °C |
| Storage Humidity | 45%-85% | RH |
| Soldering Temperature(Wave soldering) | 260 °C in 3s, Iron soldering<360°C | |
| Peak IF(mA)(1/10 duty cycle 0.1ms pulse width) | 60 | mA/chip |
| Continuous Forwrd Current | 20 | mA/chip |
Other colors are also available, manufacturing facilities compliance with ISO 9001:2015 Quality system.
B. 7 segment led display common anode and common cathode
Common Cathode , all of the cathode(negative terminals) of the segment led are connected and brought out to a common pin.
Common Anode , all of the anode(positive terminals) of the segment led are connected and brought out to a common pin.
C. General 7 segment led display types
- Unit of 1-digit, 2-digit, 3-digit, 4-digit, 5-digit, 6-digit and Custom;
- Digit height from 0.25 inch to 5 inch;
- Emitting colors red , yellow , blue , orange , white , yellow-green , pure green ;
- Surface colors black, grey, red, white;
- Connecting by common anode or common cathode ;
- Lens colors white, yellow, red, green, transparent or water clear;
- Pin diameter ∅ 0.45mm, 0.51mm, 0.6mm...
- Pin length from 7.6mm to 38mm, generally 10.28mm, straight and bent type
