Quick Details
-
Brand Name:
-
CALIN
-
Model Number:
-
CA768
-
Product name:
-
20-Digit Split Keypad Prepaid Gas Meter with CIU/UIU
-
Gas Type:
-
LPG
-
Case:
-
aluminum
-
Maximum Working Pressure:
-
50 Kpa
-
Valve:
-
Bakelite phenolic
-
Certification:
-
STS certification
-
Color:
-
White + Gray
-
Function:
-
Residential Gas Meter
-
Payment system:
-
CALIN Vending System
-
Standard:
-
STS
Quick Details
-
Type:
-
Diaphragm/bellows meters, Prepaid Gas Meter
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CALIN
-
Model Number:
-
CA768
-
Product name:
-
20-Digit Split Keypad Prepaid Gas Meter with CIU/UIU
-
Gas Type:
-
LPG
-
Case:
-
aluminum
-
Maximum Working Pressure:
-
50 Kpa
-
Valve:
-
Bakelite phenolic
-
Certification:
-
STS certification
-
Color:
-
White + Gray
-
Function:
-
Residential Gas Meter
-
Payment system:
-
CALIN Vending System
-
Standard:
-
STS

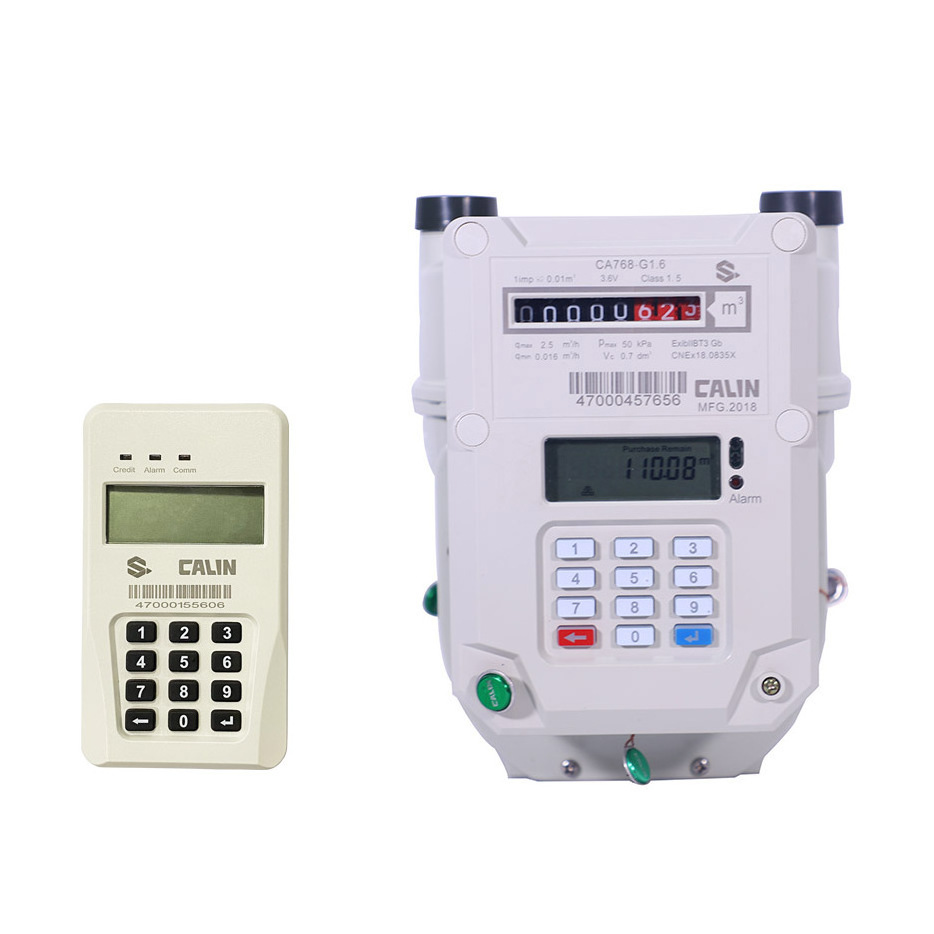

Tanzania RF AMR/AMI Support Remote Reading G2.5 20-Digit Split Keypad
Prepaid Gas Meter with CIU/UIU
Shenzhen Calinmeter is a pioneer in STS prepayment metering in China. As number 47th STS member, Calin has more than 10 years
experience in STS metering. The CA768 is a successful migration from STS electric to gas meter. Compared with traditional
mechanical or IC card type gas meter, STS meter doesnot need physical contact with vending device. As topup is working with 20
digits' code, the vending process can be integrated with third party payment such as mobile money, E-banking, which vastly expands
the vending channel and brings instant cash flow.
The meter is built with finest galvanized steel and die-casting aluminium and
maximum corrosion resistance . designed for various gas media.STS compliant electronic control unit is added as perfect revenue
protection facility at the same time.
Main Features
Full coverage of G1.6, G2.5 and G4
Compatible with mobile money, e-cash
Topup with 20 digits token code input via keypad
Hybrid Prepaid or post-paid mode
Up to 7 years' battery life
Anti tamper valve shut-off
Optional Valve Leakage Warning
LoRa TM sementech prepared for AMR/AMI smart metering setup
Low credit warning
Low power usage and low failure rate
Key Benefits
Highly secured STS standard
Tamper proof
Instant investment back, sufficient cash flow
Long life and smooth operation molded, convoluted diaphragms
Easy connection to User Interface Unit(UIU) for split type applications
Metrological Parameters
Prepaid Gas Meter with CIU/UIU
Shenzhen Calinmeter is a pioneer in STS prepayment metering in China. As number 47th STS member, Calin has more than 10 years
experience in STS metering. The CA768 is a successful migration from STS electric to gas meter. Compared with traditional
mechanical or IC card type gas meter, STS meter doesnot need physical contact with vending device. As topup is working with 20
digits' code, the vending process can be integrated with third party payment such as mobile money, E-banking, which vastly expands
the vending channel and brings instant cash flow.
The meter is built with finest galvanized steel and die-casting aluminium and
maximum corrosion resistance . designed for various gas media.STS compliant electronic control unit is added as perfect revenue
protection facility at the same time.
Main Features
Full coverage of G1.6, G2.5 and G4
Compatible with mobile money, e-cash
Topup with 20 digits token code input via keypad
Hybrid Prepaid or post-paid mode
Up to 7 years' battery life
Anti tamper valve shut-off
Optional Valve Leakage Warning
LoRa TM sementech prepared for AMR/AMI smart metering setup
Low credit warning
Low power usage and low failure rate
Key Benefits
Highly secured STS standard
Tamper proof
Instant investment back, sufficient cash flow
Long life and smooth operation molded, convoluted diaphragms
Easy connection to User Interface Unit(UIU) for split type applications
Metrological Parameters
|
Type
|
G1.6
|
G2.5
|
G4
|
||
|
Nominal Flow Rate m³/h
|
1.6
|
2.5
|
4
|
||
|
Maximum Flow Rate m³/h
|
2.5
|
4
|
6
|
||
|
Minimum Flow Rate m³/h
|
0.016
|
0.025
|
0.040
|
||
|
Working Pressure KPa
|
0.5-50kPa
|
|
|
||
|
Maximum Permissible error
|
Qmin
|
|
|
||
|
Standard Compliance
|
OIML R137(2012)/ EN1359:1998/AI:2006
|
|
|
||
|
Pressure Loss kPa
|
<200
|
|
|
||
|
Maximum Reading m³
|
99999.9
|
|
|
||
|
Cyclic Volume dm³
|
1.2
|
|
|
||
|
Weight
|
2.4 kg
|
|
|
||
Vending System
a. Original Vending Process (Recharge Process)
The user go to a vending point (need a computer or other devices installed with our software), pay and get a ticket which printed
a Token (a 20-digit code, generated by our software according to the recharge amount and unique meter ID); The user hold the
ticket, back home and input the Token by the keypad on the prepaid meter, recharge successfully.
a. Original Vending Process (Recharge Process)
The user go to a vending point (need a computer or other devices installed with our software), pay and get a ticket which printed
a Token (a 20-digit code, generated by our software according to the recharge amount and unique meter ID); The user hold the
ticket, back home and input the Token by the keypad on the prepaid meter, recharge successfully.
b. USSD & Mobile Money
We can provide api of our vending system, which you can integrate local USSD system or third mobile payment platform. When the
user pay by USSD or mobile money via phone, our system will get a inform and generate a token and send it to the user by message.
USSD
We can provide api of our vending system, which you can integrate local USSD system or third mobile payment platform. When the
user pay by USSD or mobile money via phone, our system will get a inform and generate a token and send it to the user by message.
USSD
Mobile Money
Our vending system is certificated by STS association from South Africa, The STS prepayment standard is very popular on the Africa
market.
Which means our vending system can not only support our prepaid electricity/water/gas meter, but also can integrate into others
prepaid meter as long as the meters is manufactured according to the STS standard.
Conversely, we can produce STS prepaid meters based on the Customers’ parameters so that their own STS vending system can generate
Token for our meters.
market.
Which means our vending system can not only support our prepaid electricity/water/gas meter, but also can integrate into others
prepaid meter as long as the meters is manufactured according to the STS standard.
Conversely, we can produce STS prepaid meters based on the Customers’ parameters so that their own STS vending system can generate
Token for our meters.
Q: Are you a trade company or a manufacturer?
A: We are a original meter manufacturer and solution provide, we can provide more support for you.
Q: Do you provide samples for testing, free or extra?
A: We can provide samples, but we will charge reasonable cost.
Q: What's paypment terms you accept?
A: Paypal/West Union/ T/T / L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shippment.
Q; How long is your delivery time?
A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
